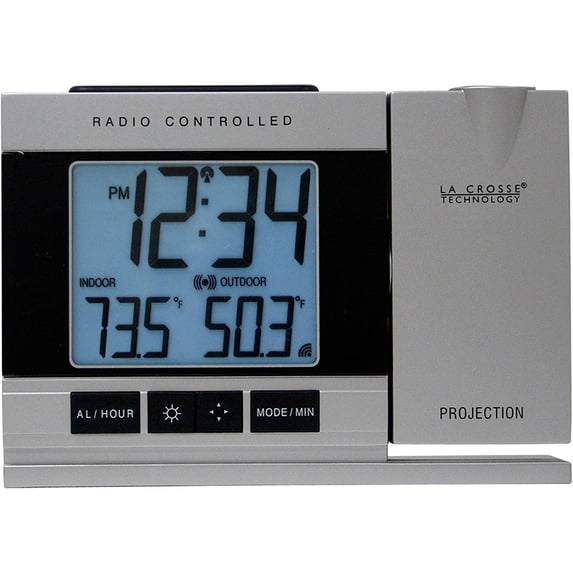

La Crosse Technology WT-5220U-IT Projection Alarm Clock with Indoor/Outdoor Temperature

Know your temperature outside even before you get out of bed! Projection Alarm clock alternates both Time and/or Outdoor Temp F/C on your ceiling or wall with Arm Rotation for Proper Viewing and Auto-Focus. Wireless Temp Sensor transmits within seconds to the clock. Clock receives accurate atomic time for updates and will reset for daylight saving time. Displays indoor temp and date, and has LED backlight and Time Alarm with Snooze.

Automatically adjusts clock to your chosen time zone 25 different settings from 0 GMT +/-12 and resets during Daylight saving time. Have no worries when it's time to reset the clock. Optional manual time setting and adjustable to standard 12 hour or military 24 hour time. WWVB icon indicator displays when atomic signal is received.

Alternate your current time and/or outdoor temperature 3 modes viewable on a wall or ceiling. Automatic projection focus and 180 degrees arm rotation. LED backlight and optional views on lower section of display temperatures, counting seconds, alarm time, or date

Set time alarm to wake or snooze an extra 6 minutes. Alarm icon indicator displays when active.

Monitor the indoor room temperature and receive wireless outdoor temperature from included weather resistant temperature sensor TX37U-IT Transmits from a 330 ft distance. Obstruction from glass, windows, and walls can reduce signal strength, so we recommend testing in a location temporarily for 4 hours before permanent mounting the sensor. Temperature display adjustable to Fahrenheit or Celsius. Outdoor range down to -39.8 F and up to 139.8 F. Signal indicator displays when transmitting sensor is connected.

Includes 6V AC adapter, but requires battery backup of 3 AA alkaline

Wireless IN/OUT Temp F/C

Projects Time or Outdoor Temperature alternating

on Wall or Ceiling in Easy to Read Numbers

Projection and Arm Rotate for Proper Viewing

Automatic Focus of Projection

Atomic Time and Date with Manual Setting

Automatically Updates for Daylight Saving Time On/Off Option

Perpetual Calendar

Time Zone Setting

Time Alarm With Snooze

LED Backlight

Specifications: OUT Temp Range -39.8 F to 139.8 F, IN Temp Range 14 F to 99.9 F

Projection Alarm 3 AA Alkaline Batteries

Not Included or Included 6V AC Power Adapter

Sensor: 2 AA Alkaline Batteries Not Included


Troubleshooting Steps: Proper mounting of the outdoor sensor is Necessary for it to read the correct temperature: Mount the outdoor sensor on a north-facing wall or in any Well shaded area. Under an Eave or deck rail is preferred. If this outdoor sensor is somewhere where the sun can hit it, and feel the extra warmth from the sun it will read warmer than it is really outside: The maximum transmitting range to the projection clock is 330 feet in open air not including walls. Place the display and sensor next to each other with nothing in-between. After 15 minutes insert the batteries into the sensor then plug the AC adapter into the projection clock and the wall outlet. Then put the 3 AA batteries into the projection clock.The temperate should prepopulate on the display, wait 15 minutes to establish a strong connection. For proper communication between the transmitter and display. Have the display and transmitter next to each other with nothing in between with the batteries out. 1. Place two quality brand name AA batteries in the transmitter first. Within 30 seconds of...
