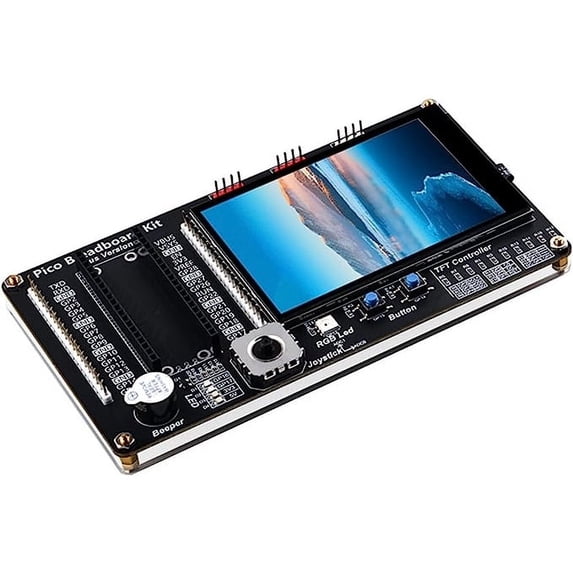

52Pi GPIO Expansion Module with 3.5inch Screen for Raspberry Pi Pico/Pico W

Description

The Pico Breadboard Kit with a 3.5-inch touch screen, mini PSP joystick, RGB light, buzzer, and two buttons is a versatile electronics kit designed for prototyping and experimentation. This compact kit combines various components to create interactive projects and offers a user-friendly interface.

Features

3.5-inch Capacitive Touch Screen: The kit includes a high-resolution touch screen for displaying visual outputs and receiving user input.

Mini PSP Joystick: The built-in mini joystick provides precise analog control for navigating menus and controlling movement in projects.

RGB Light: The kit features an RGB light that can emit various colors, allowing for dynamic visual effects and status indicators.

Buzzer: An integrated buzzer produces audible feedback, enabling sound effects or alerts in your projects.

Two Buttons: The kit includes two buttons for user input, providing additional control options and interactivity.

Label: Drop the jumper, all the information is marked on the PCB and can also be disconnected by removing the 0R resistor.

Specifications

Joystick: Mini PSP joystick for analog control

Light: RGB light for color output

Buzzer: Integrated buzzer for audible feedback

Buttons: Two buttons for user input

TFT Size: 3.5 inches TFT

TFT Resolution: 320x480 Pixels

TFT IC: ST7796SU1 (*May vary with lot*)

TFT Touch Type: Capacitive Touch Screen

TFT communication protocol: SPI protocol

TFT capacitive touch screen communication protocol: I2C protocol

Weight: 0.25kg

Package Size：Appro. 190mm*110mm*25mm
