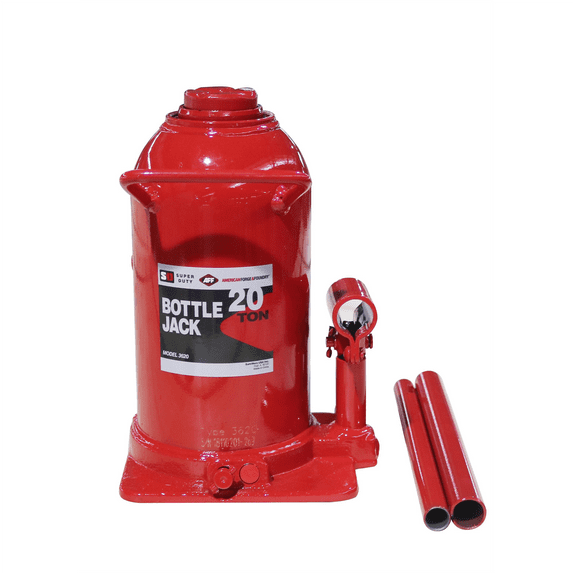

AFF- Bottle Jack - 20 Ton Capacity - Manual - SUPER DUTY

Features and Benefits:

• Color: Red/Black
• Product Type: Bottle Jack
• Capacity (T): 20 Ton
• Power Type: Hydraulic
• Operation Type: Manual
• Minimum Height (in.): 9.45"
• Maximum Height (in.): 17.81"
• Ram Lift (in.): 5.9"
• Extension (in.): 2.36"
• Saddle Diameter: 1.8"
• Base Length (in.): 6.4"
• Base Width (in.): 5.6"
• Handle Length (in.): 16.5"
• Number of Handle Pieces: 2
• Oil Reservoir Assembly: Fully Welded - Collar & Base
• Base Type: Drop Forge
• Release Type: Cross Head Valve
• Working Air Pressure: N/A
• Duty Level: Super Heavy Duty
• Weight (lb.): 20 Lbs.
• Certification: ASME/PASE 2019
• The AFF SUPER DUTY bottle jacks are heat treated in critical stress areas to ensure long life and performance. They are ideal for use in automotive, truck, farming, mining, and much more.
• Fully welded at top nut and base on oil reservoir for ultimate leak free usage
• Drop forged alloy steel construction for reliable strength.
• Made with centered pumps and rams with heat treated pistons
• Saddles are made of machine hardened steel for unsurpassed strength.
• Built-in bypass system prevents accidental overload and provides added operator safety.
• Longer wear life due to internally machined oil passages, smooth bearing surfaces and tighter tolerances
• Comes with carrying handle.



American Forge & Foundry?s Bottle Jacks include some of the most advanced features available today and provide countless solutions even in the toughest working conditions. Choose from our Heavy-Duty series for standard use or from our Super Duty series for more rigorous applications.
