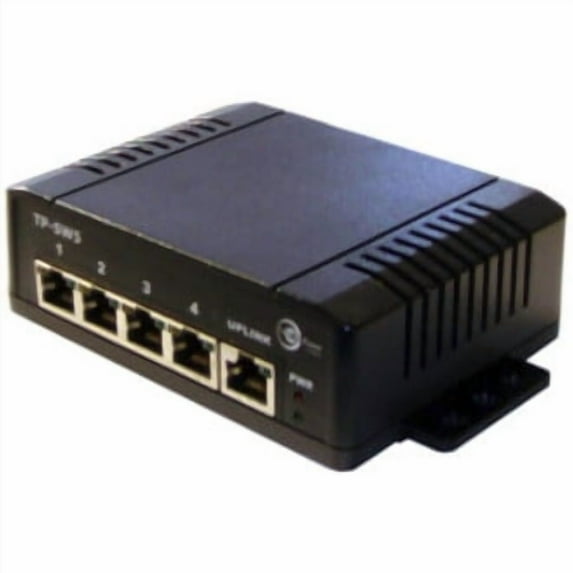

Hero image 0 of Tycon Power Universal Voltage 10/100 POE Switch, 0 of 2

Tycon Power Universal Voltage 10/100 POE Switch

(No ratings yet)

Key item features

Universal Voltage 10/100 POE Switch
DIN Rail Mounting Kit
CE
FCC
802.3
802.3u
802.3x

Specs

Brand
Tycon Systems
Network switch type
Unmanaged Switch, Ethernet Switch
Number of ports
4
Features
Uplinking Capability
Number of layers
2
Form factor
Rackmount

Current price is $159.99

Price when purchased online

Free shipping
Free 30-day returns

Walmart Accident Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $24.00

4-Year Plan - $34.00

How do you want your item?

Columbus, 43215

Arrives between Apr 11 - Apr 14

Sold and shipped by SPOGLINK

4.6 stars out of 5, based on 5 seller reviews(4.6)

Report an issue with this seller

Free 30-day returns

Other sellers

$164.59

+Free shipping

Shipping, arrives by Fri, Apr 10 to Columbus, 43215

Sold and shipped by UnbeatableSale

Free 30-day returns

About this item

Product details

General Information

The SW5 Series Power Over Ethernet (POE) switches offered by Tycon Power Systems are fully automatic high speed 5 port Ethernet switches with up to 2A of POE power per port. The switch comes in 4 models:
TP-SW5G-D: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 48VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). 35W per port.
TP-SW5G-24: IEEE802.3af/at Compliant 48VDC 10/100/1000MB POE Switch. Switch accepts 12-36VDC power via a wire terminal connector on the back of the Switch or via 48VDC POE into the 802.3af/at compliant uplink port (90W max). Perfect for remote solar/battery systems. 35W per port.
TP-SW5G-NC: Universal Voltage 10/100/1000MB POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the switch. Also accepts 12-57VDC (1A max) Passive POE input on port 5. 1A per port.
TP-SSW5-NC: Universal Voltage 10/100 POE Switch. Switch accepts universal voltage (12-57VDC) via the wire terminal connector on the back of the Switch. This model is very compact at only 4"x5"x1.5". 2A per port.

Interfaces/Ports

Total Number of Network Ports:	5
Token Ring Port:	No
LRE Port:	No
Uplink Port:	Yes
Bypass:	No
Modular:	No
Management Port:	No
USB:	No
Number of PoE (RJ-45) Ports:	1
Stack Port:	No
Number of Network (RJ-45) Ports:	4
Port/Expansion Slot Details:	5 x Fast Ethernet Network

Media & Performance

Media Type Supported:	Twisted Pair
Twisted Pair Cable Standard:	Category 5
Ethernet Technology:	Fast Ethernet
Network Technology:	10/100Base-TX

Network & Communication

Layer Supported:

Management & Protocols

Manageable:

Power Description

PoE (RJ-45) Port:	No
Power Source:	Power Adapter

Physical Characteristics

Form Factor:	Rail-mountable
Height:	1.6"
Width:	4.6"
Depth:	3.5"
Weight (Approximate):	6.42 oz

Miscellaneous

Package Contents:

Universal Voltage 10/100 POE Switch
DIN Rail Mounting Kit

Certifications & Standards:

IEEE Standards:

802.3
802.3u
802.3x

Warranty

Limited Warranty:

2 Year

Universal Voltage 10/100 POE Switch
DIN Rail Mounting Kit
CE
FCC
802.3
802.3u
802.3x
