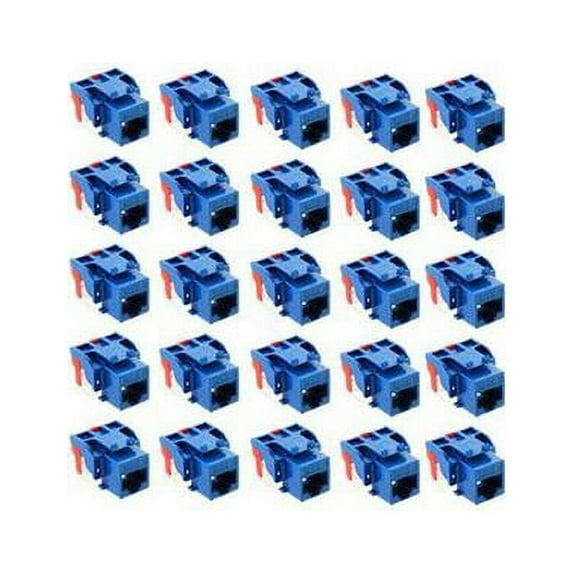

ICC IC107L6CBL CAT6 RJ45 Keystone Jack, EZ Style, 25-Pack, Blue

Overview

The 25-pack EZ® Category 6 modular jacks, RJ-45 keystone jacks, are 8-position 8-conductor (8P8C) and are packaged in bags with a reseal able strip allowing the bags to be reused multiple times preventing loss or mixing of colors or types of connectors. The bags have a clear lower area allowing for easy part identification.

Feature

? CAT 6 rated connectors provide excellent performance for data networks requiring maximum speed and bandwidth
? PCB technology provides maximum performance and superior signal quality
? Enhanced crosstalk cancellation reduces return loss and improves performance by rejecting noise and unwanted signals
? Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements
? Designed with in-line 110 IDC, in-sequence termination reducing termination time
? Terminate with 110 punch down tool ICACSPDT00
? One piece termination cap allows for a quick and easy termination
? Includes an integrated TIA-568A/B color wiring diagram
? Backwards compatible to all lower rated category components
? Compatible with all ICC configurable faceplates, inserts, surface mount boxes, and blank patch panels
? Compatible with all ICC furniture faceplates, Elite bezels, and Elite surface mount boxes
? Used with all Category 6 patch cords
? Available in black, blue, ivory, orange, red, and white
? Installation instructions included
? UL listed

Specification

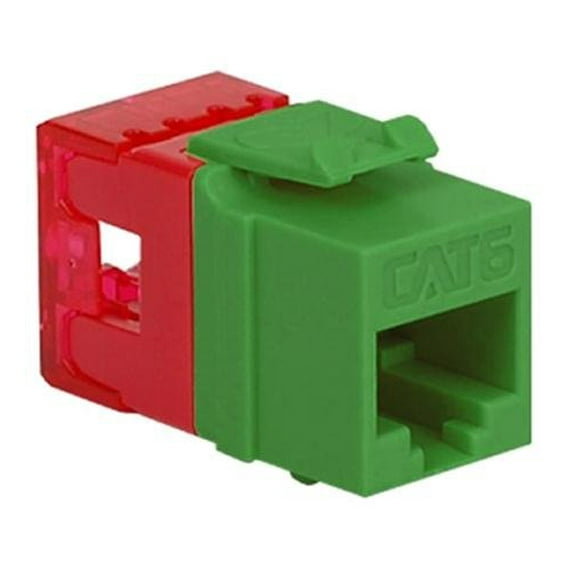

1. CAT 6 Module:
A. Electrical:
Current rating: 1.5 amps
Insulation resistance: 500 mohms min.
Contact resistance: 20 mohms max.
DC resistance: 0.1 ohm max.
Transmission performance exceeds Category 6 connecting hardware requirements specified in ANSI/TIA-568-C.2 when used with compatible horizontal cable
B. Mechanical:
Plug insertion life: 750 cycles min.
Plug and jack contact force: 100 grams min. using FCC approved plug
Plug retention force: 30 lbs min.
Temperature: -40° to 150° F (-40° to 68° C)
C. Physicals:
Housing: ABS, UL 94V-0
Jack wiring: 50 micro inches of gold over 100 micro inches of nickel
Connector: insulation displacement connector (IDC); accepts 22~24 AWG solid wire
D: Colors: XX: BK-Black, BL-Blue, GN-Green, IV-Ivory, OR-Orange, RD-Red, & WH-White

2. Termination cap:
A. Material: PC, UL 94V-0
B.Color: Clear Red
