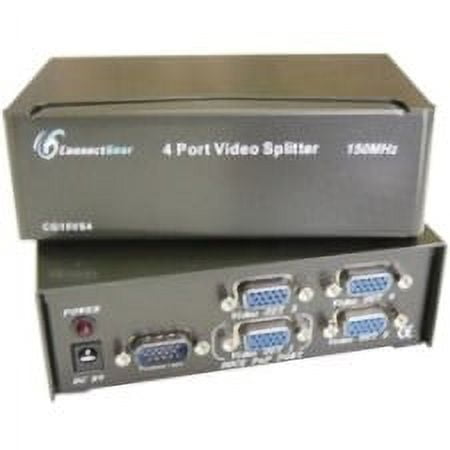

SVGA VGA Splitter 4 Port 1 in 4 out Amplifier Box 150MHz, 1 Video into 4 Monitor

Name: SVGA VGA Splitter 4 Port 1 in 4 out Amplifier Box 150MHz, 1 Video into 4 Monitor
Brand: The Wires Zone
SKU: 408300040
Price: 19.95 USD
Availability: InStock

(No ratings yet)

Key item features

SVGA VGA Splitter 4 Port 1 in 4 out Amplifier Box 150MHz, 1 Video into 4 Monitor

MPN: CG15VS4
Condition: New

Supports up to 4 VGA, SVGA, XGA and Multi Sync monitors
One video input to 4 video outputs
Amplifies video signals and increases transmission distance up to 165 feet (50m)
Compact design with all metal housing
150MHz high bandwidth
Support up to 1600 x 1200 video resolution
RoHS compliant

Specifications
Model No. CG15VS4
Cable Distance ( device to monitor): 165ft / 50m (max.)
Signal Type: VGA, SVGA, XGA, Multi Sync
Video Input Connectors: 1 x HDB-15 Male
Operating Temperature: 0-40 degrees (celsius)
Storage Temperature: -5-70 degrees (celsius)
Humidity: 0-80%RH, Non-condensing
Housing: Metal
DC Power Adapter: 9V
Max. Resolution: 1600 x 1200
Bandwidth (-3dB): 150MHz
Video Output Connectors: 4 x HDB-15 Female
Daisy Chainable: Yes
DDC, DDC2 support: Yes on port 1
Weight: 0.49 kg / 1.08lbs
Dimensions: 13cm x 7.5cm x 4.2cm (5.12" x 3" x 1.65")

What's in the box
One Video Splitter
One Power Adapter
One User Manual
