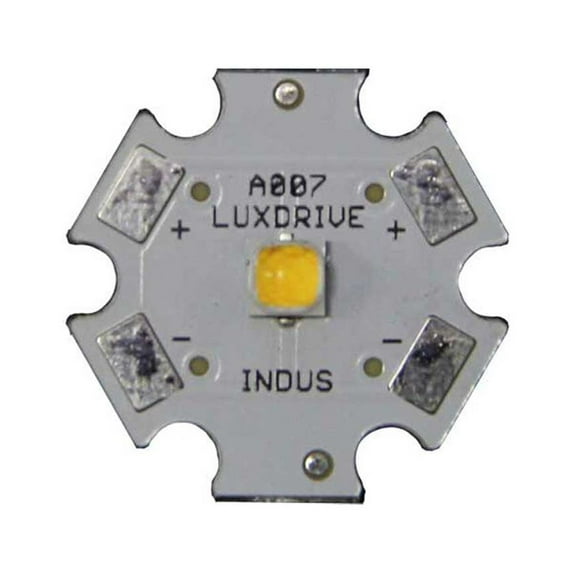

Cree XLamp XP-L High Density LED Star - 3000K

Cree XLamp XP-L High Density (HD) LEDs are the best performing diode in Cree's HD class of LEDs. This emitter brings the next generation of lumen output and efficacy in the compact XP footprint (3.45mmx3.45mm). The XP-L is optimized to deliver maximum lumen output in a small form factor. This enables lighting manufacturers to improve the performance of any XP based lighting design, create smaller and less expensive systems, as well as develop new lighting solutions that otherwise were not possible! We offer the XP-L in two metal core printed circuit board (MCPCB) versions: a single (1-Up: 1 LED) and triple (3-Up: 3 LEDs). The 1- Up is a single XP-L LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up is three (3) XP-L LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for secondary carclo optics and a center hole for wires or securing the LED star to a heat sink.
