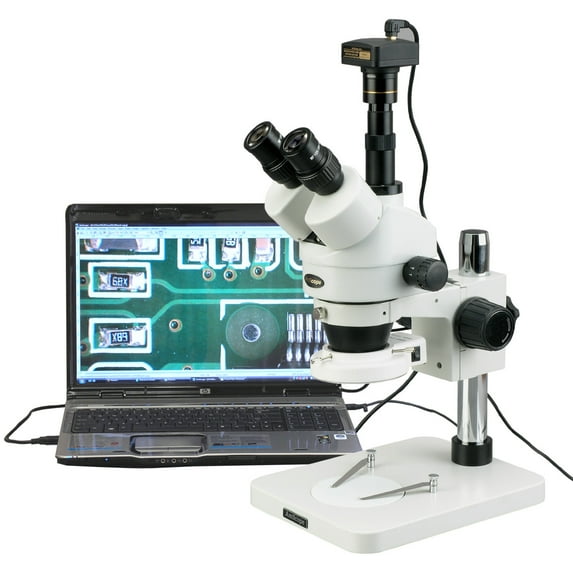

AmScope 3.5X-180X Manufacturing 144-LED Zoom Stereo Microscope with 10MP Digital Camera New

(No ratings yet)

Key item features

Optical Magnification: Features a 3.5X-180X super widefield zoom magnification power with crystal clear images and a 52:1 zoom ratio.
Illumination System: Equipped with a 144-LED compact ring light offering variable, cool, even, and bright illumination with a built-in dimmer.
Trinocular Head: Includes a 360-degree rotatable 45-degree inclined trinocular head for simultaneous viewing and camera capabilities.
Digital Imaging: Comes with a 10MP USB digital camera for capturing still images and video, compatible with Windows, Mac, and Linux.
Ergonomic Design: Provides an 8" (200mm) working distance, 30mm super widefield high-eyepoint eyepieces, and adjustable interpupillary distance for comfortable viewing.
Software Capabilities: Windows software offers image-development, measurement tools, image-stitching, and extended-depth-of-focus features.
Robust Construction: Built with full optical glass elements, precise ground glass lenses, and full metal chrome-plated mechanical components.
Versatile Applications: Ideal for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and biological laboratory applications.

Generated by AI

Specs

Standard optical microscope type
Stereo
Microscope head type
Trinocular
Maximum magnification
180X
Minimum magnification
3.5X
Rec. use
Biological
Features
LED Lights

Price when purchased online

Report an issue with this seller

More seller options (1)

Starting from $974.99

About this item

Product details

This is a trinocular stereo microscope with a 144-LED compact ring light and an 10MP USB digital camera. The microscope has a super widefield optical system that provides a very large zoom magnification power (52:1) which offers a large working distance (8", 200mm). The trinocular port uses the third port for camera capabilities, or a third party to view as well, giving you the remaining two ports to view your specimen. The 144-LED ring light has a compact design with a built-in dimmer, providing cool, even and bright LED illumination. The digital camera captures still images and video, and allows you to view a live stream on your PC. With software available for Windows, Mac, and Linux, it's a multi-platform imaging solution. The included Windows software offers image-development and measurement tools, as well as advanced compositing features such as image-stitching and extended-depth-of-focus. Independent preview and capture resolutions allow you to view high-speed video while capturing high-definition images. For Mac and Linux, there is a lite version with limited processing features. This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in electronic and semiconductor industries. It is also the right microscope for biological laboratory applications that require low heat release. It is OEM'd by the same technicians and on the same production line that makes optical instruments for Leica, Zeiss, Nikon and Olympus. This microscope is in a factory sealed box.

Features:

A perfect LED stereo inspection microscope with a 10MP color digital camera

Variable, cool, even and bright 144-LED ring illumination

3.5X-180X super wide zoom magnification power

8" (200mm) extremely large working distance

High resolution with great flatness and contrast, giving sharp and clear images

Trinocular head with 45-degree inclined 360-degree swiveling eye tubes

30mm SUPER widefield high-eyepoint eyepieces with 20 mm field of view

Sharp stereo erect images with a wide field of view

Crystal clear, original true color microscope images

Dual eye tubes with adjustable diopters

Contemporary table stand

Accurate alignment reduces eye strain for longer periods of viewing

Full optical glass elements

Precise ground glass lenses

Full metal chrome-plated mechanical components

Adjustable interpupillary distance

Rubber eyeguards included

Manufactured Under ISO 9001 Quality Control Standard

Excellent Five (5) Year Factory Warranty

Specifications:

Head: 360 degree rotatable 45 degree inclined trinocular

Eyepiece: 30mm super widefield high-eyepoint WH10X/20MM and WH20X/10MM

Barlow Lens: 0.5X and 2.0X

Zoom Range: 0.7X-4.5X

Diopter Adjustment: +/- 5dp

Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)

Working Distance: 8" (200mm)

Illumination: 144-LED compact ring light

Power Input: 110-240V, 50-60HZ, automatic switching

Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)

Round Plate: 3-3/4" (95mm) in diameter

Accessories: a pair of eye-guards

Camera Specifications:

Sensor: Aptina MT9J003

Sensor Type: CMOS

Sensor Size: 6.44x4.616mm

px Size: 1.67

Resolution: 10.0MP

Frame Rate: 1.9@3584x2748, 8@1792x1374, 27@896x684

Sensitivity: 0.31 V/lux-sec

Compatibility: Windows (32/64 bit) XP/Vista/7/8/10, Mac OSX, Linux

Software Specifications:

OS Requirements: Windows (32/64 bit) XP/Vista/7/8/10, Mac OS 10.8+, Linux kernel 3.13+

Hardware Requirements: Intel Core2 2.8GHz or comparable processor, 2GB RAM, USB2.0 port

3.5X-180X Super widefield zoom magnification power with crystal clear images
2-1/2" (65mm) super widefield view and 8" (200mm) working distance
144-LED ring light with a compact design and built-in dimmer
