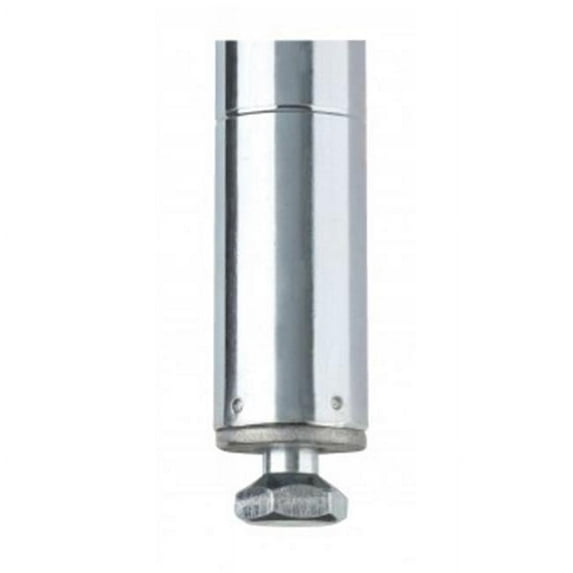

Focus Foodservice FGSTK063CH 63 in. Staked post - chromate

2 Shelf consists of cage, plus 2 ea Chromate shelves, staked Chromate posts, aluminum split sleeves, and an aluminum truck dolly w/5 in. polyurethane wheels. 3 Shelf consists of cage, plus 3 ea Chromate shelves, staked Chromate posts, aluminum split sleeves, and an aluminum truck dolly w/5 in polyurethane wheels. 4 Shelf consists of cage, Chromate shelves,mobile Chromate posts and 1 set of 5 in. casters (2 swivel, 2 swivel w/brake & 4 bumpers).

• Finesh - Chromate
• Pack of 4
• Size - 63 in.

• Step 1 - Unpack carton, identify and confirm quality of components.
• Step 2 - Before assembly of shelving unit to Truck Dolly, unscrew the leveling feet on the posts.
• Step 3 - Attach the posts to Truck Dolly frame, using leveling feet and washers and tighten down.
• Step 4 - Assemble shelving unit with at least three shelves. The top shelf should be mounted at the top groove of the post.
• The bottom shelf on a 74 in. post, in order to be inside the security enclosure, must be 13 in. above the dolly. If using
• a 63 in. post and the bottom shelf should be located on the second groove from the bottom. Third shelf should be
• placed in the middle of the posts.
• Step 5 - Remove the plastic top caps from all four posts.
• Step 6 - Install the steel inserts into the holes where the plastic top caps were. Make sure steel insert is set all the way into the top of post. You may use a rubber mallet to secure the inserts.
• Step 7 - Assemble the side panels with the loops on the bottom facing inward. Tilt the panel so the loops lock around the
• posts on both ends and then slide down so the loops are on the posts. Align holes in guide plates
• with steel insert at the top of the posts. Partially screw in bolt through guide plate into top of the front post. This
• will keep side panel in place during the assembly process. Repeat with other panel.
• Step 8 - Assemble left side back panel first. Place the wires that are facing downward into the loops on each side panel.
• Step 9 - Repeat the same for the right side back panel as in Step 8.
• Step 10 - Secure back panels with back panel assembly hardware. Install as shown. For greater security,
• assemble uppermost plates through top shelf. Place additional securing clip at the bottom of the back panels.
• (Push down so that the 2 prongs of the clip wrap over the truss of the bottom shelf.)
• Step 11 - Install the left front door assembly, by placing the side wires into the loops of the side panels.
• Step 12 - Repeat with right front door assembly as in Step 11.
• Step 13 - Line up holes of the guide plates in the top of the panels over the steel inserts in the top of the posts and screw
• in bolts into posts.Tighten down bolts in front posts.
