B381 Century 2 HP SPL 3450 RPM M56 Frame 115/230V Air Compressor Motor - Century #B381
(No ratings yet)
Key item features
- 2 HP SPL 3450 RPM, 15.0/7.5 amps, 115/230V 60hz.
- Open Drip Proof - Ball Bearings - Service Factor 1.0
- Non-Reversible - CCW Rotation facing the shaft
- M56 Frame; NEMA 56 Frame - Flat Rigid base mount
- Shaft: 5/8" diameter x 1 7/8"

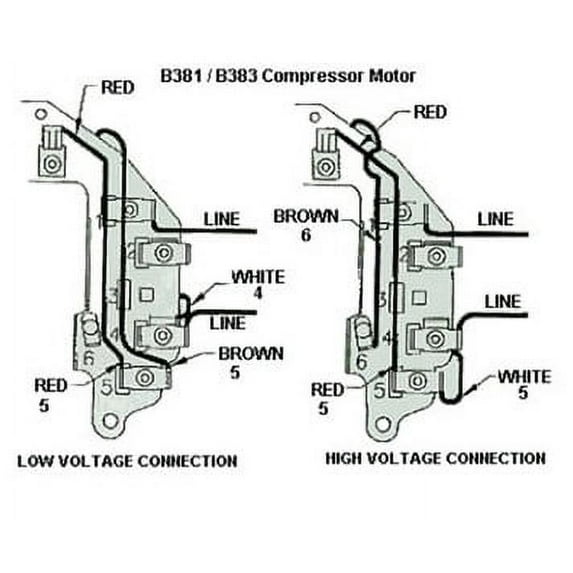

This replacement compressor motor is commonly used on the small "home/shop" air compressors. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3" x 5" bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Overall motor length 11.34"; Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run. Dayton 48Y358
Specs
- Horsepower2 HP
- Power typeAir
- Number of stages1-Stage
- BrandCentury Electric Motor
- Volts240 V
- Amps15.0 Amps
Current price is USD$319.82
Price when purchased online
Out of stock
How do you want your item?
Out of stock
Similar items you might like
Based on what customers bought
VEVOR 6.6 Gallon, Portable Air Compressor 1 HP, Oil Free, Steel Tank 750W, Pancake 115 Psi, Ultra Quiet for Home Repair, Tire Inflation $172.99
Sponsored$17299current price $172.99VEVOR 6.6 Gallon, Portable Air Compressor 1 HP, Oil Free, Steel Tank 750W, Pancake 115 Psi, Ultra Quiet for Home Repair, Tire Inflation
15 out of 5 Stars. 1 reviewsKFFKFF 6.6 Gallon Air Compressor, 1 HP Mobile Air Compressor, 750W Oil-Free Steel Tank, 115 PSI Pancake Air Compressor, Exceptionally Quiet for Household Fixes and Tire Pumping $175.99 $175.99/ca
Sponsored$17599current price $175.99$175.99/caKFFKFF 6.6 Gallon Air Compressor, 1 HP Mobile Air Compressor, 750W Oil-Free Steel Tank, 115 PSI Pancake Air Compressor, Exceptionally Quiet for Household Fixes and Tire Pumping
Save with
Shipping, arrives in 3+ daysBest seller Hyper Tough 20 Gallon 1.8 HP Vertical Quiet air compressor 150psi $229.00
Best seller
$22900current price $229.00Hyper Tough 20 Gallon 1.8 HP Vertical Quiet air compressor 150psi
104.7 out of 5 Stars. 10 reviewsReduced price 8 Gallon Ultra Quiet Air Compressor, 1.5HP 4.52 CFM, Max 115 PSI Oil-Free Air Compressor Tank, 110V/60hz, 70dB Air Compressor for Car Repair, Spray Painting, Woodwork Nailing $143.99 Was $159.99
Reduced price
3 optionsAvailable in additional 3 options$14399current price $143.99, Was $159.99$159.998 Gallon Ultra Quiet Air Compressor, 1.5HP 4.52 CFM, Max 115 PSI Oil-Free Air Compressor Tank, 110V/60hz, 70dB Air Compressor for Car Repair, Spray Painting, Woodwork Nailing
184.1 out of 5 Stars. 18 reviewsVIAIR 450P-RV Enhanced Flow Automatic Portable Compressor $432.88
$43288current price $432.88VIAIR 450P-RV Enhanced Flow Automatic Portable Compressor
24.5 out of 5 Stars. 2 reviews4.5HP Ultra Quiet 13 Gal Oil-Lubricated Air Compressor with Wheels $248.99
$24899current price $248.994.5HP Ultra Quiet 13 Gal Oil-Lubricated Air Compressor with Wheels
13 out of 5 Stars. 1 reviewsKFFKFF Air Compressor, 10 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI, Oil-Free, Max 125PSI, 78dB Quiet Portable Compressor for Auto Repair, Tire Inflation, Spray Painting $207.92 Was $219.99
SponsoredNow$20792current price Now $207.92, Was $219.99$219.99You save $12.07You save$12.07KFFKFF Air Compressor, 10 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI, Oil-Free, Max 125PSI, 78dB Quiet Portable Compressor for Auto Repair, Tire Inflation, Spray Painting
Shipping, arrives in 3+ daysKFFKFF Air Compressor with 4.6 Gallon Steel Tank, 1HP & 2.2 CFM@90 PSI, Oil-Free Operation & Maximum 120PSI, 80dB Quiet Portable Unit for Auto Maintenance, Tire Filling, and Spray Paint Jobs $186.99
Sponsored$18699current price $186.99KFFKFF Air Compressor with 4.6 Gallon Steel Tank, 1HP & 2.2 CFM@90 PSI, Oil-Free Operation & Maximum 120PSI, 80dB Quiet Portable Unit for Auto Maintenance, Tire Filling, and Spray Paint Jobs
Shipping, arrives in 3+ daysBest seller XtremepowerUS 10 Gallon Ultra Quiet Portable Air Compressor, 3.5HP, 125 PSI, Oil-Lubricated, 120V $179.95
Best seller
4 optionsAvailable in additional 4 options$17995current price $179.95XtremepowerUS 10 Gallon Ultra Quiet Portable Air Compressor, 3.5HP, 125 PSI, Oil-Lubricated, 120V
1984.1 out of 5 Stars. 198 reviewsStealth Ultra Quiet 12 Gallon 150 PSI Portable Electric Oil-Free Air Compressor, Professional Series $269.99
$26999current price $269.99Stealth Ultra Quiet 12 Gallon 150 PSI Portable Electric Oil-Free Air Compressor, Professional Series
74.3 out of 5 Stars. 7 reviewsEAYSG 8 Gallon Ultra Quiet Air Compressor, 1.5HP 4.52 CFM Oil-Free, 115 PSI Max, 110V Portable Air Compressor with Tank for Car Repair, Spray Painting, Nailing $145.99
3 optionsAvailable in additional 3 options$14599current price $145.99EAYSG 8 Gallon Ultra Quiet Air Compressor, 1.5HP 4.52 CFM Oil-Free, 115 PSI Max, 110V Portable Air Compressor with Tank for Car Repair, Spray Painting, Nailing
83.8 out of 5 Stars. 8 reviewsCOMPRESSOR, 1/3HP R290 120V/60 ( FFU130U RF CMP1702 - Genuine OEM Replacement Part $381.14
$38114current price $381.14COMPRESSOR, 1/3HP R290 120V/60 ( FFU130U RF CMP1702 - Genuine OEM Replacement Part
KFFKFF Air Compressor, 8 Gallon Tank, 1HP 2.2 CFM@90 PSI, Oil-Free, Max 120PSI, 80dB Quiet, Portable for Car Maintenance, Tire Filling, Painting $169.99
$16999current price $169.99KFFKFF Air Compressor, 8 Gallon Tank, 1HP 2.2 CFM@90 PSI, Oil-Free, Max 120PSI, 80dB Quiet, Portable for Car Maintenance, Tire Filling, Painting
KFFKFF 1 Gallon Steel Tank Air Compressor, 1HP Motor with 1.5 CFM at 90PSI, Oil-Free Design, Max Pressure 120PSI, 78dB Quiet Operation, Ideal for Auto Repairs, Tire Inflation, and Spray Painting $102.99 Was $114.90
SponsoredNow$10299current price Now $102.99, Was $114.90$114.90You save $11.91You save$11.91KFFKFF 1 Gallon Steel Tank Air Compressor, 1HP Motor with 1.5 CFM at 90PSI, Oil-Free Design, Max Pressure 120PSI, 78dB Quiet Operation, Ideal for Auto Repairs, Tire Inflation, and Spray Painting
Save withShipping, arrives in 2 daysVEVOR Air Compressor, 10 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI Oil Free Air Compressor & Max. 125PSI Pressure, 78dB Ultra Quiet Portable Compressor, for Auto Repair, Tire Inflation, Spray Painting $245.90
$24590current price $245.90VEVOR Air Compressor, 10 Gallon Steel Tank, 2HP 5.3 CFM@90 PSI Oil Free Air Compressor & Max. 125PSI Pressure, 78dB Ultra Quiet Portable Compressor, for Auto Repair, Tire Inflation, Spray Painting
15 out of 5 Stars. 1 reviewsGoodyear 10 Gallon 175 PSI Super Quiet Oil Free Electric Air Compressor $349.00
$34900current price $349.00Goodyear 10 Gallon 175 PSI Super Quiet Oil Free Electric Air Compressor
23 out of 5 Stars. 2 reviews6 Gallon 150 PSI Electric Pancake Air Compressor with 13-Piece Accessory Kit $179.00
$17900current price $179.006 Gallon 150 PSI Electric Pancake Air Compressor with 13-Piece Accessory Kit
Bostitch BXCM2KIT 6 Gallon 150 PSI Electric Pancake Air Compressor with 2-Nailer Kit $290.49
$29049current price $290.49Bostitch BXCM2KIT 6 Gallon 150 PSI Electric Pancake Air Compressor with 2-Nailer Kit
KFFKFF 6 Gallon Portable Air Compressor, 1.7HP 2.3CFM @ 90PSI, 150PSI Max Pressure, Oil-Free Tank for Tire Inflation, Painting, and Woodworking, 120V $146.99
Sponsored$14699current price $146.99KFFKFF 6 Gallon Portable Air Compressor, 1.7HP 2.3CFM @ 90PSI, 150PSI Max Pressure, Oil-Free Tank for Tire Inflation, Painting, and Woodworking, 120V
Shipping, arrives in 3+ days3HP Electric Air Compressor Pump with 3 Cylinder Heads, Low Noise, High Efficiency, and Fast Heat Dissipation for Industrial Use – Includes 3 Air Filter Mufflers $154.40
$15440current price $154.403HP Electric Air Compressor Pump with 3 Cylinder Heads, Low Noise, High Efficiency, and Fast Heat Dissipation for Industrial Use – Includes 3 Air Filter Mufflers
About this item
Product details
Open Drip Proof - Ball Bearings - Service Factor 1.0
- 2 HP SPL 3450 RPM, 15.0/7.5 amps, 115/230V 60hz.
- Open Drip Proof - Ball Bearings - Service Factor 1.0
- Non-Reversible - CCW Rotation facing the shaft
- M56 Frame; NEMA 56 Frame - Flat Rigid base mount
- Shaft: 5/8" diameter x 1 7/8"
This replacement compressor motor is commonly used on the small "home/shop" air compressors. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3" x 5" bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Overall motor length 11.34"; Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run. Dayton 48Y358
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it. Â
Specifications
Horsepower
2 HP
Power type
Air
Number of stages
1-Stage
Brand
Century Electric Motor
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
