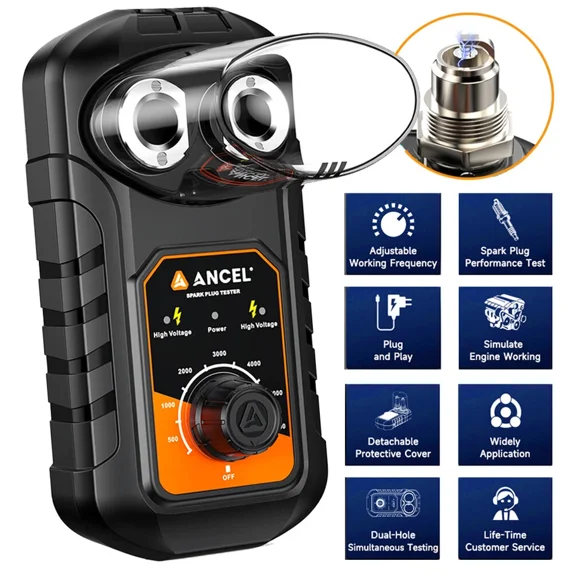

ANCEL Newest Spark Plug Tester Dual Hole Diagnostic Gasoline Car Ignition Analyzer Auto Diagnostic Scanner for Car Ignition System

ANCEL Car Spark Plug Tester is for testing the performance and strength of spark plugs. The product simulates actual engine conditions and works up to 6000rpm. It is compatible with all spark plug tests for crankshaft engines and motorcycles on the market. It can also test two holes at the same time and is designed with a protective cover to ensure the safe operation of maintenance personnel during the test.

🌈Why Dual Hole?

With two slot,this spark plug tester can test and compare the performance and ignition spark intensity of the two spark plugs at the same time,make an accurate judgment the condition of the spark plugs and replace the broken spark plugs for better engine performance in time.It saves time and you save the cost of replacing a good spark plug if you use this tool.

🌟Function of the auto spark plug tester

🚩 Double hole testing and time savings

The ANCEL car spark plug tester allows the simultaneous testing of two holes as well as analog engine work, which is significantly more efficient and time-saving.

🚩 Operating frequency from 0 to 6000 rpm

The ANCEL spark plug tester has an adjustable operating frequency from 0 to 6000 rpm. It can be adjusted as needed.

🚩 Versatile

Spark plugs for 12 V petrol vehicles, input voltage 100-240 V.

🚩 Easy operation via plug-and-play

Easy operation via plug-and-play. The control light intuitively indicates the status of the spark plug.

🛠️Work Steps

1. Insert the spark plug into the opening 1 or 2 of the test device. To compare the new and the old spark plug, insert the new spark plug in opening 1 and the old one in opening 2.
2. Connect the device to the power supply.
3. Turn the ignition switch 4 clockwise to turn on the test device. Display 3 is on. The test device now operates at 1000 rpm.
Turn the ignition switch 4 clockwise again to set the operating frequency between 1000 and 6000 rpm.
The higher the frequency, the stronger the spark.

✔️Safety and Security

This spark plug tester and coil tester comes with a clear protective cover that shields you during testing, while still letting you view the spark results with ease. Focus on the task at hand without worrying about accidental sparks.

Note:

1. Please turn off the power supply before using the spark plug.
2. The spark plug tester is a high voltage tester. Therefore, do not touch the spark plug with your hand during work to avoid dangers.
3. Only suitable for 12-V petrol vehicles.

✔️Built-in Indicator Light

Designed with a power indicator and two high-volate signal indicators, which allows for a more intuitive display of the spark plug test status, ensuring real-time monitoring of its proper functionality.

⚙️Specifications:

Form: Spark plug tester
Input: 100–240 V AC
Outer length: 1 m
Housing size: 145 x 90 x 114 mm
Power supply: Power supply
Power supply: Output: 12 V, 1 A DC
Suitable for 12 V gasoline spark plugs
Application: Testing of spark plug power and ignition intensity

🎁Packing List:

1 x ANCEL spark plug test main unit
1 x Packaging
1 x Instruction manual
1 x Power supply
