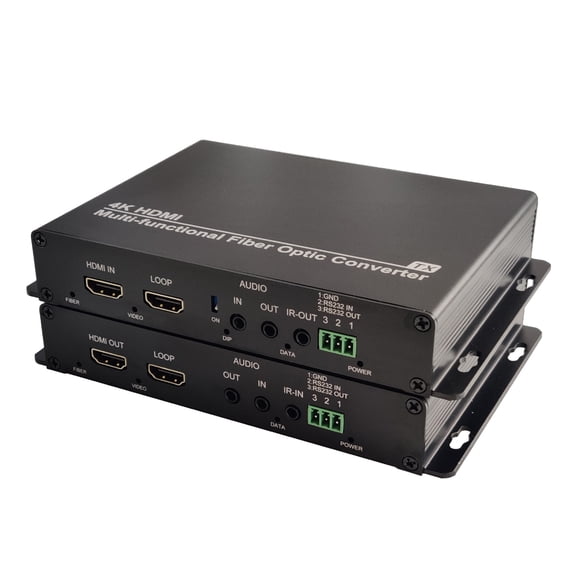

Transwan 4K HDMI Over Fiber Extender with 3.5mm Stereo Audio & IR Infrared & RS232 Over SM Fiber 10 Kilometers, Max 4K @ 30Hz, HDCP Compliance (Over 1 core Single-Mode Fiber)

Hero image 0 of Transwan 4K HDMI Over Fiber Extender with 3.5mm Stereo Audio & IR Infrared & RS232 Over SM Fiber 10 Kilometers, Max 4K @ 30Hz, HDCP Compliance (Over 1 core Single-Mode Fiber), 0 of 6

Transwan

Transwan 4K HDMI Over Fiber Extender with 3.5mm Stereo Audio & IR Infrared & RS232 Over SM Fiber 10 Kilometers, Max 4K @ 30Hz, HDCP Compliance (Over 1 core Single-Mode Fiber)

Name: Transwan 4K HDMI Over Fiber Extender with 3.5mm Stereo Audio & IR Infrared & RS232 Over SM Fiber 10 Kilometers, Max 4K @ 30Hz, HDCP Compliance (Over 1 core Single-Mode Fiber)
Brand: Transwan
SKU: 1767254890
Price: 409 USD
Availability: InStock

(No ratings yet)

Key item features

Features:

Maximum support 4096*2160@30Hz, be backward compatible; 10KM over Dual or Single Single-mode Fiber.
Support HDCP 1.4 and EDID; Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0; Support DDC CEC HPD signal
Support 4K HDMI video with loop-out
Support 1 channel reverse IR infrared transmission; Support 1 channel bidirectional independent 3.5 stereo audio, forward support audio embedding / unembedding function; Support 1 channel bidirectional full-duplex RS232
with SFP module, plug and play, no software drivers needed.

Note:

Connector Types： 3.5mm stereo audio socket, RS232, 4K @ 30 HDMI Connector

Specs

Optics

Wavelength: 1310-1550nm

Bit rate: 10Gbps

Tx power: ＞-5db

Rx sensitivity: ＞-14db

Fiber connector: 1 x LC (Default), 2 x LC optional

Video

Video bandwidth: 10Gbps

Maximum resolution: 4096*2160@30Hz backward compatible

Maximum pixel clock: 297Mhz

Effective cable length: 10 Meters

Physical interface: HDMI female

Audio

Sampling frequency: 48K

Sampling depth: 24bit

Dynamic bandwidth: 96db

Total harmonical distortion (THD): -88db

Signal to noise ratio（SNR): 96db

Audio input/output impedance: 600Ω

Signal level: VPP 3.5V

Physical interface: 3.5mm stereo audio socket

Signal type: stereo audio

Optical current: 200~1030ｕA (Condition: IF=4mA,VCE=3.5V)

Peak wavelength: 940nm (Condition: 1F=20mA)

Spectrum voltage: 80nm (Condition: 1F=20mA)

View angle: ±30Deg (Condition: 1F=20mA)

Forward voltage: 1.2~1.6V (Condition: 1F=20mA)

Reverse current: 10ｕA (Condition: VR=5V)

RS232 (3-wire system, full duplex) index

Baud rate ： 256000Hz downward compatibility

Data bits： 8 digits

Physical interface： 3-pin phoenix terminal

Mechanical

Dimensions: 172 mm x 150 mm x 115 mm

Weight: 700g per pair

Power Source

Input: 100~240VAC / 50-60Hz

Output: 12V1A

Environmental

Operating Temperature:0° to +50° C

Storage Temperature:-20° to +70° C

Humidity (storage / operating):10% to 90% (non-condensing)

Application:

1. Digital entertainment centers

2. Retail stores

3. AV events that require reliable and long-distance distribution suitable for Data Center, Control Rooms, Conference Rooms, Schools and Corporate Training environment.

Package:

1. 1 x transmitter with SFP module.

2. 1 x receiver with SFP module.

3. 2 x Power Adapter

4. 1 x Manual

About shipment:

Once order received, we will ship out within 1~2 days by DHL for one week arrival

Specs

Brand
Transwan
Color
Black
In/Out type
HDMI
Inputs/Outputs
HDMI female, 3.5mm stereo audio socket, 3-pin phoenix terminal

Current price is $409.00

Price when purchased online

Free shipping
Free 30-day returns

How do you want your item?

Ships to

Arrives between May 29 - Jun 4

Sold and shipped by Transwan Technology Co., Ltd

Report an issue with this seller

Free 30-day returns

About this item

Product details

BY-HDMI-307SF is the optic transimission set including 1 channel 4K HDMI video with loop-out + 1 channel bidirectional 3.5 audio+ 1 channel reverse IR + 1 channel bidirectional RS232 data. The video, audio and data output from the computer host (HD video signal source, HD DVD/DVR and other devices) are extended to the remote user through one or two core optical fiber, and the image and sound of the computer host are broadcasted in real time at the remote end.

Features:

Maximum support 4096*2160@30Hz, be backward compatible; 10KM over Dual or Single Single-mode Fiber.
Support HDCP 1.4 and EDID; Support RGB4:4:4 YUV4:4:4 4:2:2 4:2:0; Support DDC CEC HPD signal
Support 4K HDMI video with loop-out
Support 1 channel reverse IR infrared transmission; Support 1 channel bidirectional independent 3.5 stereo audio, forward support audio embedding / unembedding function; Support 1 channel bidirectional full-duplex RS232
with SFP module, plug and play, no software drivers needed.

Note:

Connector Types： 3.5mm stereo audio socket, RS232, 4K @ 30 HDMI Connector

Specs

Optics

Wavelength: 1310-1550nm

Bit rate: 10Gbps

Tx power: ＞-5db

Rx sensitivity: ＞-14db

Fiber connector: 1 x LC (Default), 2 x LC optional

Video

Video bandwidth: 10Gbps

Maximum resolution: 4096*2160@30Hz backward compatible

Maximum pixel clock: 297Mhz

Effective cable length: 10 Meters

Physical interface: HDMI female

Audio

Sampling frequency: 48K

Sampling depth: 24bit

Dynamic bandwidth: 96db

Total harmonical distortion (THD): -88db

Signal to noise ratio（SNR): 96db

Audio input/output impedance: 600Ω

Signal level: VPP 3.5V

Physical interface: 3.5mm stereo audio socket

Signal type: stereo audio

Optical current: 200~1030ｕA (Condition: IF=4mA,VCE=3.5V)

Peak wavelength: 940nm (Condition: 1F=20mA)

Spectrum voltage: 80nm (Condition: 1F=20mA)

View angle: ±30Deg (Condition: 1F=20mA)

Forward voltage: 1.2~1.6V (Condition: 1F=20mA)

Reverse current: 10ｕA (Condition: VR=5V)

RS232 (3-wire system, full duplex) index

Baud rate ： 256000Hz downward compatibility

Data bits： 8 digits

Physical interface： 3-pin phoenix terminal

Mechanical

Dimensions: 172 mm x 150 mm x 115 mm

Weight: 700g per pair

Power Source

Input: 100~240VAC / 50-60Hz

Output: 12V1A

Environmental

Operating Temperature:0° to +50° C

Storage Temperature:-20° to +70° C

Humidity (storage / operating):10% to 90% (non-condensing)

Application:

1. Digital entertainment centers

2. Retail stores

3. AV events that require reliable and long-distance distribution suitable for Data Center, Control Rooms, Conference Rooms, Schools and Corporate Training environment.

Package:

1. 1 x transmitter with SFP module.

2. 1 x receiver with SFP module.

3. 2 x Power Adapter

4. 1 x Manual

About shipment:

Once order received, we will ship out within 1~2 days by DHL for one week arrival
