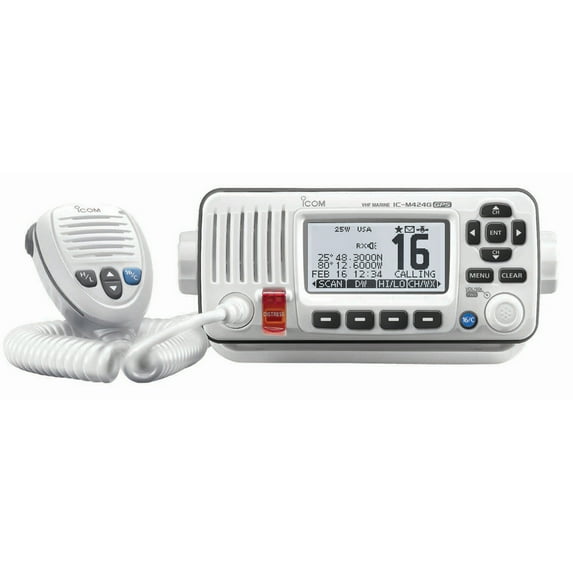

Icom M424G White VHF Radio Class D DSC Built-in GPS

Icom M424G White VHF Radio Built in Class D DSC and GPS

Model: M424G White

• Simple remote control speaker-microphone, HM-205B/SW
• NMEA 0183 connectivity
• MarineCommander™ compatible
• AquaQuake™ draining function
• IPX7 submersible protection (1m depth for 30 minutes)
• Weather channels with alert function
• Dual/tri-watch function
• Priority and normal scan

Intuitive User Interface and White Backlit LCD and Keypad
Incorporating Icom’s common Marine Family User Interface designed for simple, intuitive operation. A rotary selector and directional keypad provide quick and easy access to the intended functions. The high contrast white backlit LCD and laser-cut keypad match well with modern boat designs.

Active noise cancelling
The built-in active noise cancelling provides superb performance. It reduces background noise up to 90% in the received signal and 30% in the transmits signal.

10W Loud Audio, Public Address and Foghorn
The IC-M424G has a built-in 10W amplifier that increases the audio output to an external PA speaker. The public address function allows you to make an announcement from the microphone like a loud speaker, the foghorn can also be emitted from the external PA speaker.

Built-in Class D DSC
The built-in DSC watch function monitors Ch. 70 (DSC channel) activity, even while you are receiving another channel. DSC functions include: distress, individual, group, all ships, urgency, safety, position request/report, polling request and DSC test calls.

Built-in GPS Receiver
The built-in GPS receiver shows your current position, date/time and can be used for DSC calls. The GPS data source is selectable from internal and external GPS.

Optional White Backlit COMMANDMIC™ HM-195GB/GW
The optional white backlit COMMANDMIC makes it convenient for using the IC-M424G from a separate cabin or tower. All functions of the IC-M424G can be controlled from the COMMANDMIC and can be used as an intercom with the IC-M424G.

AIS Target Call with MA-510TR
When connected to the optional MA-510TR Class B AIS transponder, the AIS target call function allows you to make an individual DSC call without having to manually input an MMSI number.

Specifications
GeneralFrequency RangeTx - 156.025—157.425 MHz
Rx - 156.050—163.275 MHz
Ch70 - 156.525 MHzUsable ChannelsUSA, CAN, INT, WX channelsOperating Temperature Range-20°C to +60°C; -4°F to +140°FAntenna Impedance50ohm (SO-239)NMEA in/Out FormatsRMC, GGA, GNS, GLL, DSC, DSETransmitterOutput Power @ 13.Vdc25W, 1WMax frequency Deviation± 5 kHzFrequency Tolerance±10ppm (-20°C to +60°C)Spurious emissionsLess than —70dBc (High)
Less than —56dBc (Low)ReceiverSensitivityMain-13dBµ typ. (12dB SINAD)CH70—5dBµ emf typ. (1% BER)Squelch SensitivityLess than —10dBµAudio output power (at 10% distortion, 4? load)4.5W typicalInput Voltage 13.8V DC nominal (11.7—15.9V DC)Input Drawup to 5.5AmpsDimensions7.09 3.23 4.72 in
What's in the Box:

• M424G White
• Bracket and Knobs
• Powercord
• Hand Microphone HM205
