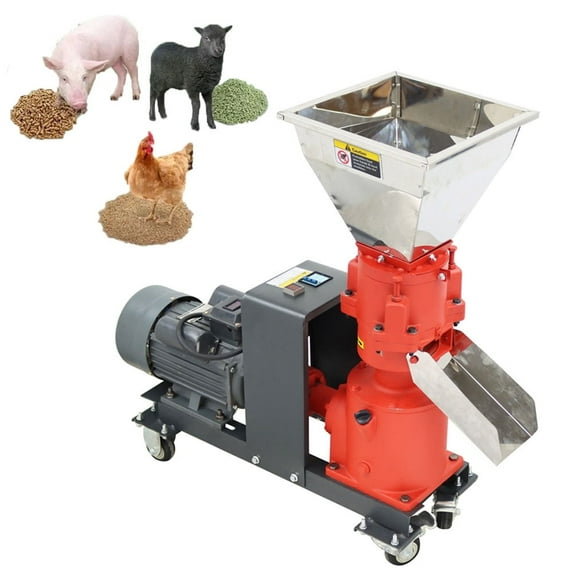

6MM Feed Pellet Mill Machine Feed Pellet Making Machine for Poultry Livestock Farm Animal 330LBS/H 220V

Product Overview:
Feed granulator is widely used in large, medium and small aquaculture, grain feed processing plants, livestock farms, poultry farms, individual farmers and small and medium-sized farms, farmers or large, medium and small feed processing plants.
This machine can be used alone, and customers who need it can also match it with a straw cutter for better results.

Product Parameter:
1. Plate: 6MM
2. Output/: Maximum output 150KG (ideal state)
3. Power: 3.5KW
4. Voltage: 220V Single-phase electricity
5. Product body material: cast iron
6. Standard pressure roller: Three head press roller
7. Product size: 27.56*11.22*34.6in(70*28.5*88cm)

Note:
1. Before using the machine, it is necessary to adjust the screw of the pressure roller to the appropriate position. The pressure roller and the pressure plate should be closely combined, and the three adjusting screws should be on the same horizontal plane.
2. Please refuel the fuel tank before using the machine. The machine should not idle for more than 2 minutes.
3. Double-check the belt and the screws before operation.
4. Clean up the rest after use to prevent damage to the machine.
5. If the pressure roller cannot rotate normally, please tighten the screws that control the pressure roller first, and then try to power it on. If it still does not work, you can appropriately loosen the screws next to the pressure roller and then tighten them slightly again (without special tightening)
6. We suggest that high-power machines should be directly connected to the main power supply, as the voltage reaching the machine is stable. If the voltage is unstable and the current exceeds the rated current of the motor, it is easy to burn out the starting capacitor.
7. It is recommended to directly connect to the power supply as much as possible. If the machine is not connected to the power supply, different situations may occur, and the wires are not durable. The wires will gradually burn out over time.
8. Our machine is not equipped with a plug. If you do not know how to operate the wiring video, you can contact our customer service and we will provide you with the wiring video. (If there are occasional situations with plugs, it is also recommended that you remove the plugs when wiring)

Usage and specification:
1: It applies to chicken industry.
2: Corn particles can be put into the machine directly. The feed processed by the machine is smooth and has moderate hardness. The temperature-change during the process is slight so the nutrition can be contained very well.
3: The practical’s diameter of the holes can be divided into: Φ2, Φ3, Φ4, Φ5, Φ6, Φ8, Φ10, Φ12.
4: The microorganism and parasite can be killed during the process by extrusion.

Item included(238012-SunY):
220V Chicken Feed Pellet Mill Machine
