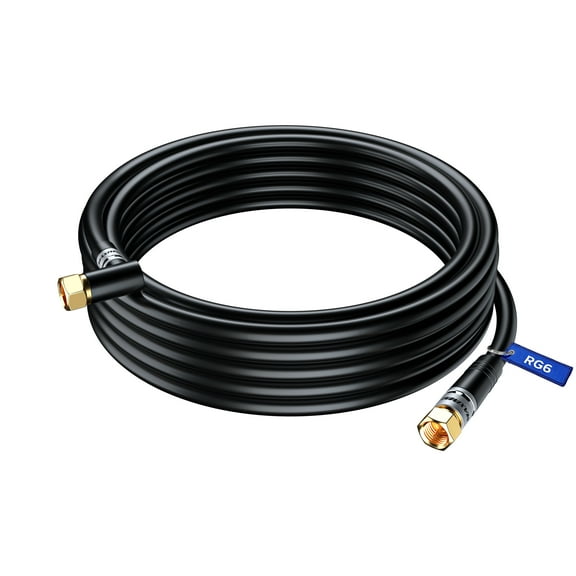

Coaxial Cable RG6 Coax Cord 20 Feet (Black), Triple Shielded Wire CL3 F-Type Connectors

Applications Common applications of coaxial cable include video and CATV distribution, RF and microwave transmission, and computer and instrumentation data connections Coaxial cable is generally used as a transmission line for radio frequency signals. Its applications include feedlines connecting radio transmitters and receivers with their antennas, computer network (Internet) connections, digital audio (S/PDIF), and distributing cable television signals. One advantage of Maxxim coaxial over other types of radio transmission line is that in our coaxial cable the electromagnetic field carrying the signal exists only in the space between the inner and outer conductors. This allows coaxial cable runs to be installed next to metal objects such as gutters without the power losses that occur in other types of transmission lines. Coaxial cable also provides protection of the signal from external electromagnetic interference.Type; RG-6 Impedance (ohms); 75 Core (mm); 1.024 Type; PF Dielectric: 0.75(VF) 0.185(in) 4.7(mm) Outside diameter: 0.270(in) 6.86(mm) Shields; Quad (4) Max. attenuation, 750 MHz (dB/100 ft); 5.650 Package Contains 1 x F-Pin Coaxial Cable3 x F-Pin Connectors (Male-Male) 50 x Cablw Connectors
