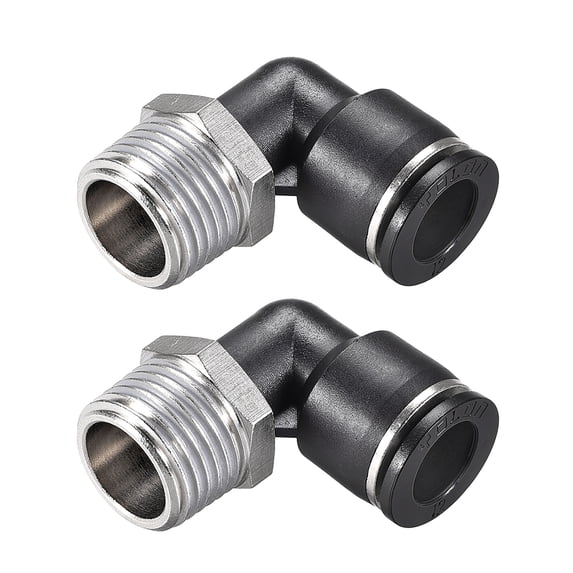

Push to Connect Tube Fitting,Male Elbow,12mm Tube OD x 1/2 NPT Thread Pneumatic Air Push Fit Lock Fitting 2pcs

Description
1.Quick and simple installation,designed for using to connect with polyethylene, nylon and PU tubing.
2.Push-to-connect tube connection on one end and male threads on the other end.
3.A good release cap can withstand greater and stronger pressure without tripping.
4.Have flexibility, abrasion resistance, light weight, and resistance to crushing and cracking,Compressive and corrosion resistant, good sealing performance and long service life.
5.Easy to install, insert the plastic tube, the cap can be rotated freely, but its rotation is only used when the angle is wrong when the joint is installed.

Product Features:
Product Name : Connect Fitting
Model : MPL12-04
Color : Black,Silver Tone
Material : Plastic,Metal
Type: 90 Deg Swivel Elbow Male Connector
Thread Size :1/2 NPT
Tube Size (OD) : 12mm / 1/2"
Operating Pressure : 0-1MPa
Operating temperature：-10 - 60 Degree Celsius
Dimension : 44mm x 41mm / 1.73-inch x 1.61-inch(L x W )

Package Content:
2pcs x Fitting

Mounted:
1.Cut the pipe flat, no slope
2.When inserting the pipe into the joint, it must be inserted into the end, otherwise there may be a leak.
3.After plugging in, try to pull the tube, if you can't pull it out, it means it has been connected.
4.When loosening the tube, first confirm that there is no pressure in the tube, and then evenly press the end cap to the bottom.
