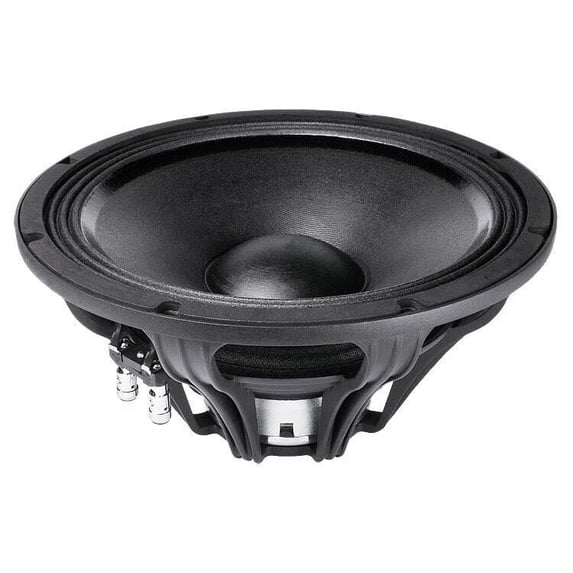

Faital Pro 12FH520-8 12-inch Professional Woofer 8-Ohms Loudspeaker 600 Watts Rms 1200 Watts Max Audio Speaker Applications

Faital Pro 12FH520-8 12-inch Professional Woofer 8-Ohms Loudspeaker 600 Watts Rms 1200 Watts Max Audio Speaker Applications

• "NOMINAL SPECIFICATIONS Nominal Diameter : 300 mm 12 in Overall Diameter : 316 mm 12.44 in Bolt Circle Diameter : 298.5 mm 11.75 in Baffle Cutout Diameter : 284 mm 11.18 in Depth : 155.75 mm 6.13 in Flange and Gasket Thickness : 12.5 mm 0.49 in Net Weight : 4.2 kg 9.3 lb Shipping Box Single Carton Box : 350 x 346 x 216 mm 13.8 x 13.6 x 8.5 in Shipping Weight : 5 kg 11.0 lb "
• "TECHNICAL PARAMETERS Nominal Impedance : 8 Ohm Minimum Impedance : 6.3 Ohm AES Power Handling 1 : 600 W Maximum Power Handling 2 : 1200 W Sensitivity 1W/1m : 98 dB Frequency Range : 504000 Hz Voice Coil Diameter : 77 mm 3 in Winding Material : Al Former Material : Glass Fiber "
• "TECHNICAL PARAMETERS Winding Depth : 18.5 mm 0.71 in Magnetic Gap Depth : 12 mm 0.47 in Flux Density : 1.1 T Magnet : Neodymium Slug Basket Material : Aluminum Demodulation : Aluminum Ring Cone Surround 3 : Triple Roll NET Air Volume filled by Loudspeaker : 2.4 dm3 0.085 ft3 Spider Profile : 1x variable height waves "
• "THIELE AND SMALL PARAMETERS Fs : 50 Hz Re : 5.1 Ohm Qes : 0.3 Qms : 11.1 Qts : 0.29 Vas : 73.7 dm3 2.60 ft3 Sd : 540 cm2 83.70 in2 Xmax 4 : 7.25 mm Xdamage 5 : 19.5 mm Mms : 56.0 g Bl : 17.3 N/A Le : 0.74 mH Mmd : 41.8 g Cms : 0.18 mm/N Rms : 1.6 kg/s Eta Zero : 2.98 % EBP : 167 Hz "
• "Brand : FAITAL PRO Model Number : 12FH520-8 12FH520 UPC : 810130951154 PART NUMBER P/N Push Terminals - 8 Ohm Version : 3003973 NOTES 1 2 Hours Test According to AES 2-1984 Rev. 2003 2 Maximum power is defined as 3dB greater than nominal power 3 Treated Polycotton 4 Xmax= [winding depth - magnetic gap depth/2] + magnetic gap depth/3 5 Maximum excursion before permanent damage "
