Package Includes:

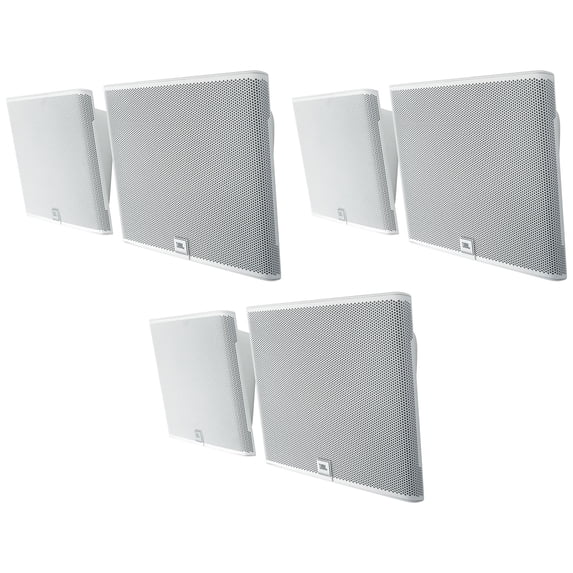

(3) Pair JBL SLP12/T-WH Sleek Low-Profile On Wall Mount 3" 70v Commercial Speakers
Features:
Transducer: 75 mm (3 in) full-range
Power handling: 40W continuous pink noise, 80W continuous program
15° down-tilted coverage allows flush-to-wall mounting
Included slide-in wall bracket makes installation a breeze
Included rain cover protects terminal compartment in protected outdoor applications
Multi-tap transformer for use in 70V/100V systems
ADA-compliant at less than 4 inches deep
Available in white finishes
Specifications:
Frequency Range (-10dB) : 74 Hz - 20 kHz
Frequency Response (+/-3 dB) : 91 Hz - 18 kHz
Power Rating : 80W Continuous Program (2 hrs), 40W (160W peak) Continous Pink Noise (2 hrs), 20W (80W peak) Continuous Pink Noise (100 hrs)
Sensitivity : 84 dB (80 Hz - 20 kHz) half-space (mounted on a wall)
Maximum SPL : 106 dB peak (100 dB continuous, 2 hr) at 1m
Coverage Angle : 120°H x 120°V
Directivity Factor (Q) : 7.5
Directivity Index (DI) : 8.8 dB
Nominal Impedance : 8Ω (at 8Ω tap setting)
Transformer Taps : 70V: 15 W, 7.5 W, 3.8 W, 1.9W, 100V: 15 W, 7.5W, 3.8W
Driver : 75mm (3 in) full-range driver, polypropylene cone, 20 mm (0.8 in) voice coil on Kapton™ voice coil former
Terminals : 4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm)
Enclosure Material : Polycarbonate + ABS, UL94V-0 flammability rated
Color : White
Dimensions : 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in)
Net Weight : 1.9 kg (4.2 lbs)
Included Accessories : Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use.
