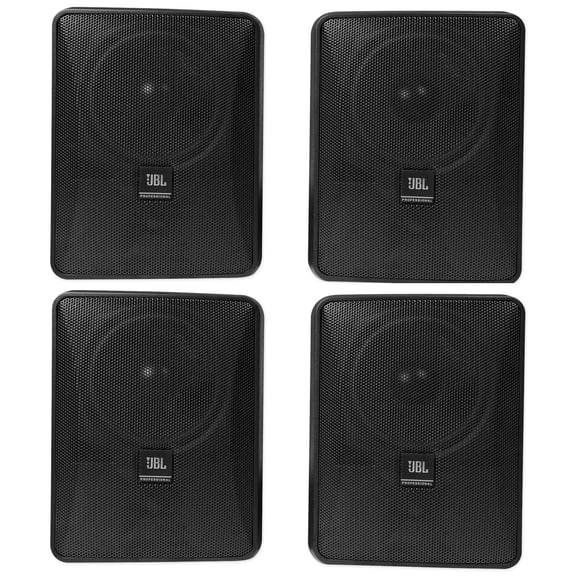

(8) JBL Control 25-1 5.25" 30w 70v Wall-Mount Commercial Restaurant/Bar Speakers

Video of Control 25-1:

Description:

Designed by JBL, these Control 25-1 loudspeakers are two-way 5.25"" indoor/outdoor monitors featuring weather-protected circuitry, natural and powerful representations of the frequency spectrum, black enclosures, and JBL's proprietary InvisiBall mounting hardware. This hardware allows you to install the speakers through a hidden access point behind its logo badge. As such, the Control 25-1 suitable for venues, health clubs, theme parks, cafes, or anywhere where foreground/background music—and paging—is a necessity.

These monitors are capable of handling 200W of programmatic material at 8 Ohms, and feature a built-in multi-tap transformer for operation on distributed speaker lines. With an SPL of 110 dB, you can blast these speakers pretty loudly as well, while their cone geometry ensures a pleasurable listening experience in both on- and off-axis situations.

Also, while the Control 25-1 comes in a black finish, it doesn't have to stay that way: these speakers accept a variety of finishes and pigments to match any surrounding.

Features:

• 2 JBL Control 25-1 5.25"" 100w Black Surface-Mount Speakers 4 Home/Restaurant/Bar
• 5.25"" Woven-Fiberglass LF Drivers
• 0.75"" PEI Diaphragm Tweeters
• 200W RMS at 8 Ohms
• Durable, Weatherized Enclosures
• InvisiBall Mounting Hardware
• Zinc-Plated Grilles
• Good for Off-Axis Listening
• 60 Hz to 20 kHz Frequency Response

Specifications:

• Power Rating: 200 W continuous program (2 h). 100 W (400 W peak), continuous pink noise (2 h). 75 W (300 W peak) continuous pink noise (100 h)
• Nominal Impedance: 8 ohms (THRU setting)
• Maximum Input Voltage: 25.3 V RMS (2 h), 50.6 V peak
• Frequency Response± 3dB: 85 Hz to 17 kHz
• Frequency Response ±10 dB: 60 Hz to 20 kHz
• Sensitivity: 90 dB, 1 W / 1 m (average 100 Hz to 10 k Hz)
• Coverage Angle: 100° x 100°
• Directivity Factor: 6.0 (averaged 1 kHz to 16 kHz)
• Directivity Index: 7.6 dB (averaged 1 kHz to 16 kHz)
• Crossover Type: 2nd order low-pass, 2nd order high-pass
• Transformer Taps: 70 V: 30 W, 15 W, 7.5 W, 3.7 W, 100 V: 30 W, 15 W, 7.5 W. Insertion loss < 0.94 dB at any tap setting. Thru setting: 8 Ohms nominal
• Recommended Protective High-Pass: 60 Hz high-pass (24 dB/oct) (for 8 Ohms operation and for all 70 V / 100 V taps settings)
• LF Driver Size: 5.25"" / 135 mm
• HF Driver Size: 0.75"" / 19 mm
• Driver Type: LF Driver: Woven-fiberglass cone with pure butyl rubber surround with Weather-Edge frame protection, high-temp Kapton voice coil former, high-temp voice coil wire, optimized cone geometry, linear suspension spider, and FEA optimized motor structure. HF Driver: PEI diaphragm, low-viscosity ferro-magnetic fluid, and Kapton voice coil former
• Enclosure Material: High-impact polystyrene (HIPS)
• Grille: High
