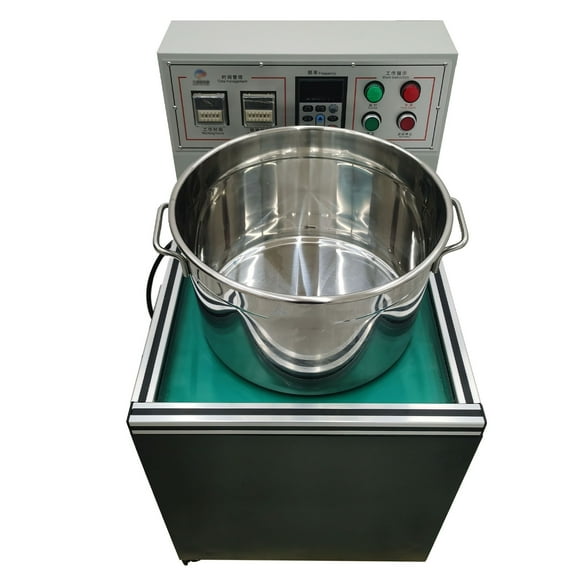

Magnetic Polishing Deburring Grinding Integrated Machine 220V

Description:
This polishing and deburring machine utilizes an ultra strong magnetic field force to drive small grinding steel needles, causing high-speed rotary floating flow and directional rolling during polishing. Numerous deburring stainless steel needles gently slide over various surfaces of the workpiece, as well as internal and external holes, teeth, and surface friction, achieving precision polishing effects such as cleaning, removing oil stains and impurities, removing burrs, and polishing with brightness.

Product Specification:
Voltage:220V
Power:1.5KW
Disk diameter:Within 350mm
Frequency Control:0-60HZ(1800)rpm/min
Maximum driving capacity:6KG
Suggested amount of usag of steel needles:1KG

Note:
1. Iron, easily magnetized large metal, placed in polishing grooves, may cause serious harm to the human body
2. Placing precious watches and electronic products in polishing grooves may cause damage
3. When using the machine, it must be grounded and the input power voltage must be confirmed to be correct before powering on.
4. Do not install the machine in workshops exposed to sunlight, rain, excessive humidity, strong acids, or alkalis.

Principles of Safe Use:
1.To ensure safety and avoid fires, do not splash liquids and water onto wires and plugs, as well as on the rear cover cooling fan. Keep the machine surface as dry and clean as possible.
2. When using this device, do not put magnetic workpieces into processing (such as iron or magnetic workpieces). If necessary, please contact the manufacturer and do not place electronic valuables on the machine table (such as watches, mobile phones, electronic equipment, etc.).
3.When the components of the equipment are damaged or abnormal in operation, immediately cut off the power and stop working, and notify the relevant after-sales service personnel.
4.When the surface of the machine heats up, pay attention to checking whether the cold air cooling fan on the back cover is operating properly. Prohibit high-temperature applications.
5. Please turn off the power and cut off the main power when not using the device.
6. Do not work at low frequencies for long periods of time, as lightning may cause damage to the machine.

Equipment Usage:
1.Suitable for precision parts such as light iron metals, non-iron metals, hard plastics, etc.
2.Realize multiple functions such as deburring, chamfering, polishing, and cleaning.
3.For irregular parts, dead corners such as holes and tubes, as well as gaps, can be polished.
4.Customized time, fast processing speed, simple and safe operation.
5.Variable frequency adjustment to meet various polishing needs.
6.Polishing without dead corners.
7.End reminder, can remind polishing completion, can operate multiple machines by one person.
8.Voltage, current, frequency, and time can all be monitored, concise and clear.
9.The polishing process does not require manual intervention.
10.Magnetic polishing and grinding have no dead corners, allowing all parts to be completely ground; After grinding, the workpiece will never deform, damage the surface, or affect accuracy.

Operation process:
1.Insert the magnetic steel needle into the grinding container and add an appropriate amount of workpiece at the same time.
2.Add an appropriate amount of water, and the liquid level should be 1-3cm higher than the workpiece surface.
3.The ratio of polishing agent to water is 2:100.
4.Place the grinding bucket into the grinding groove and set the polishing time.
5.Turn on the power and press the start button (failure to press will result in no timing and no shutdown).

Item Included: 020440
EQCOTWEA Magnetic Polishing Deburring Grinding Integrated Machine 220V
