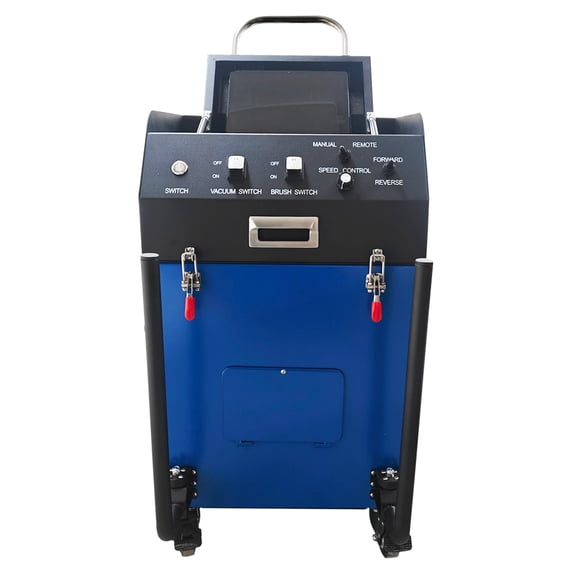

Air Duct Cleaning and Suction Integration Machine Duct Cleaning Machine with High-definition Camera 110V
Key item features
- The machine is suitable for comprehensive sweeping and dust suction of round ducts, rectangular ducts, horizontal ducts, vertical ducts and other ducts, has a wide applicable diameter range of 100-800mm, and is applicable to most commercial and industrial ventilation systems.
- The machine is equipped with a 2800W high-power motor and dual negative-pressure fans with a large air volume of 2000m³/h, ensuring the powerful vacuum suction.
- The machine features a high-definition camera for real-time monitoring and video recording, and is equipped with a 160˚ wide-angle lens to clearly display the cleaning effect inside the duct. A branded tablet computer is designed for lossless HD image transmission, enabling intuitive quality control.
- The suction and cleaning integrated machine can be operated by a single person, reducing the labor cost and improving work efficiency.
- The main unit is equipped with a hose winding support frame, which effectively stores the flexible hose, saves the storage space and facilitates transportation and on-site transfer.
Specs
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Product Overview:
This is an efficient ventilation duct cleaning machine. The brush disc is driven by a flexible shaft to rotate so as to loosen dust, the vacuum cleaner at the front end simultaneously sucks the dust into a collection bag, achieving simultaneous cleaning and dust suction. The machine is equipped with a high-definition camera, and the operator can observe the duct interior operation conditions in real time and records videos for documentation. The whole duct cleaning machine is small in size and light in weight, can be operated by a single worker to accomplish duct cleaning in hotels, restaurants and similar places and is an ideal choice for air duct cleaning and maintenance.
Parameter:
Voltage：110V/60Hz
Power：2800W
Rotating Speed：0-1000rpm
Applicable Duct Diameter：100-800mm (3.9-31.5 inches)
Length of Flexible Shaft：15m (49.2ft)
Guide Supports：15.5cm*4pcs, 21cm*4pcs
Size of Flat Panel Display：11in
Camera：2-megapixel high-definition wide-angle camera
Remote Control Range of Remote Controller：≤24m (78.7ft) (Unobstructed)
Note: For transportation safety, no batteries are included in the remote controller. Please prepare batteries by yourself.
Precaution:
1. Before starting the machine, ensure the flexible shaft is fully extended. Failure to do so will twist off the shaft core. Any accessory damage caused by this will be at the customer's own expense for replacement parts.
2. Wear safety goggles and protective gloves before operation. During operation, do not touch the transmission device to avoid danger.
3. Place the machine on a clean, dry and stable ground. Keep the machine clean at all times.
4. Do not operate the machine when the environmental temperature is above 40˚C.
5. The machine must be grounded. Ensure the power supply matches the rated voltage of the machine.
6. If the tablet computer is not in use for an extended period, fully charge it before turning it off. Recharge it fully and power it on to activate it once every other month.
7. After operation, clean the dust bag timely to prevent reduced suction power or damage to the fan.
8. Handle the camera with care to avoid collision damage during use.
Operation Method:
1. Take down the flexible hose, connect one end of the hose to the main unit, and ensure the buckle is tightly connected. Install a brush head with the appropriate size at the other end according to the working conditions.
2. Install the guide frame suitable for the duct around the camera.
3. Ensure the dust bag is installed in place to prevent dust from damaging the fan.
4. Start the machine, connect the main unit to the tablet computer. Place one end of the brush head into the duct and start operation.
5. Clean the dust bag after the operation is completed.
Item Included(022869):
1 x Air Duct Cleaning and Suction Integration Machine 110V
- The machine is suitable for comprehensive sweeping and dust suction of round ducts, rectangular ducts, horizontal ducts, vertical ducts and other ducts, has a wide applicable diameter range of 100-800mm, and is applicable to most commercial and industrial ventilation systems.
- The machine is equipped with a 2800W high-power motor and dual negative-pressure fans with a large air volume of 2000m³/h, ensuring the powerful vacuum suction.
- The machine features a high-definition camera for real-time monitoring and video recording, and is equipped with a 160˚ wide-angle lens to clearly display the cleaning effect inside the duct. A branded tablet computer is designed for lossless HD image transmission, enabling intuitive quality control.
- The suction and cleaning integrated machine can be operated by a single person, reducing the labor cost and improving work efficiency.
- The main unit is equipped with a hose winding support frame, which effectively stores the flexible hose, saves the storage space and facilitates transportation and on-site transfer.
