Hero image 0 of 110V Automatic Gluing Machine Glue Coating Machine Glue Coating Machine with Steel Roller, 0 of 14

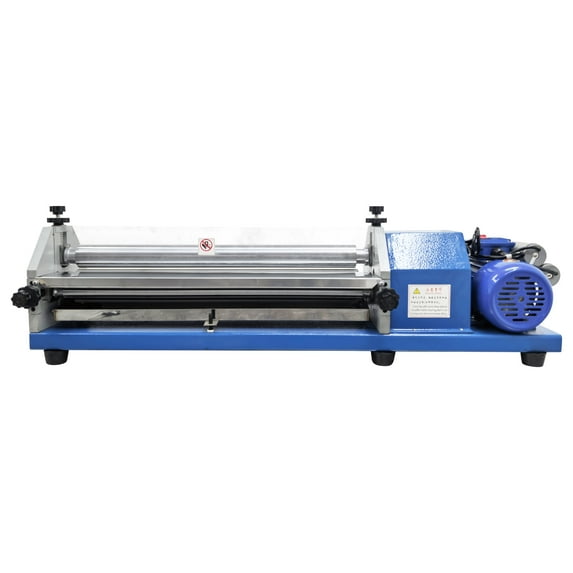

110V Automatic Gluing Machine Glue Coating Machine Glue Coating Machine with Steel Roller

(No ratings yet)

Key item features

Uses a soft roller and a steel roller with length of 23.62", high elasticity, better coat uneven materials with water latex. High working efficiency, the 370W power motor, low noise and energy consumption, achieves fast start and stop through one switch.
Two production thickness adjusting knobs for flexibly adjusting the steel roller to adapt to different materials, and two gluing thickness adjusting knobs for flexibly adjusting the soft roller to meet the gluing thickness demands.
Hold more glue with a stainless steel glue tray, easy to clean, resistant to corrosion.
Good safety protection function, a safety baffle and anti-splash design for improving safety and preventing glue from splashing.
Wide application fields, suitable for gluing various materials such as paper and leather in different industrial fields.

Specs

Brand
Maisutseb
Power type
Corded Electric
Weight
121.25 lb

Current price is $999.00

Price when purchased online

Free shipping
Free 30-day returns

Walmart Protection Plan by Allstate

(Only one option can be selected at a time)

3-Year Plan - $59.00

4-Year Plan - $77.00

How do you want your item?

Ships to

Arrives between Jul 11 - Jul 14

Sold and shipped by SuperLeadDX Co.Ltd

4.115384615384615 stars out of 5, based on 26 seller reviews(4.1)

Free 30-day returns

About this item

Product details

Introduction:
The white latex gluing machine is suitable for coating different materials with various water-soluble glues. The thickness of glued materials can be adjusted at will within the range of 0.5-13mm. It is used for automatic glue coating when various materials need to be coated with adhesive layers. The required coating thickness and strength can be achieved evenly and quickly. It adopts one steel roller and one soft roller so that gluing can be more uniform and smoother. It is an ideal device for automatic gluing of thin workpieces in various industries of shoemaking, paper, leather and so on.

Product Parameters
Voltage: 110V 60Hz
Power: 370W
Coating Speed: 10m/min
Coating Width: 23in
Material Thickness: ≤13mm
Product Size: 41.34"x11.02"x12" (105x28x30.5cm)
Net weight: 55kg

Attention
1. In the working process, do not touch the rollers so as to prevent hands from being crushed.
2. Please note that the voltage of the gluing machine is 110V 60Hz.
3. If the glue is attached to the upper roller in the glue coating process, please wipe away the glue immediately so as not to dirty the material.
4. Each time the work is completed, please wipe away the glue on the machine to prolong the service life of the machine.
5. After the work is completed every day, each sleeve should be lubricated timely, then idling needs to be conducted for a few minutes, and then the machine can be stopped.

Operation Method
1．The baffle is opened, the glue is poured into the glue box (1), so that at least 1/3 of the soft roller (6) is dipped into glue.
2．According to the desired thickness of the material to be turned over, adjust the central axis of the gap between the steel roller (5) and the soft roller (6). Clockwise rotate the adjusting knobs (3) to enlarge the gap, and counterclockwise rotate the adjusting knobs (3) to reduce the gap.
3．Turn on the power switch.
4．Adjust the glue thickness according to the material and the adhesive requirements, clockwise rotate the two adjusting knobs (4) to thicken the glue, and counterclockwise rotate the adjusting knobs (4) to thin the glue.
5．Insert the baffle back to the original position. After all parts are adjusted to be normal, the glue side needs to be placed downwards on the baffle, the workpiece is pushed gently to pass through the space between the steel roller (5) and the soft roller (6), and is coated with glue automatically and intermediately, and the sizing process is completed.

Item Number (120098):
1 x Automatic Gluing Machine Glue Coating Machine 110V

Uses a soft roller and a steel roller with length of 23.62", high elasticity, better coat uneven materials with water latex. High working efficiency, the 370W power motor, low noise and energy consumption, achieves fast start and stop through one switch.
Two production thickness adjusting knobs for flexibly adjusting the steel roller to adapt to different materials, and two gluing thickness adjusting knobs for flexibly adjusting the soft roller to meet the gluing thickness demands.
Hold more glue with a stainless steel glue tray, easy to clean, resistant to corrosion.
Good safety protection function, a safety baffle and anti-splash design for improving safety and preventing glue from splashing.
Wide application fields, suitable for gluing various materials such as paper and leather in different industrial fields.

info:

We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.

Specifications

Brand

Maisutseb

Power type

Corded Electric

Weight

121.25 lb

Items included

1 x Automatic Gluing Machine Glue Coating Machine 110V

Warranty

Warranty information

30 days return; 10 months' warranty for the machines, not for the consumables and lifetime technical support.

Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
