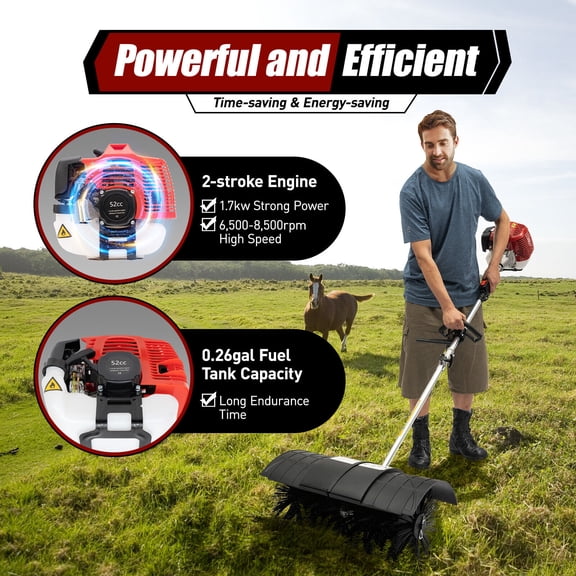

52CC 1.7kw / 2.3hp Gas Powered Brush Broom Sweeper 6500-8500rpm 1-Cylinder, 2-Stroke Handheld Driveway Cleaning Turf Lawn Grass Used to Sweep Snow, Leaves, Soil, Mud

Description:

Are you still worrying about the large-scale cleaning work? Please take a look at our handheld cleaning machine. It is made of selected good materials, and is not only powerful but also very easy to use. The wide brushes can help you sweep a large area of floor at one time and finish the sweeping work easily and quickly. Please don't hesitate to purchase this efficient cleaning machine as soon as possible!

Details:

Curved Baffle: The baffle (23.62*13.39*5.12 inches) above the brush prevents mud or water from splashing during operation. It helps keep the user and the machine clean.

Quick Connector: The easy-to-use connector allows for quick disassembly and assembly of the cleaning machine, making it more convenient to handle.

Application:

It can be used to sweep snow, leaves, soil, mud, and various types of dirt, suitable for combing artificial lawns, as well as cleaning artificial grasslands, streets, and farms.

Initiation Step:

Press the pump oil bubble and suck the fuel into the carburetor.

Turn on the ignition switch to the On position.

Tighten the fuel tank cover.

Close the choke valve. (Note: It is not necessary to close the valve when starting the hot engine.)

Pull the rope starter. (Note: After pulling 3-5 times, it can be started. If there is a reaction to start but it fails to start, please open the valve and quickly pull the start handle again.).

After the engine starts, open the choke valve. (Note: Keep the choke valve open in the working condition.

Specification:

Material: Aluminum Alloy, Steel, PP

Engine: 1-Cylinder, 2-Stroke

Power: 1.7kw / 2.3hp

Displacement: 52 cc

Rotation Speed: 6500-8500rpm

Cooling: Air-Cooled

Fuel Tank Volume: 1L/0.26gal

Fuel Ratio: 1 Engine Oil: 25-30 Gasoline (Based on Engine Oil Grade FD Grade 1:40-50)

Noise: 110dB

Carrying Mode: Handheld Side-mounted

Gasoline: Above 90

Overall Length: 189cm /74.41inch

Brush Size(L*W): 56*23.5cm/22.05*9.25inch

Baffle Size: 60*34*13cm/23.62*13.39*5.12inch

Overall Driven Rod Length: 119cm/46.85inch

Engine Size: 28.5*26.5*17.5cm/11.22*10.43*6.89inch

Package Size: 110*33.5*30cm/43.31*13.19*11.81inch

Net Weight: 9.85kg /21.72 lbs

Gross Weight: 12.6kg/27.78 lbs

Package Included:

1*Host

1*Brush Head

1*Drive Rod

1*Baffle

1*Handle

1*Fuel Oil Mixing Bottle

1*English Manual

1*Back Strap

Other Accessories for Assembly

Notes：

Please note that the fuel should be dispensed as you use it, do not use fuel that has been mixed for more than 7 days, and you need to empty the fuel tank if you have not used it for a long time.

Please note that only two-stroke engine oil should be used.

Please note that the fuel should be kept away from the fire source, and the fuel concentration can be increased appropriately when the machine is new and the temperature is high.

Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.

Before use, please carefully install according to the instructions. During installation, the inner shaft should be parallel to the outer aluminum tube (the visual difference is 0.5-1cm parallel with the aluminum tube), and the inner shaft should be about 0.5cm long to ensure that the aluminum tube is fully installed to the bottom of the gear box; Improper installation of aluminum pipes can lead to problems such as stalling.
