WWVB/60KHz Receiver Module Radio Time Module Radio Clock Radio Module Antenna

describe:

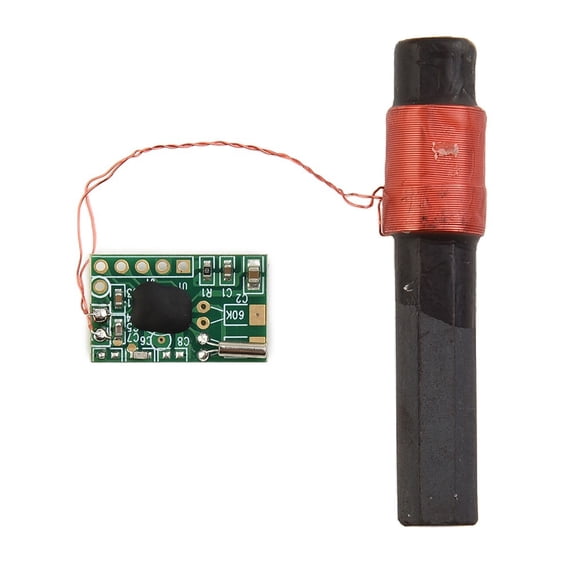

DCF receiver module with DCF antenna tuned to time signal transmitter WWVB/60KHz (Frankfurt 60 kHz). The antenna induction signal is sent to the IC for amplification, demodulation, and then identified by the MCU, so that the date and time of the timing center are completely consistent.

Below you will find important setup and circuit diagrams.

Technical Specifications

Product number: WVB-1060N-MAS

RCCM category: WWVB/60KHz single frequency module

PCB size: 22.0x13.5x1.0mm/FR4

Antenna size: AR10x60mm/High Q

Nominal frequency: 60KHz±300Hz

Sensitivity: 27±2dB

Receiving IC: MAS6181B

• Operating voltage: 1.1...3.3 V

• Current consumption: 85 µA max

• Receiving frequency: 60 KHz

• Board size (without antenna) LxWxH: 22x13.5x1 mm

• Antenna quality: LxØ: 60x10mm

• Scope of delivery: 1 piece

⇒ DCF receiver module with antenna

• connect:

⇒ Ground = Pin G

⇒ Operating Voltage = Pin V

⇒ data = pin T

⇒ Power On/Off = Pin P1

• Important note:

⇒ PIN P1 is an on/off switch and must be set to logic low.

Note: The single frequency module cannot switch between different frequencies of DCF/WVB/HBG/BPC. The JJY dual frequency module can switch between the two frequencies of 40K/60K, and a single frequency module can only be used in this frequency band.

Package Included:

1*Receiver module
