Key Features:
- Designed to work with the current RAMPS generation firmwares with minimal modifications
- Backwards compatible with firmware for previous versions of Rambo that normally utilize the RamboLCD
- EXT2 and SPI headers were re-arranged to remove the need for an adapter
- Complete kit with Mechanical Endstops and Wire harness

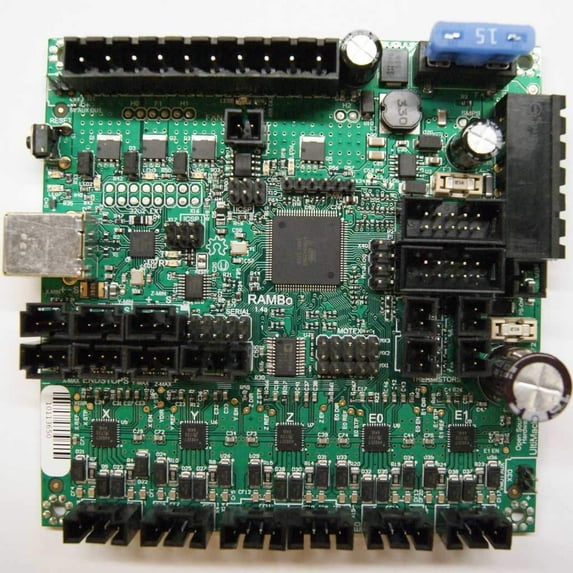

This is RAMBo v1.4. The RAMBo board is an all in one 3D printer motherboard. It is a full remix of UltiMachine's RAMPS design with the Arduino MEGA and stepper drivers all on one integrated PCB. That is where it got the name RAMBo - (R)epRap (A)rduino-(M)ega-compatible (M)other (Bo)ard. The major difference over the previous version is the integrated LCD connector for Smart LCD Controllers. The EXT2 and SPI headers were re-arranged to remove the need for an adapter. This change is backwards compatible with firmware for previous versions of Rambo that normally utilize the RamboLCD. Major Features - 5 x integrated 1/16th microstep motor drivers, 5 PWM Mosfet outputs, 4 thermistor inputs, digital trimpot (no tiny knobs to tweak), SMPS supports hostless printing on power supply voltages from 10-24V DC, 3 independent fuse protected power rails, LUFA USB, high quality connectors, did I say hacker friendly ... RAMBo is designed to work with the current RAMPS generation firmwares with minimal modifications to add firmware control of the digital trimpots and the microstep setting pins.
Item Specifics
Pre-Assembled RAMBo PCB
2 - Crimped/housed thermistor wire harness, 914.4mm (36") *thermistor not included*
1 - Black 6-pin pluggable terminal block
5 - Black 2-pin pluggable terminal block
1- 1x2 positive latch housing & matching gold connectors
6 - 1x4 positive latch housings & matching gold connectors for crimping motor cables
1 - 6ft USB Cable
3 - Mechanical endstop switch
1 - 24" Matching endstop harness set pre-crimped/housed
