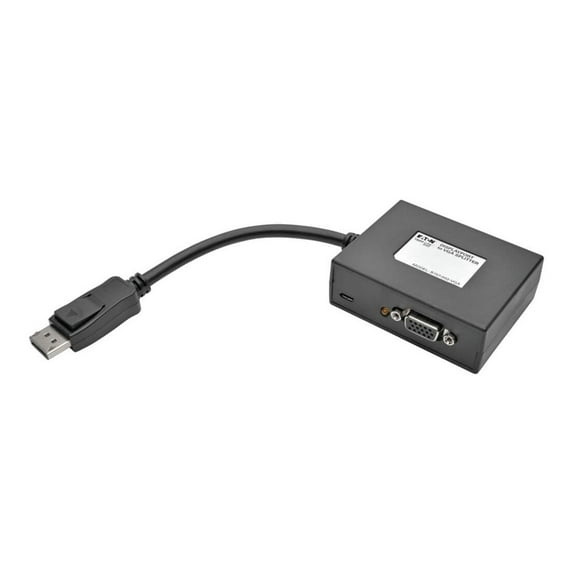

Tripp Lite 2-Port DisplayPort to VGA Splitter

The B157-002-VGA 2-Port DisplayPort to VGA Splitter converts and splits a DisplayPort video signal for display on two VGA-enabled monitors, projectors or televisions at the same time. Ideal for offices, conference rooms, retail settings, trade shows and classrooms, this compact splitter features a built-in DisplayPort cable that connects to the source. It lets you use your existing VGA displays instead of buying new DisplayPort monitors or docking stations.

The B157-002-VGA supports video resolutions up to 1920 x 1080 (1080p) at 60 Hz, as well as HDCP, EDID and DDC. Orange LEDs next to each output port indicate whether the splitter is powered on and transmitting a signal to the connected displays. The splitter works with all operating systems and is small enough to carry in your backpack or computer bag. Plug-and-play convenience means no software or drivers are needed. An included USB Micro-B cable connects between the source and the splitter to provide power, so no external power supply is required.

General Information

• Manufacturer: Tripp Lite
• Manufacturer Part Number: B157-002-VGA
• Brand Name: Tripp Lite
• Product Model: B157-002-VGA
• Product Name: 2-Port DisplayPort to VGA Splitter
• Product Type: Video Cable

Technical Information

• Cable Type: DisplayPort/VGA
• Connector on First End: 1 x DisplayPort Male Video
• Connector on Second End: 2 x 15-pin HD-15 Female VGA
• Device Supported:
  • Monitor
  • Projector
  • TV
  • Splitter
  • Video Device
• Supported Resolution: 1920 x 1080

Miscellaneous

• Package Contents:
  • 2-Port DisplayPort to VGA Splitter
  • USB Micro-B Cable, 3 ft.
  • Owner's Manual
• Environmentally Friendly: Yes
• Environmental Certification:
  • RoHS
  • WEEE

Warranty

• Limited Warranty: 1 Year
