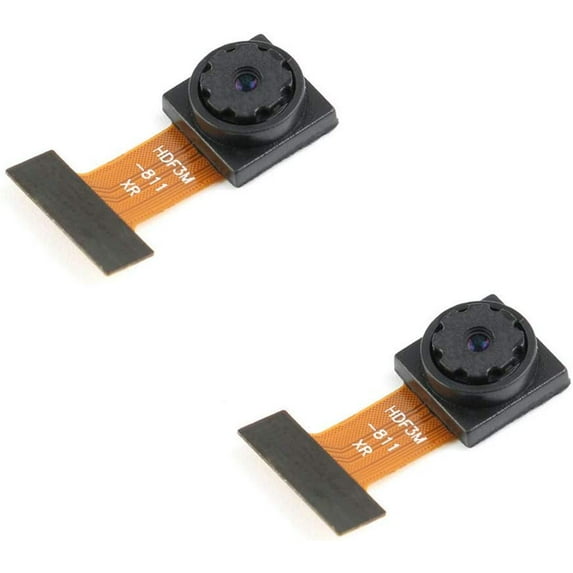

Treedix 2 pcs OV2640 Camera Module CMOS 2MP Camera Optical Lens Mini Camera Module

Specification：
Array Size: UXGA 1600 x 1200
Core Voltage: DC1.2V±5%
Analog Voltage: DC 2.5~3.0V
I/O Voltage: 1.7~3.3V
Power requirements:
Active: 125mW(for 15fps, UXGA YUV mode) / 140mW(for 15fps, UXGS compressed mode)
Standby: 600μA
Temperature Range:
Operation: -30~70℃
Stable Image: 0~50℃
Output Formats(8-bit): YUV(422/420)/YCbCr422、RGB565/555、8-bit compressed data、8-/10-bit Raw RGB data
Lens size：1/4"
Main ray angle：25° non-linear
Maximum Image Transfer Rate：UXGA/SXGA: 15fps、SVGA: 30fps、CIF：60fps
Sensitivity：0.6V/Lux-sec
S/N Ratio：40dB
Dynamic Range：50dB
Scan Mode：Progressive
Maximum exposure interval：1247 x t（Row）
Gamma Correction：Programmable
Pixel Size：2.2 μm x 2.2μm
Dark Current：15 mV/s at 60°C
Well Capacity： 12 Ke
Fixed Pattern Noise<1% of V（PEAK-TO-PEAK）
Image Area: 3590 um X 2684 um

Package included：
2 x OV2640 Camera Module

Note：This camera module only leads some of the pins of the CSP packaged sensor chip and adds an optical lens. There is no integrated peripheral components, so you need to design it yourself.
