System - Replacement Spring-Loaded Locking Pin

(No ratings yet)
System - Replacement Spring-Loaded Locking PinSystem Replacement Spring Loaded Locking Pin
Home Decor Style:ReplacementLockingPin

Key item features

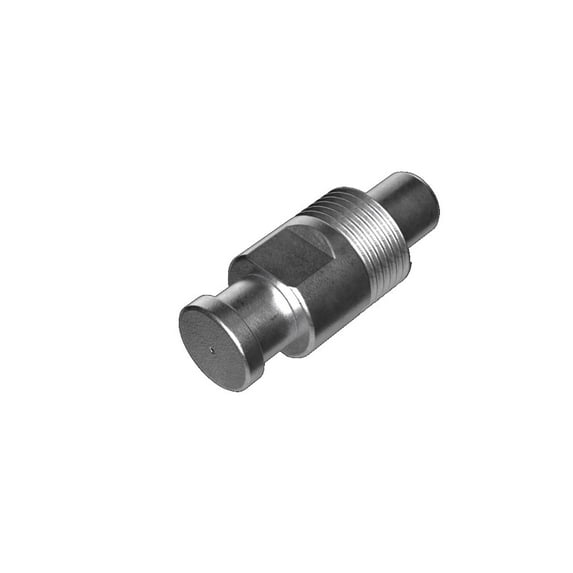

  • PTO Compact - Locking Pin (Replacement part - Stainless Steel, Spring-Loaded. Auto-lock and Easy-pull design when coupling the PTO System. The Compact System - Tractor (Female) Coupler comes pre-installed with a Spring-loaded Locking Pin. This pin assembly engages with the Implement (Male) Coupler for the initial locking connection to prevent the two couplers from uncoupling. This Pin provides a quick-locking spring-loaded feature when connecting the two couplers together.
  • FOR USE: as a replacement for the PTO Compact Tractor (Female) Coupler. CONNECTION TIP: When using the tractor’s freewheeling PTO feature, rotate the tractor coupler clockwise. If the implement turns, rotate the implement coupler counterclockwise. If both the PTO and implement turn, both couplers can be rotated simultaneously. Rotate the opposite way for disconnecting once head of Locking Pin is fully pulled (toward the tractor), to disengage the couplers.
  • DIMENSIONS: (2” L x 0.75” W) (1/2” Threads) WEIGHT: 2.3 oz
  • EASY REPLACEMENT: When replacing, use Loctite Threadlocker 271 Red (INCLUDED) on housing threads and wrench tighten housing to coupler-plate. Wipe away excess Loctite Threadlocker Red 271 from the top and bottom of the Locking Pin.
  • IMPORTANT INSTRUCTIONS: Remove the installed Locking Pin housing from the tractor coupler with vise-grips or 5/8” open-end wrench. Heat may need to be applied to the Locking Pin’s housing and coupler threads for removal.
Current price is $46.38
Price when purchased online
  • Free shipping
  • Free 30-day returns

How do you want your item?

How do you want your item?
Columbus, 43215
Arrives between Mar 18 - Mar 21
|
Sold and shipped by CrunchCove
3.5 stars out of 5, based on 6 seller reviews(3.5)
Report an issue with this seller
Free 30-day returns - in store or online
