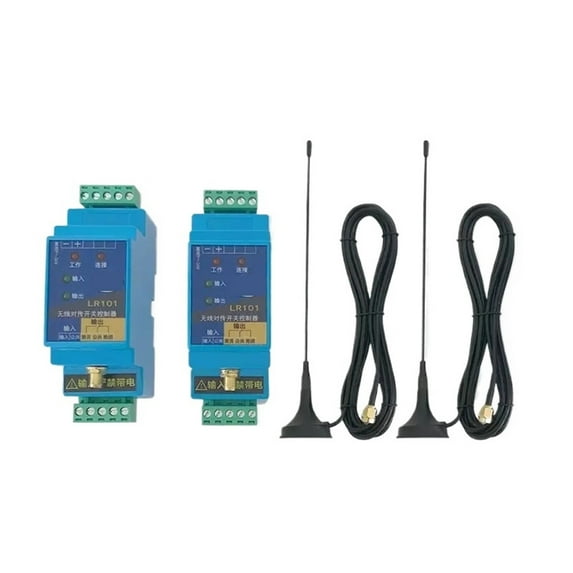

Switch Quantity Wireless Transmission Module Remote Control Relay Output Water Pump Float Control Switch Remote Control ,Quick Response
Key item features
- Ultra-long wireless transmission distance: supports wireless transmission distance of up to 5000 meters (in open space), suitable for remote control and data transmission
- Flexible antenna options: SMA antenna base (external thread inner hole) and 470 suction cup antenna are available to meet different application requirements
- Wide operating voltage range: The operating voltage range is from 9V to 36V DC, which can adapt to a variety of power supply environments, and the maximum power consumption is only 2W, which is energy-saving and efficient
- High load output capacity: DO output supports AC 277 5A and DC 28 5A, which can drive larger loads to meet the needs of industrial applications
- Solid and compact design: It has a wide operating temperature range of -20 to +85, strong humidity adaptability (10-90% RH), and a compact housing with a size of only 88mm × 37mm × 59mm, suitable for installation and use in various environments
Specs
BrandEugene Color
ColorNo adapter
- Free shipping
Free 30-day returns
How do you want your item?
About this item
Product details
Wireless module parameters
Working frequency: 398 ~ 525
Wireless transmission distance: 5000m (open space)
Antenna options:
SMA antenna base (external thread inner hole)
470 suction cup antenna
Electrical parameters
Working voltage: 9-36V DC (maximum power consumption of the module is about 2W)
DI input: supports NPN type switch or dry contact switch (short-circuit DI and COM terminals)
Hardware parameters
DO output:
AC 277 5A
DC 28 5A
Port: 5.08mm pitch-in terminal
Environmental parameters
Working temperature: -20 ~ +85
Humidity: 10-90% RH (no condensation)
Casing and weight
Casing size: 88mm × 37mm × 59mm
Weight: about 50g
Related Products:
wireless crane remote,industrial wireless remote control,crane hoist remote,industrial remote control,crane remote control,12v hoist kit,industrial remote,industrial remote control wireless,crane wireless remote control,crane controller
- Ultra-long wireless transmission distance: supports wireless transmission distance of up to 5000 meters (in open space), suitable for remote control and data transmission
- Flexible antenna options: SMA antenna base (external thread inner hole) and 470 suction cup antenna are available to meet different application requirements
- Wide operating voltage range: The operating voltage range is from 9V to 36V DC, which can adapt to a variety of power supply environments, and the maximum power consumption is only 2W, which is energy-saving and efficient
- High load output capacity: DO output supports AC 277 5A and DC 28 5A, which can drive larger loads to meet the needs of industrial applications
- Solid and compact design: It has a wide operating temperature range of -20 to +85, strong humidity adaptability (10-90% RH), and a compact housing with a size of only 88mm × 37mm × 59mm, suitable for installation and use in various environments
Specifications
Brand
Color
Has written warranty
Assembled product weight
Warranty
Warranty information
Similar items you might like
Based on what customers bought
URC Base Station for URC Complete Control $249.99
$24999current price $249.99URC Base Station for URC Complete Control
FlashLogic FLRSGX 3x Lock RS Module with Optional Long-Range Remote RF Kit $213.32
$21332current price $213.32FlashLogic FLRSGX 3x Lock RS Module with Optional Long-Range Remote RF Kit
Blue2 Bluetooth Switch $260.00
$26000current price $260.00Blue2 Bluetooth Switch
Programmable Memory Function DC Laboratory Power Supply Adjustable Voltage Regulator Stabilizer Switching Source ,Low-loss $165.05
8 optionsAvailable in additional 8 options$16505current price $165.05Programmable Memory Function DC Laboratory Power Supply Adjustable Voltage Regulator Stabilizer Switching Source ,Low-loss
DC 12/24/36 4CH Wireless Remote Control Switch Radio Receiver With 2000M Long Distance Remote Controller Suckers Antenna ,Quick Response $60.78
5 optionsAvailable in additional 5 options$6078current price $60.78DC 12/24/36 4CH Wireless Remote Control Switch Radio Receiver With 2000M Long Distance Remote Controller Suckers Antenna ,Quick Response
5V DIY Humidifier Kit Mist Maker Module Controller Part Circuit Board Nebulizers $10.93
$1093current price $10.935V DIY Humidifier Kit Mist Maker Module Controller Part Circuit Board Nebulizers
433Mhz Wireless Remote Control Transmitter and Receiver Module Set $9.15
$915current price $9.15433Mhz Wireless Remote Control Transmitter and Receiver Module Set
3 Axises Motion Trackings Sensorings Module I2C SPI Communication for UAV Navigation Control Systems $8.92
$892current price $8.923 Axises Motion Trackings Sensorings Module I2C SPI Communication for UAV Navigation Control Systems
Electric Sprayer Governor 12V Water Pump Speed Regulator Rotary Switches $8.07
$807current price $8.07Electric Sprayer Governor 12V Water Pump Speed Regulator Rotary Switches

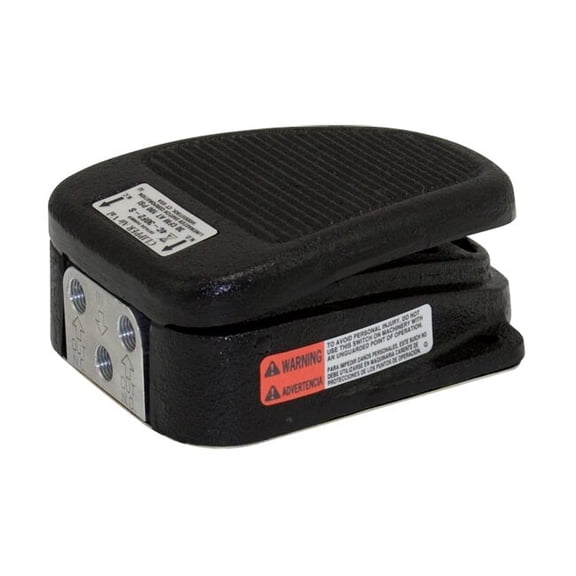

Linemaster Foot Switch, Air Air Foot Swit 4C-30F2-S $238.57
$23857current price $238.57Linemaster Foot Switch, Air Air Foot Swit 4C-30F2-S
Voltage Regulator AC 4000W Compact Variable Voltage Controller Portable Speed Temperature Light Voltage Adjuatable Dimmer ,Low-loss $61.21
$6121current price $61.21Voltage Regulator AC 4000W Compact Variable Voltage Controller Portable Speed Temperature Light Voltage Adjuatable Dimmer ,Low-loss
FZ2009B Handset Digital Console Programming Unit Programmer Compatible with ZAPI H0 H2B Dual AC2 Motor Controller $293.00
$29300current price $293.00FZ2009B Handset Digital Console Programming Unit Programmer Compatible with ZAPI H0 H2B Dual AC2 Motor Controller
Schlage MT11-485 Multi-Technology Reader Mullion Mount - Black $271.05
$27105current price $271.05Schlage MT11-485 Multi-Technology Reader Mullion Mount - Black
Switch Maintain Optimal Timing With 156T1978A Time Switch Replacement Trippers Pack Of 20 for Intermatic T100 Series $8.91 Was $14.02
$891current price $8.91, Was $14.02$14.02Switch Maintain Optimal Timing With 156T1978A Time Switch Replacement Trippers Pack Of 20 for Intermatic T100 Series
Antunes 7001319 Switch Sensor Bracket Assembly $177.27
$17727current price $177.27Antunes 7001319 Switch Sensor Bracket Assembly

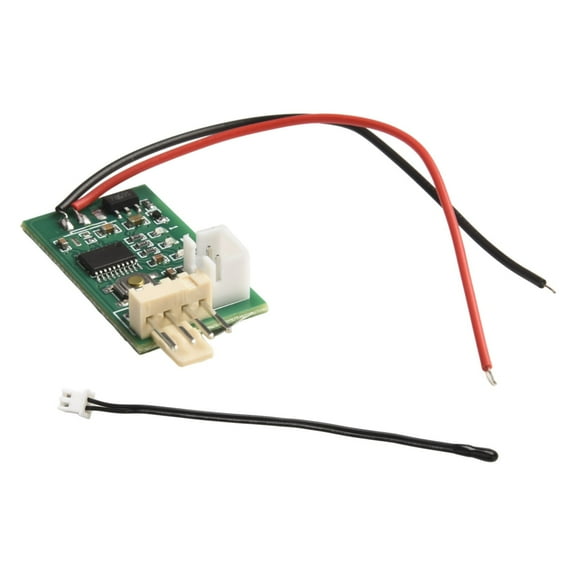

VHM-802 12V PWM PC Fan Temperature Control Speed Controller Governor Module $9.20
