Stepper Motor Driver Controller Module - DC 5-30V 4A Reverse Pulse Speed Control
Key item features
- SINGLE AXIS CONTROL SYSTEM】 This stepper motor driver controller offers efficient control over single-axis movements, perfect for robotics and automation projects.
- USER-FRIENDLY ADJUSTMENTS】 Easily adjust parameters like delay, speed, angle, and distance to achieve desired motion characteristics tailored to your needs.
- MULTI-MODE FUNCTIONALITY】 With several built-in operation modes, you can quickly select the optimal trajectory while saving configurations during power interruptions.
- DESIGNED FOR COMMON MOTORS】 Works seamlessly with Nema17/23 stepper motors and supports a DC power supply range of 10-30V with a maximum drive capacity of 4A.
- INSTALLATION DIMENSIONS】 Be sure to verify that the size of the module (79mm x 43mm x 41mm) fits your setup requirements.
- Stepper Motor Drive Controller for Smooth Acceleration and Deceleration
Specs
BrandRainbow Accessories
Weight0.02 lb
- Free shipping
Free 30-day returns
How do you want your item?
Similar items you might like
Based on what customers bought
DC 10-55V 40A PWM DC Motor Speed Controller Wireless Remote Forward Reverse TimeTAPDRA Spare Part $29.59
$2959current price $29.59DC 10-55V 40A PWM DC Motor Speed Controller Wireless Remote Forward Reverse TimeTAPDRA Spare Part
DM542 Stepper Motor Controller 2-phase Digital Stepper Motor Drive TdJ NrEIGWA $30.58
$3058current price $30.58DM542 Stepper Motor Controller 2-phase Digital Stepper Motor Drive TdJ NrEIGWA
2pcs 3-phase DC7-24V 200W Brushless Motor Driver BLDC ESC Speed Controller TAPDRA Spare Part $29.03
$2903current price $29.032pcs 3-phase DC7-24V 200W Brushless Motor Driver BLDC ESC Speed Controller TAPDRA Spare Part
GLFS Digital PWM Motor Speed Controller DC 12V 24V 36V 48V Time Forward Reverse 40A $26.86
$2686current price $26.86GLFS Digital PWM Motor Speed Controller DC 12V 24V 36V 48V Time Forward Reverse 40A
Clearance DC 12V 24V 36V 48V SoftStart Reversible Motor Speed Control PWM Controller P $11.44 Was $12.78
Clearance
$1144current price $11.44, Was $12.78$12.78DC 12V 24V 36V 48V SoftStart Reversible Motor Speed Control PWM Controller P
DC 12V 24V 36V 48V SoftStart Reversible Motor Speed Control PWM Controller P $12.46
$1246current price $12.46DC 12V 24V 36V 48V SoftStart Reversible Motor Speed Control PWM Controller P
DC6-24V 1000W BLDC 3 Phase Brushless Motor Driver Hallless Motor Drive Board Speed Controller Speed Controllers $19.60
$1960current price $19.60DC6-24V 1000W BLDC 3 Phase Brushless Motor Driver Hallless Motor Drive Board Speed Controller Speed Controllers
PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Regulator Switch $7.76
$776current price $7.76PWM DC Motor Speed Controller 6V 12V 24V 28V 3A Speed Regulator Switch
Digital PWM Motor Speed Controller DC 12V 24V 36V 48V Time Forward Reverse 40A TAPDRA Accessory Part $22.94
$2294current price $22.94Digital PWM Motor Speed Controller DC 12V 24V 36V 48V Time Forward Reverse 40A TAPDRA Accessory Part
SMC02 Stepper Motor Speed Controller Driver Module with LCD Display Forward Reverse Pulse Control for Industrial Applications $23.61
$2361current price $23.61SMC02 Stepper Motor Speed Controller Driver Module with LCD Display Forward Reverse Pulse Control for Industrial Applications
Servo Stepper Motor HF020: Writing Angle Positioning and Pulse Speed Control Without RS485 Expansion,1 * controller,Black $16.74
$1674current price $16.74Servo Stepper Motor HF020: Writing Angle Positioning and Pulse Speed Control Without RS485 Expansion,1 * controller,Black
15 out of 5 Stars. 1 reviewsDC 10-55V 60A PWM Motor Speed Controller $19.10
$1910current price $19.10DC 10-55V 60A PWM Motor Speed Controller
12-30VDC 7A PWM DC Motor Speed Controller Regulator with On-board Potentiometer and On/Off Switch $8.49
$849current price $8.4912-30VDC 7A PWM DC Motor Speed Controller Regulator with On-board Potentiometer and On/Off Switch
DC 5-30V 4A Stepper Motor Driver Controller Integrated Board Forward/Reverse Pulse Speed Angle Control Module PLC Serial Communication for 17 23 Motor $34.90
$3490current price $34.90DC 5-30V 4A Stepper Motor Driver Controller Integrated Board Forward/Reverse Pulse Speed Angle Control Module PLC Serial Communication for 17 23 Motor

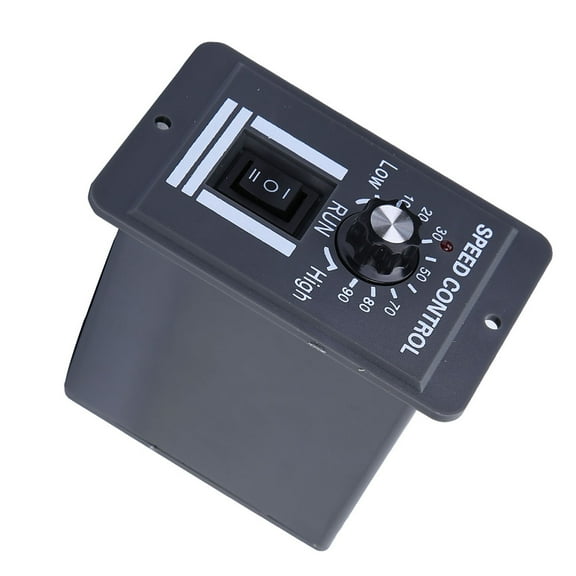

Motor Speed Regulator, 40A DC Controller, for $21.12
$2112current price $21.12Motor Speed Regulator, 40A DC Controller, for
DC6-24V 1000W BLDC 3 Phase Brushless Motor Driver Hallless Speed Controller Regulator with Potentiometer Switches $18.11
$1811current price $18.11DC6-24V 1000W BLDC 3 Phase Brushless Motor Driver Hallless Speed Controller Regulator with Potentiometer Switches
High Power PWM Motor Speed Controller 60A Drive Module for 10-60V DC Motors Speed Regulator Controller $12.85
$1285current price $12.85High Power PWM Motor Speed Controller 60A Drive Module for 10-60V DC Motors Speed Regulator Controller

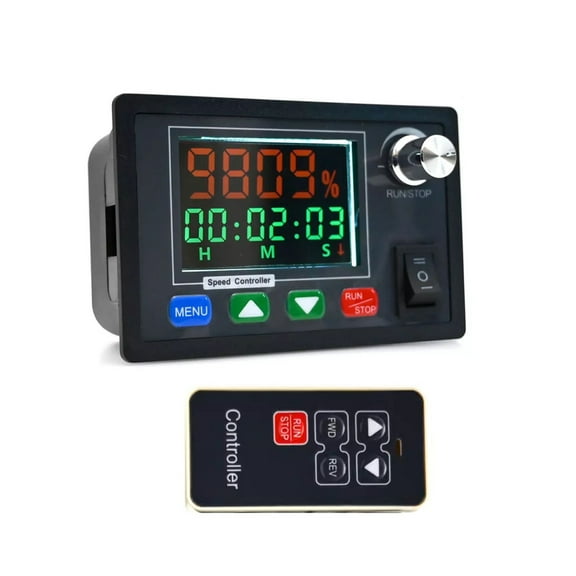

CSYANXING 10-55V 40A PWM DC Motor Speed Controller with Wireless Remote LCD Display for Brush Motors Forward Reverse Control $28.19
$2819current price $28.19CSYANXING 10-55V 40A PWM DC Motor Speed Controller with Wireless Remote LCD Display for Brush Motors Forward Reverse Control

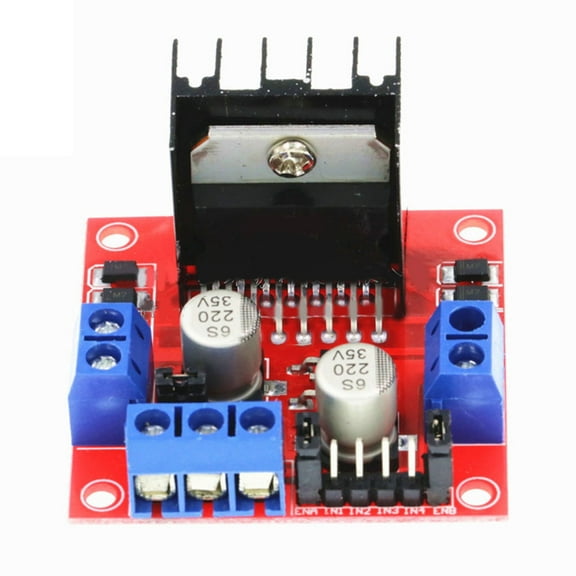

2023 L298N Motor Driver Board Module DC Stepper Motor Controller For Stepper Motor Smart Car Robot 5V 25W Driver Power Supply $7.47
$747current price $7.472023 L298N Motor Driver Board Module DC Stepper Motor Controller For Stepper Motor Smart Car Robot 5V 25W Driver Power Supply
42 57 Stepper Motor Controller Positive Reverse Angle Pulse Speed Control Board Programmable PLC Serial Communication,1 x Stepper Motor Controller,black $14.69
$1469current price $14.6942 57 Stepper Motor Controller Positive Reverse Angle Pulse Speed Control Board Programmable PLC Serial Communication,1 x Stepper Motor Controller,black
About this item
Product details
Features:
* Single-axis stepper motor control module.
* Can be directly connected to stepper motor.
* Adjustable delay/speed/angle/distance.
* Built-in multiple fixed operation modes, can quickly select the appropriate motion trajectory, can save and set distance/speed/delay/number of cycles when power is off.
Specifications:
Part name: stepper motor controller + driver
Material: ABS + metal
Color: as shown in the figure
Size: 79mm*43mm*41mm
Applicable motor: 42/57 stepper motor (Nema17/23 motor)
Number of axes: single axis
Motor signal: common cathode
Power supply: DC 10-30V
Drive capacity: 4A (MAX)
Instruction characteristics: streamlined optimization of multiple common instructions
Acceleration and deceleration: yes
Main functions of the system: automatic/manual/setting/serial control
Speed range: 0.1-999 rpm
Number of forward and reverse pulses: 1-9999
Number of cycle working times: 1-9999
Forward and reverse delay time: 0.0-999.9 seconds
Subdivision selection range: 1-32
Working temperature range: -5℃~60℃ (no condensation)
Subdivision: 1/2/4/8/16/32
Precautions;
It can be used in general industrial control occasions, but not in special industries such as treatment and fire protection or life-critical fields.
If P01 working mode is , the motor can only work when the potentiometer is rotated. Please read the PDF document for relevant instructions before use.
The speed needs to be set according to the parameters of F-02, F-03, F-04, F-05, F-09, F-12 and the red toggle switch; after the speed is set, the speed during operation cannot be changed.
In normal operation, the potentiometer can only control the direction of rotation, not the speed of rotation.
Package Contents:
1 x Motor Drive Controller
Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
