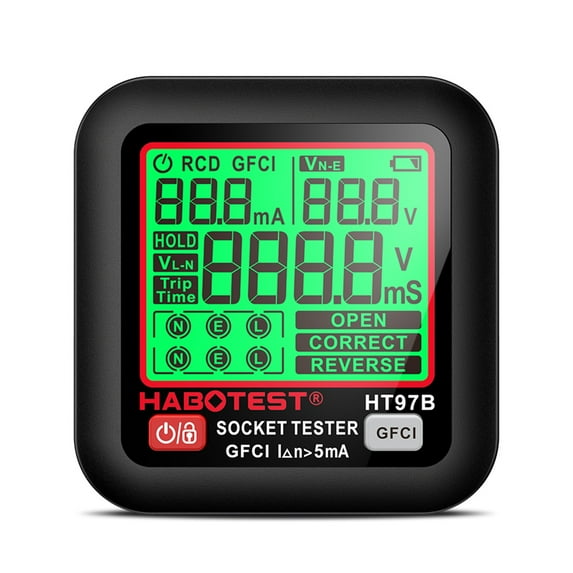

Socket Tester,Socket Tester Test Socket
(No ratings yet)
Key item features
- SOCKET WIRING SEQUENCE TEST: Insert the tester into a standard three-pin power socket. If a wiring sequence error is detected, the orange backlight will illuminate to indicate a wiring error. Refer to the display to identify the specific type of wiring error.
- DATA RETENTION: After inserting into the socket, the data automatically locks after three seconds. Once locked, press the unlock button to release the data.
- SIMPLE OPERATION: Simply insert the tester into an already powered three-pin socket. The socket wiring condition and AC voltage can be easily determined based on the information displayed on the instrument screen.
- AUTOMATIC SHUTDOWN: If there is no operation within 5 minutes of powering on, the instrument will automatically shut down.
- LEAKAGE SWITCH DETECTION: Insert the tester into a three-pin socket, ensuring that the display indicates correct wiring. Press and hold the RCD button for more than 2 seconds. In this case, a functioning residual current device (RCD) should trip, displaying the ripping time. The button indicator willflash, indicating the completion of the tripping process. If it does not trip, it suggests a malfunction in the residual current device.
Specs
- BrandBisofice
- Dimensions3.35 x 2.95 x 2.95 Inches
- Weight0.278 lb
- Piece count1
Current price is USD$15.68
Price when purchased online
Out of stock
How do you want your item?
Out of stock
About this item
Product details
HABOTEST HT97B Digital Socket Tester Voltage Test US Plug Socket Detector Intelligent Leakage Testing Multifunctional Phase Tester Insert tester into a three-pin socket, ensuring that display indicates correct wiring. Press and hold RCD button for more than 2 seconds. In this case, a functioning residual current device (RCD) should trip, displaying ripping time. button indicator willflash, indicating completion of tripping process. If it does not trip, it suggests a malfunction in residual current device. Can be used to inspect safety of socket wiring in homes, offices, shopping malls, and other places. After inserting into socket, data automatically locks after three seconds. Once locked, press unlock button to release data. high-definition backlit display screen ensures clear visibility of measurement content even in dimenvironments, providing a clear and easily understandable view of test results. Simply insert tester into an already powered three-pin socket. socket wiring condition and AC voltage can be easily determined based on information displayed on instrument screen. Insert tester into a standard three-pin socket. If a wiring sequence error is detected, orange backlight will illuminate to indicate a wiring error. Refer to display to identify specific type of wiring error. If there is no operation within 5 minutes of powering on, instrument will automatically shut down. Rated safety level CAT II 300V ensures usage and quality assurance.
Specifications:
Package Size: 7.5 * 7.5 * 8cm / 2.95 * 2.95 * 3.15in
Leakage Voltage : 0~99V/45~65Hz, ±(2.0%+2); 0~99V/45~65Hz, ±(2.0%+2); 0~99V/45~65Hz, ±(2.0%+2)
Voltage : AC30~260V/45~65Hz, ±(2.0%+2); AC30~260V/45~65Hz, ±(2.0%+2); AC30~260V/45~65Hz, ±(2.0%+2)
GFCI Test: 5mA (HT97B)
Safety Rating: EN61010-1, -2-030; EN61326-1, CAT II 300V
RCD Test: 30mA (HT97D & HT97E)
7. Live wire and ground wire reverse, missing ground wire
Item Weight: 92g / 3.24oz
Package Weight: 127g / 4.47oz
Model: HT97B / HT97D / HT97E (Optional)
Voltage Measurement (48V~250V/45~65Hz): Yes
Socket Connection Detection:
1. 10-1000mS, ±(2.0%+4)
Item Size: 67 * 65 * 63mm / 2.63 * 2.56 * 2.48in
6. Live wire and neutral wire reverse
Supply: 2 * 1.5V AAA batteries (Not included)
Backlight: Yes
5. Live wire and ground wire reverse
2. Open ground
4. Open live
LCD Display: Yes
3. Open neutral
Material: ABS
Trip Time Test: 10-1000mS, ±(2.0%+4); 10-1000mS, ±(2.0%+4); 10-1000mS, ±(2.0%+4)
Plug: / / UK (Optional)
Package List:
1 * Socket Tester
1 * User Manual (English)
Specifications:
Package Size: 7.5 * 7.5 * 8cm / 2.95 * 2.95 * 3.15in
Leakage Voltage : 0~99V/45~65Hz, ±(2.0%+2); 0~99V/45~65Hz, ±(2.0%+2); 0~99V/45~65Hz, ±(2.0%+2)
Voltage : AC30~260V/45~65Hz, ±(2.0%+2); AC30~260V/45~65Hz, ±(2.0%+2); AC30~260V/45~65Hz, ±(2.0%+2)
GFCI Test: 5mA (HT97B)
Safety Rating: EN61010-1, -2-030; EN61326-1, CAT II 300V
RCD Test: 30mA (HT97D & HT97E)
7. Live wire and ground wire reverse, missing ground wire
Item Weight: 92g / 3.24oz
Package Weight: 127g / 4.47oz
Model: HT97B / HT97D / HT97E (Optional)
Voltage Measurement (48V~250V/45~65Hz): Yes
Socket Connection Detection:
1. 10-1000mS, ±(2.0%+4)
Item Size: 67 * 65 * 63mm / 2.63 * 2.56 * 2.48in
6. Live wire and neutral wire reverse
Supply: 2 * 1.5V AAA batteries (Not included)
Backlight: Yes
5. Live wire and ground wire reverse
2. Open ground
4. Open live
LCD Display: Yes
3. Open neutral
Material: ABS
Trip Time Test: 10-1000mS, ±(2.0%+4); 10-1000mS, ±(2.0%+4); 10-1000mS, ±(2.0%+4)
Plug: / / UK (Optional)
Package List:
1 * Socket Tester
1 * User Manual (English)
- SOCKET WIRING SEQUENCE TEST: Insert the tester into a standard three-pin power socket. If a wiring sequence error is detected, the orange backlight will illuminate to indicate a wiring error. Refer to the display to identify the specific type of wiring error.
- DATA RETENTION: After inserting into the socket, the data automatically locks after three seconds. Once locked, press the unlock button to release the data.
- SIMPLE OPERATION: Simply insert the tester into an already powered three-pin socket. The socket wiring condition and AC voltage can be easily determined based on the information displayed on the instrument screen.
- AUTOMATIC SHUTDOWN: If there is no operation within 5 minutes of powering on, the instrument will automatically shut down.
- LEAKAGE SWITCH DETECTION: Insert the tester into a three-pin socket, ensuring that the display indicates correct wiring. Press and hold the RCD button for more than 2 seconds. In this case, a functioning residual current device (RCD) should trip, displaying the ripping time. The button indicator willflash, indicating the completion of the tripping process. If it does not trip, it suggests a malfunction in the residual current device.
