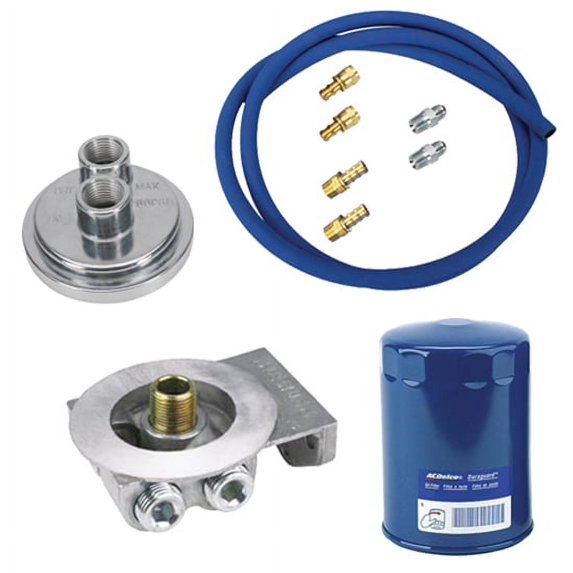

Small Block Chevy Remote Oil Filter Relocation Kit, Horizontal

Whether youre in need of an oil system that works with a tight engine compartment or you simply wish to upgrade your block mount oil filter housing, we have you covered with these remote bypass adapter kits from Speedway Motors. Kit Includes: (1) Trans-Dapt 1022 1968-Up Chevy Spin-On Oil Filter Bypass. (1) Neoprene Hose and Fitting Kit. (1) Single Remote Oil Filter Bracket, Horizontal Outlet. (1) AC Delco PF1218 Duraguard Chevy Engine Oil Filter. Spin-On Bypass Adapter Remote bypass adapters replace the bolt-on oil filter housing or the spin-on oil filter. Adapters feature 1/2" NPT female inlet/outlet threads. Fits 13/16"-16 threads. Designed to fit Small and Big Block Chevy V8''s. 3-1/8" O-ring included. Aluminum construction. 1/2" NPT Female port size. Neoprene Hose and Fitting Kit Kit includes enough -8 AN push-on neoprene/rubber hose (1/2" I.D.) to run two 48" lines from your oil filter block adapter to your remote oil filter bracket. Also includes two 1/2" NPT hose ends, two -8 AN hose ends and two 1/2" NPT to -8 AN steel fittings. One 8 ft. hose length. Two 1/2" NPT hose ends. Two -8 AN hose ends. Two 1/2" NPT to -8 AN fittings. Single Remote Oil Filter Bracket Aluminum remote oil filter bracket with vertical hose inlet/outlet. Has 1/2" NPT female hose inlet/outlet threads. This oil filter relocator is used with Chevy filters with 13/16"-16 thread (AC Delco PF35, PF932 or Fram HP4 filters). Aluminum. Horizontal hose inlet/outlet. 1/2" NPT female hose inlet/outlet threads. Spin-on type element. Accepts Chevy filters with 13/16"-16 thread. Engine Oil Filter Protect your Chevy V8 engine with this quality oil filter. Outstanding filter capacity, enhanced efficiency, consistent flow management and high-durability design help provide exceptional filtering performance. 98% single-pass efficiency at 25-30 microns. Patented cellulose media traps particles 1/3 the width of a human hair. Designed with 5x greater burst strength than most engine oil operating pressures.
