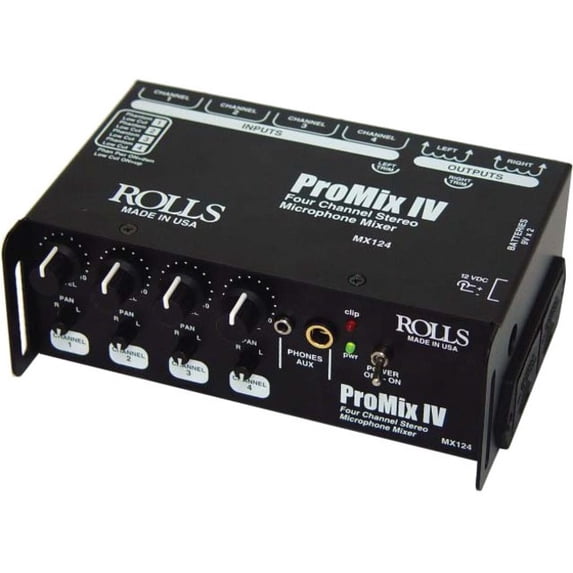

Rolls Pro-mix Iv Mx124 Audio Mixer (mx124)

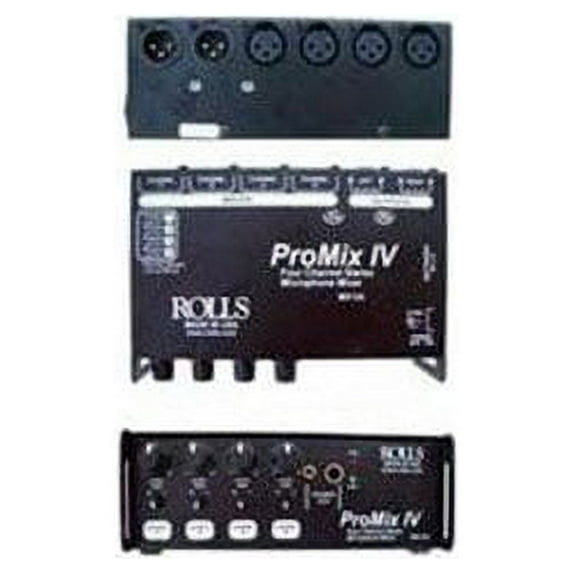

The MX124 Pro-MixIV mixes 4 microphones into two transformer balanced outputs. It has four XLR inputs, each with individually switchable phantom power, and Low Cut switches (100 Hz high pass filter), a Level control, and a Pan control. As mentioned, it has two transformer balanced, XLR outputs. A 1/4 inch Aux/Headphone output has been provided along with a Clip indicator, Power indicator, and Power switch. The unit is also powered by two 9-Volt alkaline batteries or the included 15VDC power supply.

Technical Information

Number of Channels: 4
Number of Inputs: 4
Number of Outputs: 4

Interfaces/Ports

Headphone: Yes
Microphone: Yes

Physical Characteristics

Height: 2.3"
Width: 6.3"
Depth: 3.7"
Length: 14"
Weight (Approximate): 1.50 lb

Miscellaneous

Package Contents:

• Pro-Mix IV MX124 Audio Mixer
• 15VDC Power Supply

Additional Information:

• Input Impedance: 600 Ohms
• Output Impedance: XLR 600 Ohms
• THD + Noise: .02%
• S/N Ratio: 84 dB
• Frequency Response: 25 Hz - 16 kHz (+0 / -3 dB)
• Max Output Level: + 14 dB
• Max Input Level: -14 dB
• Max Gain: +55 dB
• Low Cut: -3 dB @ 100 Hz
• Current Draw: 30 mA
• Phantom Power: +18 VDC

Application/Usage: Microphone
Country of Origin: United States

Warranty

Limited Warranty: 1 Year
