Hero image 0 of R502S Fingerprint Module Fingerprint Recognition Module Capacitive Fingerprint Module Sensor Scanner RGB Ring Indicator, 0 of 8
R502S Fingerprint Module Fingerprint Recognition Module Capacitive Fingerprint Module Sensor Scanner RGB Ring Indicator
(No ratings yet)
Key item features
- Seven-color lights, freely set
- Multiple communication interfaces to meet more application needs
- 150 fingerprints
- Image pixels are 160 x 160
- Quick identification, accurate comparison
Specs
- BrandUnbranded
- Model nameR502S
- Has written warrantyNo
- Piece count150
Current price is USD$15.66
Price when purchased online
- Free shipping
Free 30-day returns
Walmart Accident Plan by Allstate
(Only one option can be selected at a time)
How do you want your item?
Columbus, 43215
Arrives between Mar 23 - Mar 27
|Sold and shipped by Buling Life
3.81021897810219 stars out of 5, based on 137 seller reviews(3.8)137 seller reviews
Free 30-day returns
More seller options (1)
Starting from $15.66
About this item
Product details
Working voltage: DC 3.3V
Standby current (finger detection): Typical touch standby voltage: 3.3V Average current: 2uA
Working current (fingerprint collection): 20mA
Power-on start time: ≤50ms
Image size: 160 x 160 pixel
Collection area: 15.5mm diameter
Image resolution: 508 dpi
Template size: 2KB
Time to generate feature points: Less than 500 ms
Comparison time: 1:NLess than 10ms/fingerprint
Storage capacity: 150 pieces
False acceptance rate (FAR): ≤0.001%
False rejection rate (FRR): 51%
Working temperature: -20℃ ~+60℃
Storage temperature: -40℃ ~+75℃
Working humidity: 10%~85% (no condensation)
Storage humidity: Less than 85% (no condensation)
Material: Alloy
Color: As shown
Package Contents:
1 x Fingerprint Module
1 x Connection Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Standby current (finger detection): Typical touch standby voltage: 3.3V Average current: 2uA
Working current (fingerprint collection): 20mA
Power-on start time: ≤50ms
Image size: 160 x 160 pixel
Collection area: 15.5mm diameter
Image resolution: 508 dpi
Template size: 2KB
Time to generate feature points: Less than 500 ms
Comparison time: 1:NLess than 10ms/fingerprint
Storage capacity: 150 pieces
False acceptance rate (FAR): ≤0.001%
False rejection rate (FRR): 51%
Working temperature: -20℃ ~+60℃
Storage temperature: -40℃ ~+75℃
Working humidity: 10%~85% (no condensation)
Storage humidity: Less than 85% (no condensation)
Material: Alloy
Color: As shown
Package Contents:
1 x Fingerprint Module
1 x Connection Cable
Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
- Seven-color lights, freely set
- Multiple communication interfaces to meet more application needs
- 150 fingerprints
- Image pixels are 160 x 160
- Quick identification, accurate comparison
info:
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here, and we have not verified it.
Specifications
Brand
Unbranded
Model name
R502S
Has written warranty
No
Piece count
150
Warranty
Warranty information
Please be aware that the warranty terms on items offered for sale by third party Marketplace sellers may differ from those displayed in this section (if any). To confirm warranty terms on an item offered for sale by a third party Marketplace seller, please use the 'Contact seller' feature on the third party Marketplace seller's information page and request the item's warranty terms prior to purchase.
Similar items you might like
Based on what customers bought
Clearance AS608 Optical Fingerprint Sensor Module - Secure Biometric Recognition Device for Door Locks, Safes & Time Attendance - Compatible with R307 & DIY Projects $13.99 Was $16.99
Clearance
$1399current price $13.99, Was $16.99$16.99AS608 Optical Fingerprint Sensor Module - Secure Biometric Recognition Device for Door Locks, Safes & Time Attendance - Compatible with R307 & DIY Projects
Clearance USB Fingerprint Reader Window Hello Fingerprint Reader for Windows10/11 Computer User Friendly Secure Logins $16.92 Was $18.90
Clearance
$1692current price $16.92, Was $18.90$18.90USB Fingerprint Reader Window Hello Fingerprint Reader for Windows10/11 Computer User Friendly Secure Logins
Mini USB Fingerprint Reader Module Device for 10 11 Hello Biometrics Security Key $14.30
$1430current price $14.30Mini USB Fingerprint Reader Module Device for 10 11 Hello Biometrics Security Key
35 out of 5 Stars. 3 reviewsUSB Fingerprint Key Reader FIDO U2F Speedy Matching Security Key Hello Anti-Spoofing Mini Fingerprint Reader $14.82
$1482current price $14.82USB Fingerprint Key Reader FIDO U2F Speedy Matching Security Key Hello Anti-Spoofing Mini Fingerprint Reader
15 out of 5 Stars. 1 reviewsUSB Fingerprint Key Reader Advanced Security Access Window Hello Fingerprint Reader for Windows10/11 Laptops Computer $18.78
$1878current price $18.78USB Fingerprint Key Reader Advanced Security Access Window Hello Fingerprint Reader for Windows10/11 Laptops Computer
15 out of 5 Stars. 1 reviewsClearance Necvior USB Fingerprint Key Reader Window Hello Fingerprint Reader Secure Logins Solution for Windows10/11 Laptops USB Reader $14.74 Was $19.21
Clearance
$1474current price $14.74, Was $19.21$19.21Necvior USB Fingerprint Key Reader Window Hello Fingerprint Reader Secure Logins Solution for Windows10/11 Laptops USB Reader
15 out of 5 Stars. 1 reviewsUSB Fingerprint Reader Scanner Biometric Access Control Attendance System $20.17
$2017current price $20.17USB Fingerprint Reader Scanner Biometric Access Control Attendance System

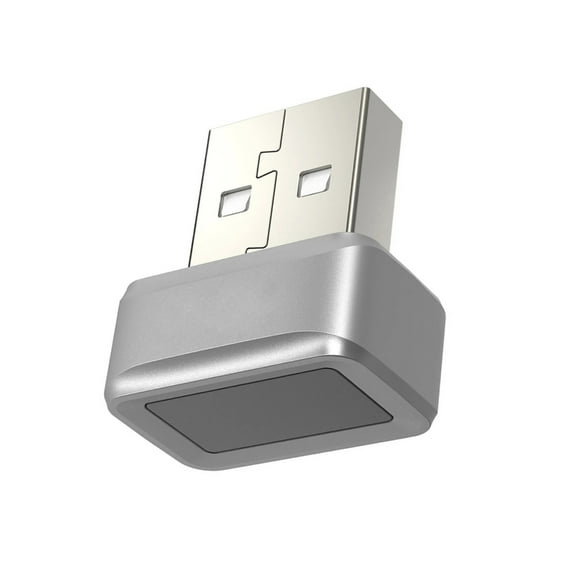

11 out of 5 Stars. 1 reviewsClearance SIEYIO USB Fingerprint Reader Fingerprint Login Device For Fast Authentication $20.48 Was $22.78
