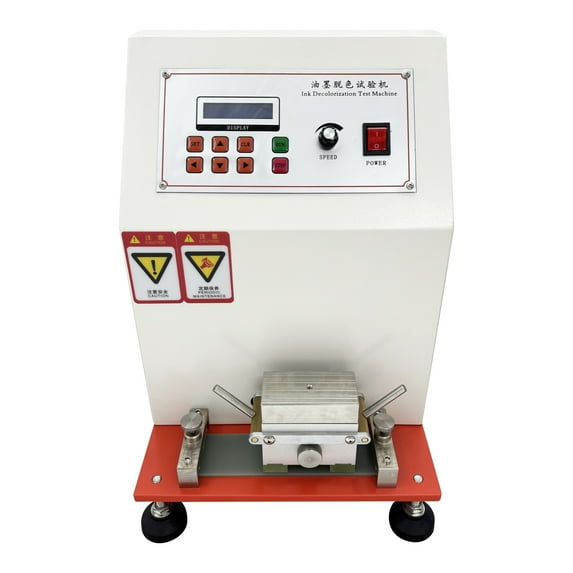

Printing Ink Abraser Friction Testing Machine Ink Decolorization Testing Machine

Product Overview:
This machine is mainly used for testing the abrasion performance and ink rub-off rate of printed materials (e.g., ink prints, packaging boxes). It applies standard load with controlled reciprocating friction speed and travel distance on the sample surface to evaluate the contamination level between sample and standard friction paper, as well as surface fluffing or abrasion damage. The instrument complies with GB/T 7706, GB 7707, JIS K5701, ASTM D5264 and TAPPI T830 standards.

Product Parameters:
Voltage: AC110V
Power: 40W
Operation Method: Microcomputer-controlled with LCD display
Test Specimen Area: Dimensions: 2.3"*9.0"(60*230mm)
Friction Speed: Adjustable speed (21/43 rpm), customizable upon request
Friction Load: 2LB, 4LB (0.9kg, 1.8kg)
Friction Stroke: 2.3" (60mm)
Cycle Count Setting: Automatic stop at 0-9999 cycles.
Friction Contact Area: 1.9"*7.8" (50*200mm)
Material: Steel
Package size: 15.7"*13.7"*25.2" (40cm*35cm*64cm)
Net weight / Gross weight: 42.5lbs(19.3kg) / 66.1lbs(30kg)

Precautions
1. The instrument must be placed on a stable, level surface before use.
2. Do not move or adjust the machine during operation.
3. Select the correct power supply voltage. Avoid excessively high voltage to prevent component damage.
4. In case of abnormal operation, please contact us immediately for troubleshooting.
5. Ensure adequate ventilation during machine operation.
6. For mechanical components (e.g., key mechanisms) under heavy load, lubricate regularly.
7. After each test, clean the machine thoroughly to maintain hygiene.
8. Only use a dry cloth to wipe the control panel. Do not use wet cloths.

Item Included (057151):
Techtongda Printing Ink Abraser Friction Testing Machine 110V
Accessory Kit *1
