PCM1808 Audio Decoder Module 24-bit ADC Board for Audio Signal Development
PCM1808 Audio Decoder Module 24-bit ADC Board for Audio Signal Development
Hero image 0 of PCM1808 Audio Decoder Module 24-bit ADC Board for Audio Signal Development, 0 of 7
XHWshop

PCM1808 Audio Decoder Module 24-bit ADC Board for Audio Signal Development

(No ratings yet)
PCM1808 Audio Decoder Module 24-bit ADC Board for Audio Signal DevelopmentPCM1808 Audio Decoder Module 24 bit ADC Board for Audio Signal DevelopmentPCM1808 Audio Decoder Module 24 bit ADC Board for Audio Signal DevelopmentPCM1808 Audio Decoder Module 24 bit ADC Board for Audio Signal DevelopmentPCM1808 Audio Decoder Module 24 bit ADC Board for Audio Signal Development
Size2PCS

Key item features

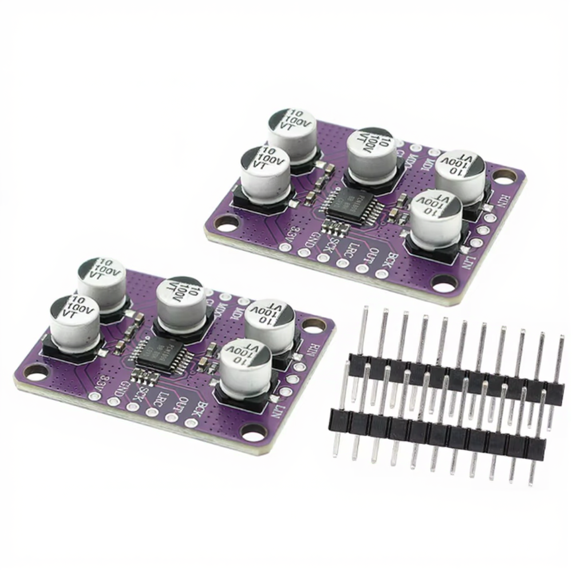

  • Complete Decoder Set: Includes 1, 2, 5, or 10 identical PCM1808-based audio decoder modules - each fully assembled on a compact 34mm x 27.2mm circuit board for immediate integration into DIY or production audio projects.
  • 24-Bit High-Fidelity Audio Conversion: Delivers precise analog-to-digital conversion using a 24-bit architecture with THDandN at 93 dB, enabling clean, detailed sound capture perfect for audiophile-grade recording and playback systems.
  • Flexible Analog Input Compatibility: Accepts single-ended 3 Vpp analog input signals, making it compatible with line-level sources such as turntables, mixers, and preamps - well-suited for home studios and embedded audio applications.
  • 64x Oversampling Digital Filter: Integrates an advanced decimation filter with and/-0.05 dB passband ripple and 65 dB stopband attenuation to preserve signal integrity and minimize aliasing during high-resolution audio processing.
  • Dual-Supply Operation and I2S Interface: Supports independent 5V analog and 3.3V digital power rails plus selectable master/slave operation with 24-bit I2S and Left-Justified output formats - optimized for custom audio hardware development and modular system expansion.
Current price is $10.81
