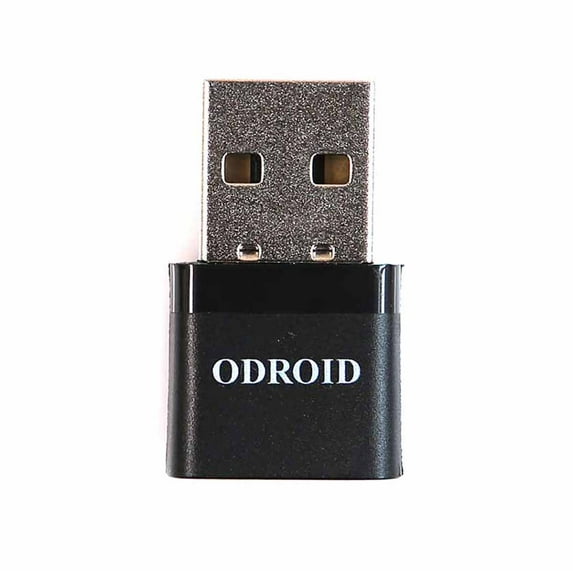

ODROID USB WiFi Module 5BK
Key item features
- Same Realtek RTL8821CU chipset as Wifi Module #5B
- 2.4Ghz and 5.8Ghz Dual band antenna
- Removed the CD-ROM mode so you can skip the usb-modeswitch tweak with this 5BK model
- Works with the ODROID series and Android and Linux operating systems
- LED for WiFi Link Activity
Specs
- BrandODROID
- Dimensions28.00 x 16.00 x 7.00 Millimeters
- Has written warrantyNo
How do you want your item?
About this item
Product details
Key Features
- Same Realtek RTL8821CU chipset as Wifi Module #5B
- 2.4Ghz and 5.8Ghz Dual band antenna
- Removed the CD-ROM mode so you can skip the usb-modeswitch tweak with this 5BK model
- Works with the ODROID series and Android and Linux operating systems
- LED for WiFi Link Activity
WIFI Module #5BK uses the same chipset (Realtek RTL8821CU) as WIFI Module #5B, so it is 100% compatible. IEEE 802.11ac/a/b/g/n WLAN and Bluetooth combo module with on-board 2.4Ghz and 5.8Ghz Dual band antenna.
Only one minor difference from the previous 5B model is that doesn’t have a CD-ROM mode. So, we can skip the usb-modeswitch tweak.
Works with ODROID series, Compatible with Android and Linux. (Please update your OS to the latest version if it doesn’t work.
Item Specifics
Realtek RTL8821CU chipset ( USB ID = 0BDA:C820, No CDROM mode )
Dual-Band 11ac 1×1 with 64/128/152 bit WEP, WPA/WPA-PSK,WPA2/WPA2-PSK securities
Frequency Range: 2.4-2.483GHz ; 5.725~5.825GHz
Support WLAN Standards: IEEE802.11ac/a/b/g/n
Transfer Speed : ~200 Mbps
Support Bluetooth 2.1/3.0/4.2 (No BLE)
USB 2.0 High-Speed host interface
Antenna Gain: 2dBi
Dimension : 28 x 16 x 7 mm
LED for WiFi Link Activity
Frequency Range: 2.4-2.483GHz ; 5.725~5.825GHz
Weight : 5 g
- Same Realtek RTL8821CU chipset as Wifi Module #5B
- 2.4Ghz and 5.8Ghz Dual band antenna
- Removed the CD-ROM mode so you can skip the usb-modeswitch tweak with this 5BK model
- Works with the ODROID series and Android and Linux operating systems
- LED for WiFi Link Activity
Specifications
Brand
Dimensions
Has written warranty
Warranty
Warranty information
Similar items you might like
Based on what customers bought
USB Recording Module (Multi Sound Files per Button) $25.88
$2588current price $25.88USB Recording Module (Multi Sound Files per Button)

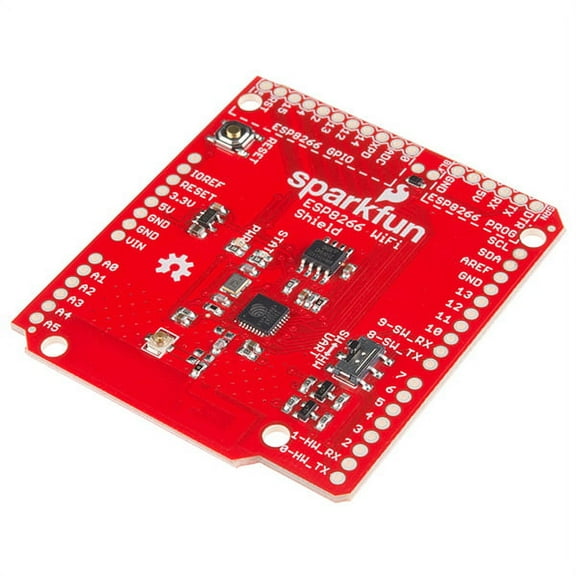

SparkFun WiFi Shield - ESP8266 $27.69
$2769current price $27.69SparkFun WiFi Shield - ESP8266
Mikroelektronika RS485 Click 3.3V MIKROE-989 $17.99
$1799current price $17.99Mikroelektronika RS485 Click 3.3V MIKROE-989

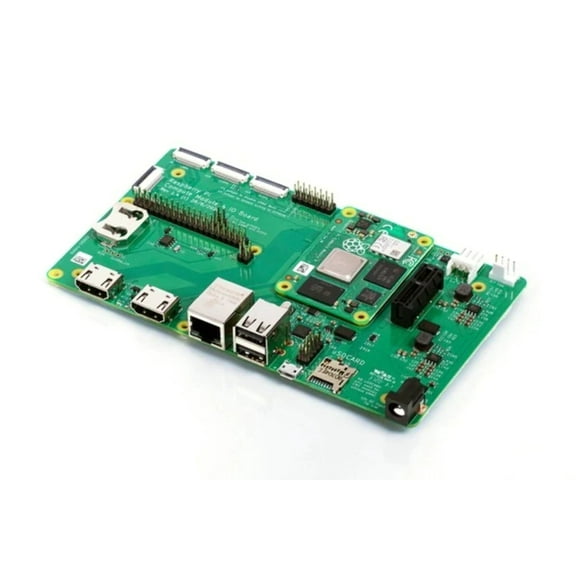

Compute Module 4 IO Board $49.99
$4999current price $49.99Compute Module 4 IO Board

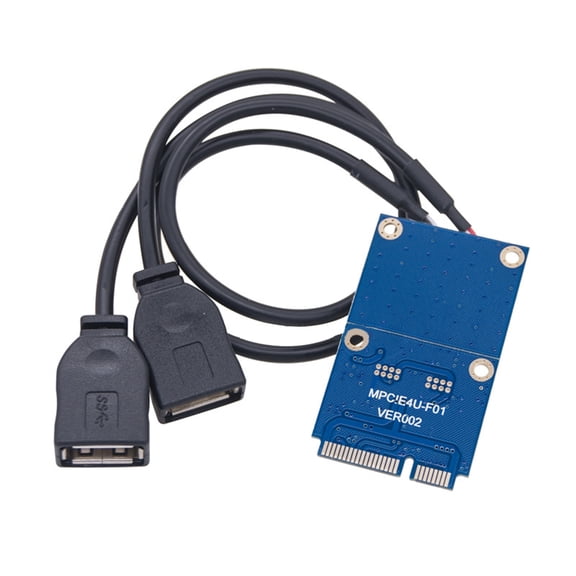

Portable Mini PCIe to USB Converters Cable M.2Wifi KEY A E to USBCord for Laptop $12.86
4 optionsAvailable in additional 4 options$1286current price $12.86Portable Mini PCIe to USB Converters Cable M.2Wifi KEY A E to USBCord for Laptop

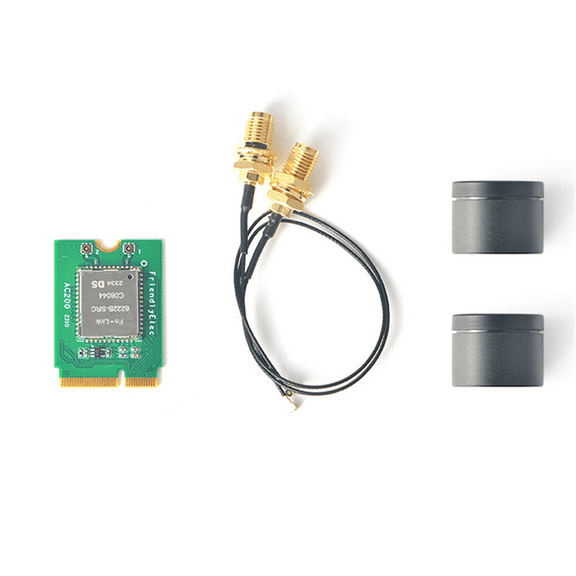

M.2 SDIO WiFi Module AC200 for R2S Plus $17.95
$1795current price $17.95M.2 SDIO WiFi Module AC200 for R2S Plus
ProffieBoard v2.2 (Black) $29.95 Was $59.95
$2995current price $29.95, Was $59.95$59.95ProffieBoard v2.2 (Black)
15 out of 5 Stars. 1 reviewsCJMCU Card Slot Memory Badusb USB Virtual Keyboard ATMEGA32U4 Module for for $13.87
$1387current price $13.87CJMCU Card Slot Memory Badusb USB Virtual Keyboard ATMEGA32U4 Module for for
GOOHOCHY Lcd Display Modules 1602a Blue 1Pack $6.18
$618current price $6.18GOOHOCHY Lcd Display Modules 1602a Blue 1Pack
SIEYIO M2 E Key to miniPCIe Adapter for Mounting M.2 2230 WiFi Bluetooth Card $7.12
2 optionsAvailable in additional 2 options$712current price $7.12SIEYIO M2 E Key to miniPCIe Adapter for Mounting M.2 2230 WiFi Bluetooth Card
Compact 5V5A PD Power Module for RPI 5 Development Boards and Soft Router $21.81
$2181current price $21.81Compact 5V5A PD Power Module for RPI 5 Development Boards and Soft Router

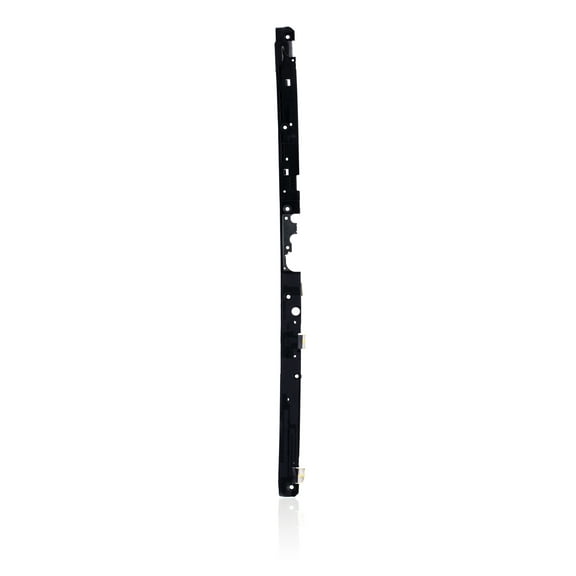

Replacement WiFi Antenna Bracket Compatible For Microsoft Surface 3 (1645) $28.37
$2837current price $28.37Replacement WiFi Antenna Bracket Compatible For Microsoft Surface 3 (1645)

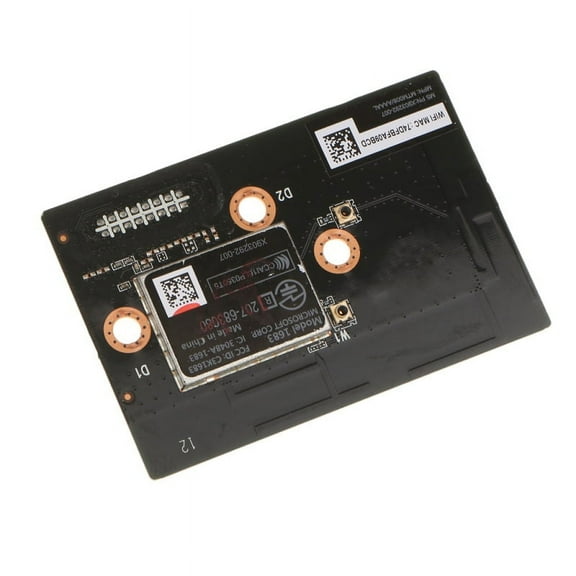

1 Piece Bluetooth Wireless Wifi Module Internal PCB Board Card for XBOX $12.99
$1299current price $12.991 Piece Bluetooth Wireless Wifi Module Internal PCB Board Card for XBOX
75 Second USB Recording Module (Windows 10 Compatible) $19.95
$1995current price $19.9575 Second USB Recording Module (Windows 10 Compatible)
Hochwertiger Usb -Programmierer Ch341A Soic8 Clip Adapter Y0Z3 Soic8 E4J3 $12.58
$1258current price $12.58Hochwertiger Usb -Programmierer Ch341A Soic8 Clip Adapter Y0Z3 Soic8 E4J3
Raspberry Pi Camera Module 3 $59.99
2 optionsAvailable in additional 2 options$5999current price $59.99Raspberry Pi Camera Module 3

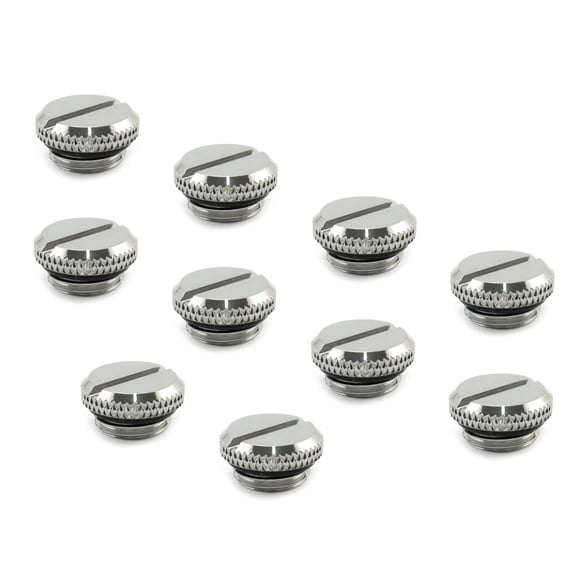

XSPC G1/4" Plug Fitting V2, Chrome, 10-pack $21.99
$2199current price $21.99XSPC G1/4" Plug Fitting V2, Chrome, 10-pack
Usb Charging Port Board For -055 With 12 Pin Cable $5.53
$553current price $5.53Usb Charging Port Board For -055 With 12 Pin Cable

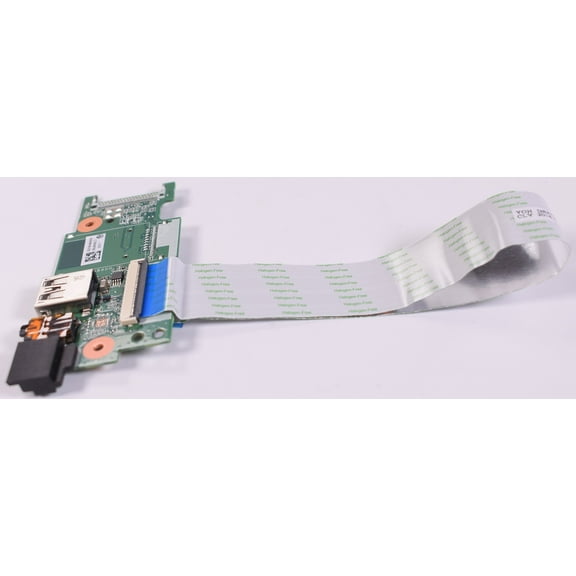

902960-001 Hp Usb Io Board 11-Y010NR $13.00
$1300current price $13.00902960-001 Hp Usb Io Board 11-Y010NR
Check out these related products

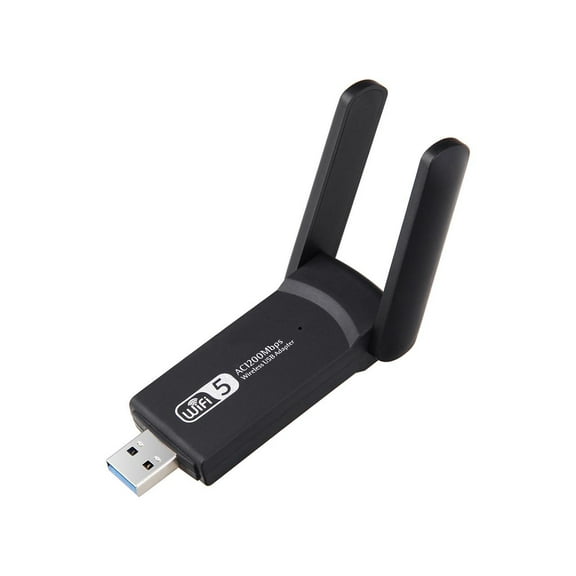

Wireless USB 3.0 Network Card 1200Mbps Dual Band WiFi Adapter $18.00
$1800current price $18.00Wireless USB 3.0 Network Card 1200Mbps Dual Band WiFi Adapter
Best seller Fenvi PCE-AX200 PCIE Wifi Adapter Dual Band Wireless AX3000 Desktop PCIE Wifi 6 Speed Bluetooth Card $20.59
Best seller
$2059current price $20.59Fenvi PCE-AX200 PCIE Wifi Adapter Dual Band Wireless AX3000 Desktop PCIE Wifi 6 Speed Bluetooth Card
464.6 out of 5 Stars. 46 reviewsSimyoung 300Mbps Mini USB Wireless WiFi Adapter 802.11n/g/b LAN Internet Network Adapter $11.99
$1199current price $11.99Simyoung 300Mbps Mini USB Wireless WiFi Adapter 802.11n/g/b LAN Internet Network Adapter
54.4 out of 5 Stars. 5 reviewsRIWPKFH Dual Band 600Mbps USB wifi Adapter 2.4GHz 5GHz WiFi with Antenna PC Mini Computer Network Card Receiver $37.99
$3799current price $37.99RIWPKFH Dual Band 600Mbps USB wifi Adapter 2.4GHz 5GHz WiFi with Antenna PC Mini Computer Network Card Receiver

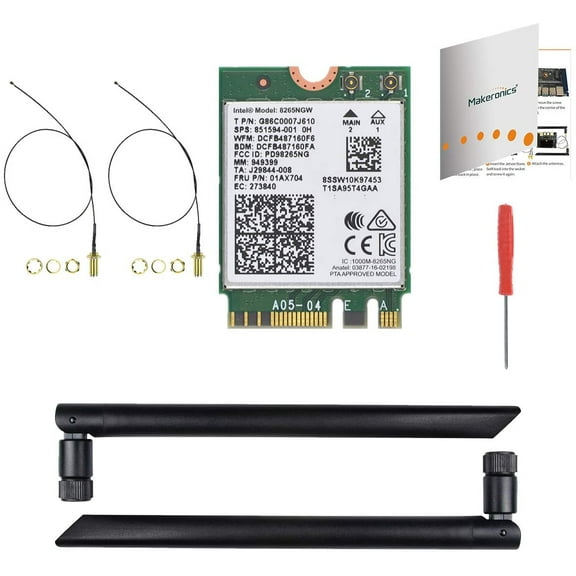

Makeronics Jetson Nano 8265AC/8265NGW Wireless NIC Module M.2 NGFF Support 2.4GHz / 5GHz 300Mbps / 867Mbps Dual Band WiFi and Bluetooth 4.2 | Assembly Instruction Included $38.50
$3850current price $38.50Makeronics Jetson Nano 8265AC/8265NGW Wireless NIC Module M.2 NGFF Support 2.4GHz / 5GHz 300Mbps / 867Mbps Dual Band WiFi and Bluetooth 4.2 | Assembly Instruction Included
Deal4GO AX201NGW 1650i 802.11ax 2.4Gbps M.2 CNVio2 KEY-E Wireless WiFi Adapter w/ Bluetooth 5.0 Combo WLAN card for Intel AX201 Windows 10 64-bit $24.49
$2449current price $24.49Deal4GO AX201NGW 1650i 802.11ax 2.4Gbps M.2 CNVio2 KEY-E Wireless WiFi Adapter w/ Bluetooth 5.0 Combo WLAN card for Intel AX201 Windows 10 64-bit
HighZer0 Electronics BE201 WiFi 7 Card | Tri-Band Wi-Fi | Up to 5.8 Gbps | CNVio3 M.2 Wifi Card for PC | Supports Bluetooth 5.4 | Requires Intel 13th Gen CPU Windows 10/11, Linux | BE201NGW $18.49
$1849current price $18.49HighZer0 Electronics BE201 WiFi 7 Card | Tri-Band Wi-Fi | Up to 5.8 Gbps | CNVio3 M.2 Wifi Card for PC | Supports Bluetooth 5.4 | Requires Intel 13th Gen CPU Windows 10/11, Linux | BE201NGW

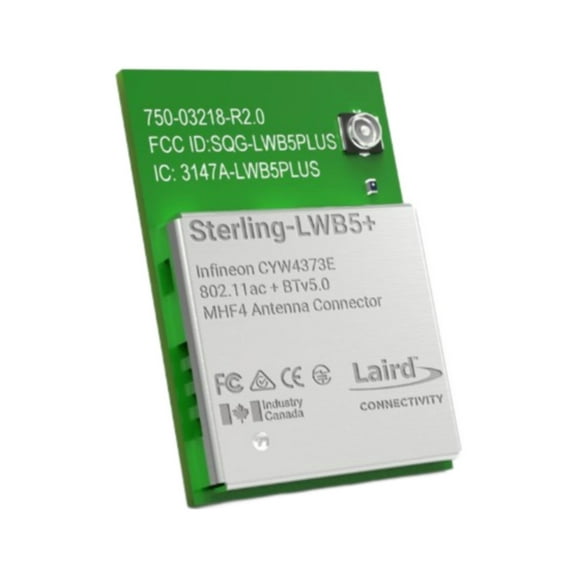

453-00046C Bluetooth, WiFi 802.11a/b/g/n/ac, Bluetooth v5.0 Transceiver Module 2.412GHz ~ 2.484GHz, 5.15GHz ~ 5.825GHz Antenna Not Included, I-PEX MHF4 Surface Mount $18.99
