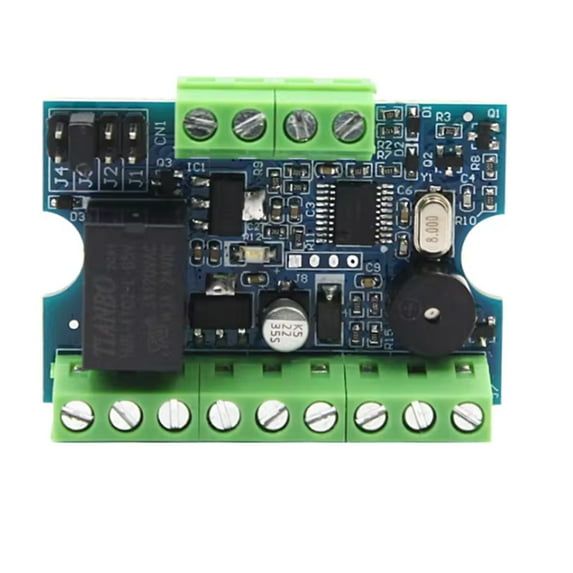

NEW Mini Access Control Board Lock Module Board Lock Module Relay Output Door Access Control System

This access control is standalone access control which designed for single door. Support 1000 users and could connect to external Wiegand 26-44 RFID reader or Touch memory reader.
It has two manager cards and could connect to any kinds of locks and exit button. Easy installation and operation.
Input voltage: DC12V±20%
Quiescent current: ≤17mA
Touch memory reader:DS1990A

Electric lock output current: ≤3A (Relay output)
User Capacity:1000
Unlock time: 1~128s
Manager cards: 2 cards
Communication distance to Wiegand reader: ≤100m
Communication distance to Touch memory reader: ≤15m
Operating temperature: -35~60℃
Max humidity: ≤90%,ROH
Colour:Blue
Material:plastic

Package Contents:
1 x Access Control Module

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
