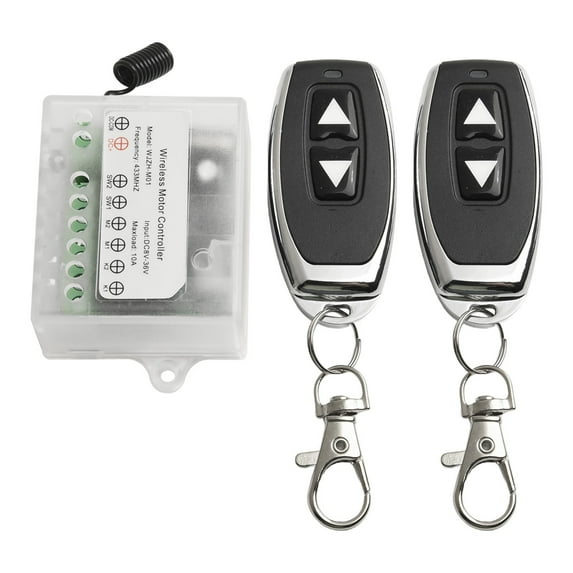

Motor Forward Reverse Relay Switch Rf Remote Control 433Mhz Wireless Frequency

Features:

*Remote control distance: the remote control adopts RF technology, stable signal. Signal of the wireless remote switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance, Max range is up to 10--30 meters with no obstacle

*Easy to use: You only need to install the switch on the corresponding device, and then you can remotely control the switch through the remote control

*Wireless Control: The remote control switch adopts 433Mhz wireless frequency, providing stable and reliable signal transmission for efficient motor control.

*Working mode: We send Momentary mode（ that is, press and hold the transmitter button “ up ”,motor forward；Release the button,motor stop. press and hold the transmitter button “ down ” ,motor Reverse. Release the button, motor stop )

*Main applications: This remote control switch can control electronic locks, motors (mainly used to control the forward and reverse rotation of DC motors), electric doors, electric actuators, linear actuators (forward and reverse) and so on

Specifications:

Part Name:Wireless motor cotroller

Material:Plastic, metal

Size:68*44*25mm (2.68*1.73*0.98inch)

Color:White, Black

Working voltage：DC8-36V

Quiescent condition: Less than 8mA

Working frequency: 433mhz

Max load: 10A (suggest motor load less than 5A)

Package Content:

1 x wireless motor cotroller

2 x remote Control switch

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
