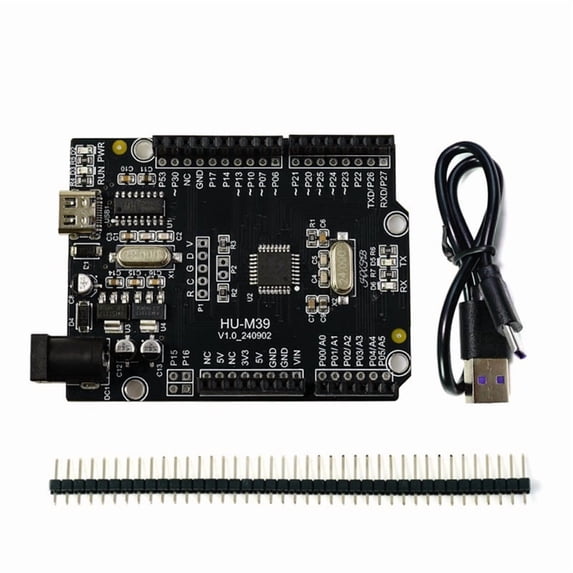

-M39 Graphical Programming Core Board Programming and Development Learning Smart Car Robot Development Board Module

1. A total of 24 pins: P00-P07, P10, P13-P17, P20-P27, P30, P53
2. Pins can be configured in input/output mode
3. Support 4WD car control (need to be used with motor driver board, not included)
4. Support 2-way infrared obstacle avoidance module, support 2-way infrared tracking module
5. Support 1-way ultrasonic module to achieve obstacle avoidance function
6. Support Bluetooth module, baud rate 9600bps
7. All pins support LED control, brightness is adjustable, LED is lit at low level
8. Support PS2 handle remote control
9. All pins support PWM control, duty cycle is adjustable
10. On board 2 LEDs , support user programming
11. Support infrared remote control
12. Support NRF24L01 wireless remote control
13. Up to 9 servos can be controlled
14. Support eight-degree-of-freedom quadruped robot dog
Power supply: DC7-12V
Programming software: graphical programming software
Different batches may result in variations in printing and silk-screen printing, but this does not affect usage
Color: Black
Material: PCB

Package Contents:
1 x Graphical programming core board
1 x data cable
1 x pin

Only the above package content, other products are not included.
Note: Light reflection and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
