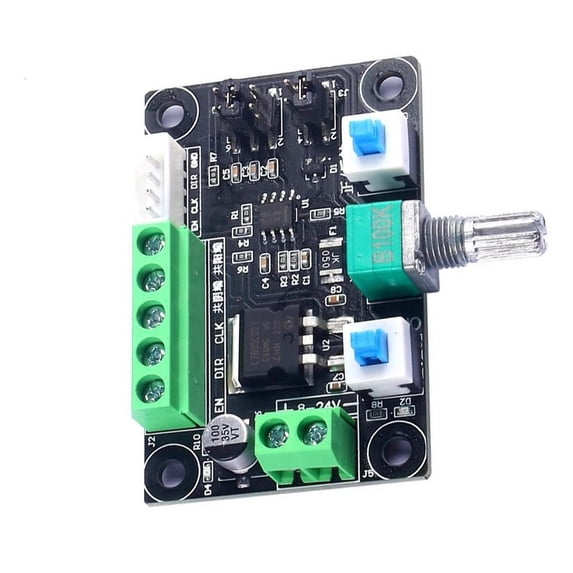

LAIQIEN Easy To Use Stepper Motor Controller Module For Speed Forward Reverse Control

Features:
Technical Specifications: The controller features three frequency signals: High (5.4kHz to 160kHz), Mediumed (540 Hz to 16kHz), and Low (80Hz to 2.4kHz).
User-Friendly: This straightforward configuration—controller + stepper driver + stepper motor + power supply—forms a simple control platform.
Highly Performances: Capable of generating pulses signals and adjustment signals, with selectable skip functionality.
Frequency Measurement: Measurement is possible via both the PUL port and the common (or common anode) port.
High Practicality: This module functions as a pulses generator, conveniently providing the stepper driver as the .
Usage Note: A driver must be fitted to control the stepper motor.

Specifications:
Product type: Stepper motor drive control
Component: Plastic
Size: Approximately 38.6x58mm/1.5x2.3inches.
Different stepper motor driver have different labels, but the functions are the same:
EN=ENA=enabled..
DIR=CW=CWW Direction
Connection of common anode (connector B).

Note:
Please allow 1-2cm errors due to manual measurement.
Please allow for slight color differences due to different display resolution.

Package includes:
1PC Host module
2PCS Connection cable (red and black, 20cm long)
1PC Chinese and English bilingual instruction manual
