Features:
*High Current Capacity: Supports up to 50A continuous current for reliable power handling in demanding applications.
*Wide Voltage Range: Operates efficiently with input voltages from 9V to 80V for versatile solar system integration.
*for for Ideal Diode Function: Prevents reverse current flow to protect solar panels and batteries from damage.
*Minimal Power Loss: Features minimal voltage drop to maximize energy efficiency and reduce heat generation.
*Compact Module Design: Easy to install in various setups with standard connections for quick deployment.
Specifications:

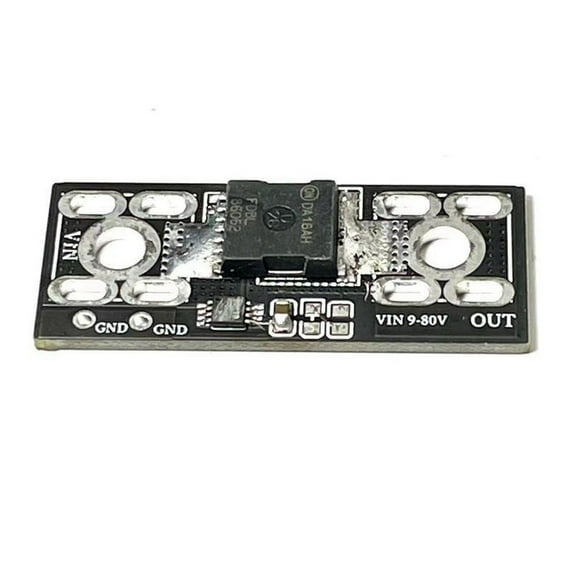

*Product Name:Diode module
*Material:abs
*Color:White,Black
*Size:44*18mm
Operating Voltage: 9-80V
Operating Current: 50A (Improved heat dissipation recommended for use above 25A)
Internal Operating Resistance: 2 milliohms
PCB Dimensions: 44*18mm
Weight: 12g/15g
100V/300A 2 milliohm high-current, low-resistance MOSFET
Note: The voltage drop is 0.04V. To measure input and output voltage drops, connect a 9V-80V power supply before measuring. The management IC will not operate without power input.
Package Content:
A:1* Module without binding posts (wire soldering required)
B:1* Module with binding posts
