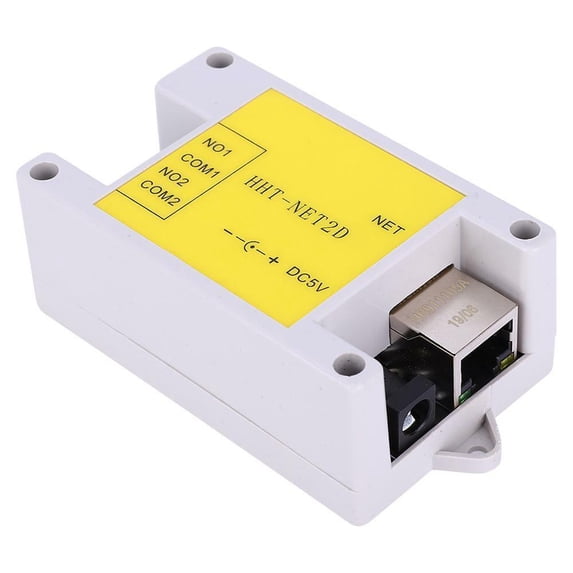

HHT-NET2D Ethernet IP 2-Channel Relay Board DelaySwitch Control Module

Features:
* Brand new and high quality
* Made of high quality materials, durable
* Supports working in TCP server, TCP client and UDP modes
* Works in TCP server mode and supports 4 client connections. Support MODBUS TCP protocol, support Kingview
* Support online update program, very convenient for customers to customize programs
* The device name can be and supports Chinese definition. There is no need to record cumbersome IP when there are many devices.
* User-defined heartbeat packet time, reliable network recovery
* High-performance 32-bit microcontroller using Cortex-M3 core, network chip W5500, hardware protocol
* 2-channel 10A relay controller, with normally open output and no normally closed output, can be used for smart home control. You can use mobile phones or computers to remotely control electrical equipment such as lights and motors.
* Provides C++ source for the host computer, reliable network connection, router disconnection and restart, reliable network connection recovery, and cross-gateway remote control
* This product is powered by 5V, has two relay normally open outputs, and has no normally closed output.

Specification:
Type: IP network relay module
Power supply voltage: 5V
Current: not less than 1A
The single function power of the two-way relay can reach 2KW, the AC load rated voltage is 250V, the current is 10A, the DC load rated voltage is 30V, the current is 5A
Dimensions: approx. 81 x 50 x 31mm/3.2 x 2 x 1.2 inches
Working temperature: -40℃ to 80℃.
application:
1. Can be used for smart home control, controlling router restart after disconnection, etc.
2. Mobile phones or computers can be used to remotely control electrical equipment such as lights and motors.
3. It can be used for power outage detection in computer rooms, and can be connected to human body infrared sensors, key switches, and smoke alarm outputs.
4. Can be used for access control, computer control, and electrical remote control
5. Can be connected to smoke alarm output and human body infrared output
6. It can be connected to a key switch, any passive switch input, or an active switch input (5V active switch input).
7. It can be controlled by external network or remotely controlled by mobile phone.
Control instruction:
Send: on1 turns on the first relay
Send: off1 to turn off the first relay; the second control method is the same.
Send: read1 means reading the status of the first relay. If on1 is returned, it means the first relay is on, off1 means the first relay is off.
Delay control, e.g.
Send: on1:02 to indicate that the relay will open in 2 seconds, and send on:12 to indicate that the relay will open in 12 seconds. The maximum delay is 99 seconds.
For MODBUS TCP
1.01 opcode
This opcode reads the status of the relay. The relay address for the first channel is 0010 and the relay address for the second channel is 0011.
2.05 opcode
This opcode controls a single relay. The relay address for the first channel is 0010 and the relay address for the second channel is 0011.
3. 0F opcode
This operation code controls two relays. The relay addresses are: No.0010, No.0011.

Package Included:
1 x IP network relay module (with housing）

Note:
1.The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2.Please allow slight manual measurement deviation for the data.
