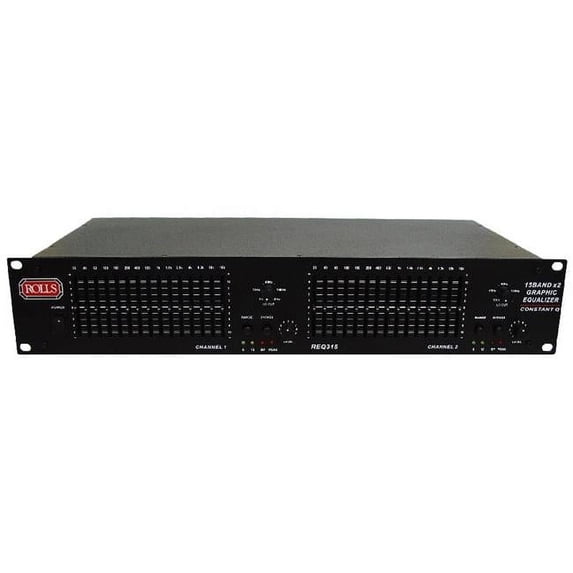

The is a two channel graphic equalizer utilizing constant Q filtering. The unit is designed for the sound professional that requires precise sound shaping control. All filters are true constant "Q" type, with no broadening near the "flat" setting. High slew-rate circuitry throughout the signal path results in clean, quiet, transparent sound.
Two channels with 15 bands of constant Q equalization each.
XLR and 1/4" inputs and outputs.
Low cut filters.
6/12 dB Boost/Cut Range switch.
Passive bypass.
Specifications:
Equalizer:
Channels: 2.
Bands: 15.
Frequency Response: 20Hz - 20kHz.
Accuracy: 5% Center Frequency.
Range: +6dB or +12 dB (Switch selectable).
Inputs:
Type: Active Balanced/Unbalanced.
Connectors: XLR, 1/4" TRS.
Impedance: 12k Ohms.
Maximum Level +22 dB (Balanced), +15dB (Unbalanced).
Outputs:
Type: Electronically Balanced.
Connectors: XLR, 1/4" TRS.
Impedance: 600 Ohms.
Maximum Level: +22 dB (Balanced), +15dB (Unbalanced).
RFI Filters: Yes.
Passive Bypass Switches: Yes.
Overload LED Threshold: 3dB below clipping.
Low Cut Filter: 10 - 250Hz, 12dB/Octave.
Frequency Response: 20Hz - 20kHz, +0.5dB.
THD + Noise: 0.01% (20Hz - 40kHz).
S/N Ratio: 110dB below Max level (A weighted).
Equivalent Input Noise: -95dB (20kHz noise bandwidth).
Dimensions: 3.5"H x 19"W x 8.5"D.- SKU: ZX9TBALL12004
