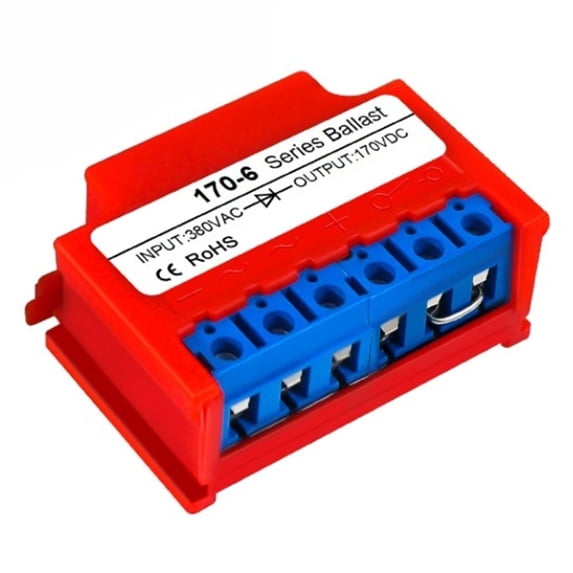

Fast Brake Motor Rectifier Module Rectifier Unit Zlks1-170-6 Brake Power Module

Features:

*Compact Design: The ZLKS1-170-6 rectifier module boasts a compact size of 52.6*38mm, making it easy to install directly within the motor's terminal box, optimizing space and efficiency in various applications.

*Enhanced Protection: This module includes advanced input and output protection circuits,  safe operation during high-frequency use with inductive components such as brakes, reducing the risk of damage.

*Versatile Voltage Range: With an input voltage range of 220V-380V and an output voltage of DC 99-170V, it is adaptable to different motor specifications, making it suitable for diverse operational environments.

*FOR  for Rapid Recovery Time: Featuring a reverse recovery time of just 10ns, this rectifier module provides quick response capabilities, enhancing performance in fast braking applications and improving overall system efficiency.

*Wide Operating Temperature: Designed to function effectively in a temperature range from -20°C to 80°C, the ZLKS1-170-6 ensures reliable operation under varying environmental conditions, contributing to its durability and longevity.

Specifications:

*Part Name: Fast Brake Motor Rectifier Module

*Material:PBT

*Size:52.6*38mm

*Color:red，black

*Model: ZLKS1-170-6
*Maximum Reverse Voltage (Vr): 1000V
*Average Rectified Current (Io)mA: 2A
*Reverse Recovery Time (trr)ns: 10ns
*Speed: 220V
*Forward Voltage (Vf/If): 380V
*Operating Temperature Range: -20°C to 80°C

Package Content:

1*Fast Brake Motor Rectifier Module

Note:

1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
