Control DC10G Engine Manual Start Controller Generator Controller Control Panel Module Generator Parts Specification: DC10G is a controller for manually starting and stopping the engine.Through 4-bit LED digital tube display generator frequency, voltage, battery voltage, cumulative working time, with a variety of stop and alarm indicator function, it can conveniently monitor the working state of generator set.The controller can be connected to the computer through the data line, and the parameters of the controller can be set by software, which is convenient to match the more specifications of the generator set.
Features:
1. Using 32-bit imported high-performance single chip microcomputer control.
2. 4-bit digital tube display, can be switched automatically or manually.
3. The vehicle starting key is .
4. With parameter setting function, you can set parameters through computer connection.
5. It has a variety of alarm functions.
6. Standard waterproof . The rear panel has anti- function.

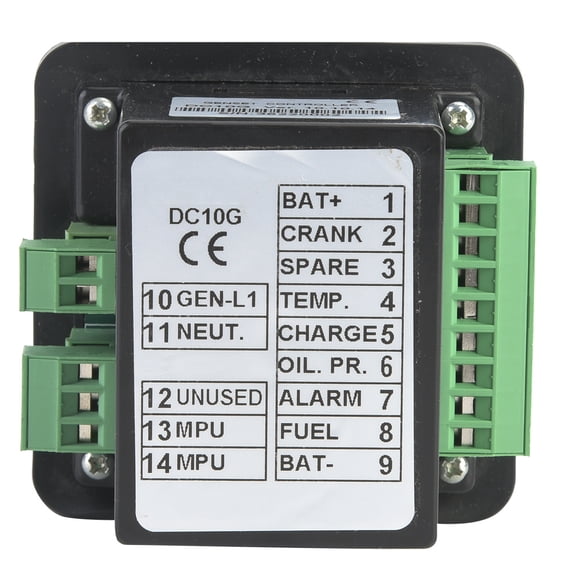

7. All the wiring is completed through the European terminal. The assembly, connection, maintenance and replacement of the equipment is very easy and convenient.
Parameter display:
Generator voltage
Generator frequency
Engine battery voltage
Cumulative running time of the unit
Alarm
Speeding
Overclocking
Low oil pressure
High water temperature
External parking alarm
Power generation overvoltage
Charging failure warning
Specification:
Condition: 100%
Item Type: Engine Manual Start Controller
Power input:8-33 VDC
Power consumption: 2W
Power generation input:15-300 VAC,50/60 Hz
Speed input: Freq 300Hz ~ 10kHz
Oil valve output: 16A
Motor output: 10A
Excitation output: 80mA
Alarm output: 16A
Operating temperature:-30-75 degrees Celsius
Storage temperature:-40-85 degrees Celsius
: Approx. 78 x 78 x 72mm / 3.1 x 3.1 x 2.8in
Opening Hole Size: Approx. 67 x 67mm / 2.6 x 2.6in
Package List:
1 x Controller
2 x Key
2 x Fixing screw
Note:
1. Please allow slight error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from the real object. Please take the real one as standard.
"
