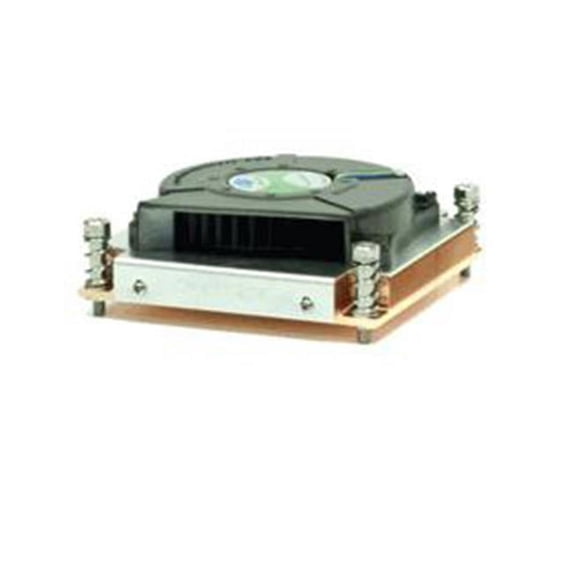

Dynatron R18 Intel Sandy Bridge 1U Server Active CPU Cooler

The Dynatron R18 Intel Sandy Bridge 1U Server Active CPU Cooler is CPU Cooler is specially designed for Intel Sandy Bridge EP/EX Processors. This cooler has a full copper base for superior performance, and uses the screw type mounting for solid installation. The R18 supports up to 95 watts of cooling dissipation.

Copper Base.

Skive Fin Design.

Screw Type Hold Down.

Energy Saving PMW.

ROHS Compliant.

CPU Socket: 2011.

CPU Support: Intel Sandy Bridge EP/EX Processors.

Solution: 1U Solution.

Overall Dimension: 90.0 x 90.0 x 27.7 mm.

Weight: 480 g.

Material: Copper Heatsink with Skiving Fins.

Fan Dimension: 80 x 80 x 15 mm.

Speed:

At Duty Cycle 20%- 1000 RPM.

At Duty Cycle 50%- 3500 RPM.

At Duty Cycle 100%- 6000 RPM.

Bearing: 2 Ball Bearing.

Rated Voltage: 12 V.

Power:

At Duty Cycle 20%- 0.6 W.

At Duty Cycle 50%- 3.84 W.

At Duty Cycle 100%- 14.4 W.

Air Flow:.

At Duty Cycle 50%- 11.2 CFM.

At Duty Cycle 100%- 19.1 CFM.

Noise Level:

At Duty Cycle 20%- 21.5 dBA.

At Duty Cycle 50%- 43.0 dBA.

At Duty Cycle 100%- 55.8 dBA.

Air Pressure:

At Duty Cycle 20%- 2.27 mm-H2O.

At Duty Cycle 50%- 18.56 mm-H2O.

At Duty Cycle 100%- 54.5 mm-H2O.

Lead Wire Pin Out:

Pin1- (-).- SKU: asi7452
