DCF77 Receiver Module Radio Time Module Radio Clock Radio Module Antenna B

describe:

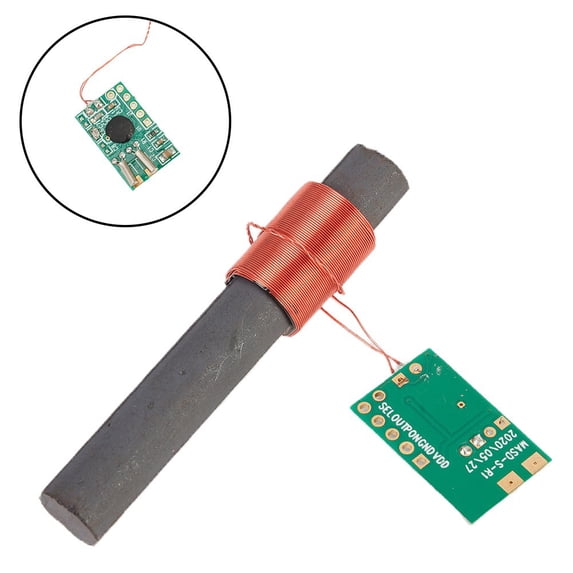

DCF receiver module with DCF antenna tuned to time signal transmitter DCF77 ( for Frankfurt 77.5 kHz). The antenna induction signal is sent to the IC for amplification, demodulation, and then identified by the MCU, so that the date and time of the timing center can be completely consistent.

Below you will find important setup and circuit diagrams.

Technical Specifications

DCF---77.5KHZ single frequency specification:

Product number: DCF-1060N-03A

RCCM category: DCF/77.5KHz single frequency module

PCB size: 25.0x11.5x1.0mm/FR4

Antenna size: AR10x60mm/High Q

Nominal frequency: 77.5KHz±300Hz

Sensitivity: 27±2dB

Receiving IC: CME6005

for JJY-40/60KHZ dual frequency specification

Product number: for JJY-1060N-MAS

RCCM category: for JJY/40+60KHz dual frequency module

PCB size: 22.0x13.5x1.0mm/FR4

Antenna size: AR10x60mm/High Q

Nominal frequency: 40/60KHz±300Hz

Sensitivity: 40/60K:30/28±2dB

Receiving IC: MAS6181B

    • Operating voltage: 1.1...3.3 V

    • Current consumption: 85 µA max

    • Receiving frequency: 77.5 KHz

    • Board size (without antenna) LxWxH: 22x13.5x1 mm

    • Antenna quality: LxØ: 60x10mm

    • Scope of delivery: 1 piece

       ⇒ DCF receiver module with antenna

    • connect:

       ⇒ Ground = Pin

       ⇒ Operating Voltage = Pin

       ⇒ data = pin T

       ⇒ Power On/Off = Pin P1

⇒ 40/60K frequency selection = for SEL

      ⇒AGC(Note 4: Optional Control for AGC On/Hold

AON control pin has internal pull up which turns AGC circuit on all the time if AON pin is left unconnected.

Optionally AON control can be used to hold and release AGC circuit. Stepper motor drive of analog clock or

watch can produce disturbing amount of noise which can shift the input gain to non optimal level. This

can be avoided by controlling AGC hold (AON=VSS) during stepper motor drive periods and releasing AGC

(AON=VDD) when motors are not driven. The AGC should be in hold only during disturbances and kept on other

time released since due to leakage the AGC can still change slowly when in hold.)

    • Important note:

       ⇒ PIN P1 is an on/off switch and must be set to logic low.

Note: Single-frequency modules cannot be switched between different frequencies of DCF/WVB/HBG/BPC, for JJY dual-frequency modules can be switched between 40K/60K two frequencies, to make a certain single-frequency module, only can receive signals in this frequency band.

Package Included:

1*Receiver module
