Active RF Isolation Distributor High-Performance Module for RF Signal Distribution Isolation

Features:
Active RF isolation distributor is a module that distributes RF signals into multiple paths, its built-in high-temperature lithium battery power supply,
Without external power supply can work continuously for more than 3 days,
Active RF isolation distributor working frequency range: 100kHz to 150MHz, insertion loss is less than 0.8dB, the isolation between the output to the input is better than 80dB,
And the isolation between the outputs is better than 60dB, the input has an Isolator, can effectively inhibit common mode interference and power supply ground interference,
Input 1 output 4 impedance are 50 ohm signal, can be widely used in RF signals, radio antennas, SDR, clock source, GPSDO, signal source and other equipment output distribution isolation.

Specifications:
Material: Aluminium Alloy
Battery: 600 mAh Battery Inside
Operating Frequency Range: 100kHz to 150MHz
Applied in the output distribution isolation of RF signal, radio antenna, SDR, clock source, GPSDO, signal source and other devices.

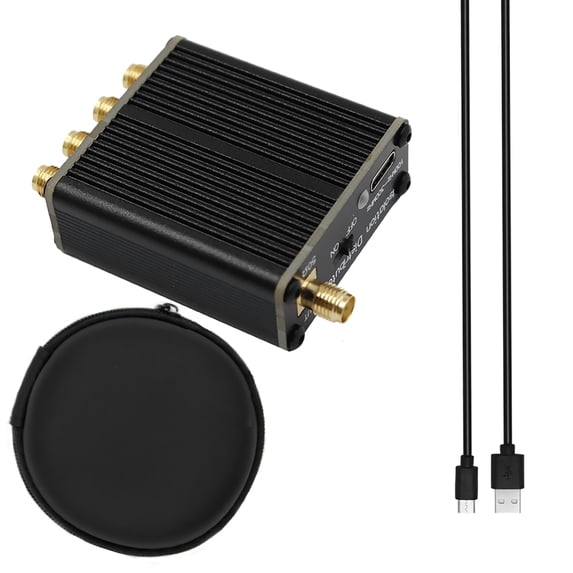

Package Includes:
1*Distributor
1*Type-c data cable
1*Storage bag
