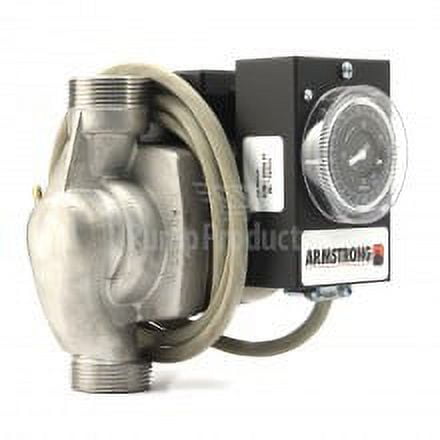

Armstrong 110223B-140, Model ASTRO 220SSU050S-TA, Stainless Steel Hot Water Recirculation Pump With Timer, Aquastat and Cord, 1/25 HP, 115 Volts, 1/2" Sweat Connection, 0-9 GPM
Key item features
- System components are compact, rugged, quiet and reliable
- Stainless steel pump casing
- Ceramic pump shaft and bearings
- For indoor use only
- Meets building code requirements (where applicable)
- Maximum working pressure: 150 psi
- Maximum water temperature: 230°F
- Maximum head: 5.5 ft
- Maximum flow: 9 gpm
- Aquastat signals circulator to operate only when the water has cooled
- Low temperature switchpoint*: 85°F ± 10%
- High temperature switchpoint*: 105°F ± 10%
- Timer ensures availability of hot water when needed
- 12 hour analog clock with am/pm indication
- 3 position slide switch: On / Off / Auto
- 6 ft power cord, molded duplex plug with ground
- Complies with section 116875 at the California Health and Safety/Code and Vermont Act 193 (Lead content of wetted surface is 0.25% or less)
- High/low temperature switchpoints are as measured on pipe surface with the Aquastat
- Note: This item replaces obsolete Model# 20B050S-TA (Part# 110123-140).
Specs
- Gallons per minute9 GPM
- Horsepower0.04 HP
- Plumbing pump typeRecirculation Pump
- Power typeBattery
- BrandArmstrong
- FeaturesCompact
(Only one option can be selected at a time)
More seller options (1)
Similar items you might like
Based on what customers bought
Bell & Gossett Series PL PL-45 1/6 HP 115V 50 GPM Maintenance Free Cast Iron Circulator Pump - 1BL002 $863.00 Was $930.00
$86300current price $863.00, Was $930.00$930.00Bell & Gossett Series PL PL-45 1/6 HP 115V 50 GPM Maintenance Free Cast Iron Circulator Pump - 1BL002
25 out of 5 Stars. 2 reviewsSimer 4075SS01 0.75 HP Stainless Steel Water Pressure Booster Home Faucet Pump $580.00 Was $620.99
$58000current price $580.00, Was $620.99$620.99Simer 4075SS01 0.75 HP Stainless Steel Water Pressure Booster Home Faucet Pump
65 out of 5 Stars. 6 reviewsDayton Bronze/Brass 1/2 HP Centrifugal Pump 115/230V 2ZWR5 $1,116.84 Was $1,261.99
$1,11684current price $1,116.84, Was $1,261.99$1,261.99Dayton Bronze/Brass 1/2 HP Centrifugal Pump 115/230V 2ZWR5
Flotec FP4432-01 Vertical Deep Well Jet Pump 1 HP $995.92
$99592current price $995.92Flotec FP4432-01 Vertical Deep Well Jet Pump 1 HP
73.7 out of 5 Stars. 7 reviews3 Hp Vertical Multi-Stage Centrifugal Pump 220V 3Phase, 8.8 Gpm, 128 Meter Head, Shimge-USA BL(T)2-11-2.2 $715.00
$71500current price $715.003 Hp Vertical Multi-Stage Centrifugal Pump 220V 3Phase, 8.8 Gpm, 128 Meter Head, Shimge-USA BL(T)2-11-2.2
Mini Water Pump, 5 V Self-Priming Water Pump, Small USB-Powered Vacuum Pump, Electric Water Pump (1 Metre) $11.99
$1199current price $11.99Mini Water Pump, 5 V Self-Priming Water Pump, Small USB-Powered Vacuum Pump, Electric Water Pump (1 Metre)
Armstrong Pumps Impeller,In-Line,Noryl,3 22/25" OD 816305-328K $413.65
$41365current price $413.65Armstrong Pumps Impeller,In-Line,Noryl,3 22/25" OD 816305-328K
Dayton Motor, Drum Pump,110 Volt,GPM 32 1DLK8 $1,006.64 $1006.64/1
$1,00664current price $1,006.64$1006.64/1Dayton Motor, Drum Pump,110 Volt,GPM 32 1DLK8
Reduced price Efurden Gas Powered Water Pump, 2 inches 7HP 4-stroke Portable Irrigation Pump, 135 GPM Water Transfer Pump, EPA Certified $189.99 Was $219.99
Reduced price
$18999current price $189.99, Was $219.99$219.99Efurden Gas Powered Water Pump, 2 inches 7HP 4-stroke Portable Irrigation Pump, 135 GPM Water Transfer Pump, EPA Certified
175 out of 5 Stars. 17 reviewsDayton Liquid Operated,Cast Iron, Jet 5NAN6 $1,230.71 Was $1,354.99
$1,23071current price $1,230.71, Was $1,354.99$1,354.99Dayton Liquid Operated,Cast Iron, Jet 5NAN6
220V Food Grade Centrifugal Sanitary Pump 10 Ton/h 304 Stainless steel $839.00
$83900current price $839.00220V Food Grade Centrifugal Sanitary Pump 10 Ton/h 304 Stainless steel
BFQ-25P 1 Inch AODD Stainless Steel Pneumatic Pumps, Oil Sewage Transport Pump Air Operated Double Diaphragm Pump ,Durable Construction $967.47
$96747current price $967.47BFQ-25P 1 Inch AODD Stainless Steel Pneumatic Pumps, Oil Sewage Transport Pump Air Operated Double Diaphragm Pump ,Durable Construction
Armstrong Pumps 182202-652 ARMflo E11.2B Bronze Circulator, 0-45 GPM Flow, replacement for 180200-652 $1,106.30
$1,10630current price $1,106.30Armstrong Pumps 182202-652 ARMflo E11.2B Bronze Circulator, 0-45 GPM Flow, replacement for 180200-652
Ryhampaper Mini Electric Drill Drive Self Priming Water Pumps Portable Hand Drill Powered Oil Fluid Transfer Pumps Tools $9.59
$959current price $9.59Ryhampaper Mini Electric Drill Drive Self Priming Water Pumps Portable Hand Drill Powered Oil Fluid Transfer Pumps Tools
3 Hp Vertical Multi-Stage Centrifugal Pump 220V 3Phase, 35.2 Gpm, 40 Meter Head, Shimge-USA BL(T)8-3-2.2 $675.00
$67500current price $675.003 Hp Vertical Multi-Stage Centrifugal Pump 220V 3Phase, 35.2 Gpm, 40 Meter Head, Shimge-USA BL(T)8-3-2.2
Mini DC 6V to 12V R385 Water cooled Water Pump Air Diaphragm Pump EK1856 $10.68 Was $12.99
$1068current price $10.68, Was $12.99$12.99Mini DC 6V to 12V R385 Water cooled Water Pump Air Diaphragm Pump EK1856
Armstrong Pumps 182202-651 ARMflo E11.2 Cast Iron Circulator, 0-45 GPM Flow, replacement for 180200-651 $402.05
$40205current price $402.05Armstrong Pumps 182202-651 ARMflo E11.2 Cast Iron Circulator, 0-45 GPM Flow, replacement for 180200-651
Fluid-O-Tech Pump,1/2" NPTF,327 Max. GPH,Brass,Bypass PA 1001 $200.61
$20061current price $200.61Fluid-O-Tech Pump,1/2" NPTF,327 Max. GPH,Brass,Bypass PA 1001
196CC 4L/1.06gal Water Pump Diesel Powered 3600rpm Water Transfer Pump W/ 7.5m Water Pipe $377.06
$37706current price $377.06196CC 4L/1.06gal Water Pump Diesel Powered 3600rpm Water Transfer Pump W/ 7.5m Water Pipe
WINDLAND 900L/H High Flow 12V/24V Water Pump Powerful Pump Perfect for Water Circulation $17.64
$1764current price $17.64WINDLAND 900L/H High Flow 12V/24V Water Pump Powerful Pump Perfect for Water Circulation
15 out of 5 Stars. 1 reviews
About this item
Product details
Armstrong ASTRO 220SSU050S-TA Hot Water Recirculation Pump
This pump is designed for dedicated return in three-pipe plumbing installations. It automatically circulates water through domestic water pipes. This ensures that hot water is available instantly at every tap throughout a residence. Whit this recirculation pump, far less water is wasted each time a hot water faucet is opened. It saves an average of 12,000 gallons of water annually for a typical four-person household. This model is equipped with an Aquastat, which enables operation only when the sensed water temperature is below 85°F (25°C). Once activated, the circulator operates until either the water temperature reaches 105°F (41°C), or the current timed activation period ends. The pump is controlled by a 24 hour timer which allows homeowners to schedule delivery of hot water in 15 minute increments throughout the day. This model comes assembled, wired, tested and ready for installation. No electrician required for installation!
Includes:
- Stainless steel circulator pump
- Clock/timer
- Aquastat
- 6 feet line cord
- System components are compact, rugged, quiet and reliable
- Stainless steel pump casing
- Ceramic pump shaft and bearings
- For indoor use only
- Meets building code requirements (where applicable)
- Maximum working pressure: 150 psi
- Maximum water temperature: 230°F
- Maximum head: 5.5 ft
- Maximum flow: 9 gpm
- Aquastat signals circulator to operate only when the water has cooled
- Low temperature switchpoint*: 85°F ± 10%
- High temperature switchpoint*: 105°F ± 10%
- Timer ensures availability of hot water when needed
- 12 hour analog clock with am/pm indication
- 3 position slide switch: On / Off / Auto
- 6 ft power cord, molded duplex plug with ground
- Complies with section 116875 at the California Health and Safety/Code and Vermont Act 193 (Lead content of wetted surface is 0.25% or less)
- High/low temperature switchpoints are as measured on pipe surface with the Aquastat
- Note: This item replaces obsolete Model# 20B050S-TA (Part# 110123-140).
